Leshiy 2 · Spare Parts: New Forward Plug LSA242200

€19,90

Description

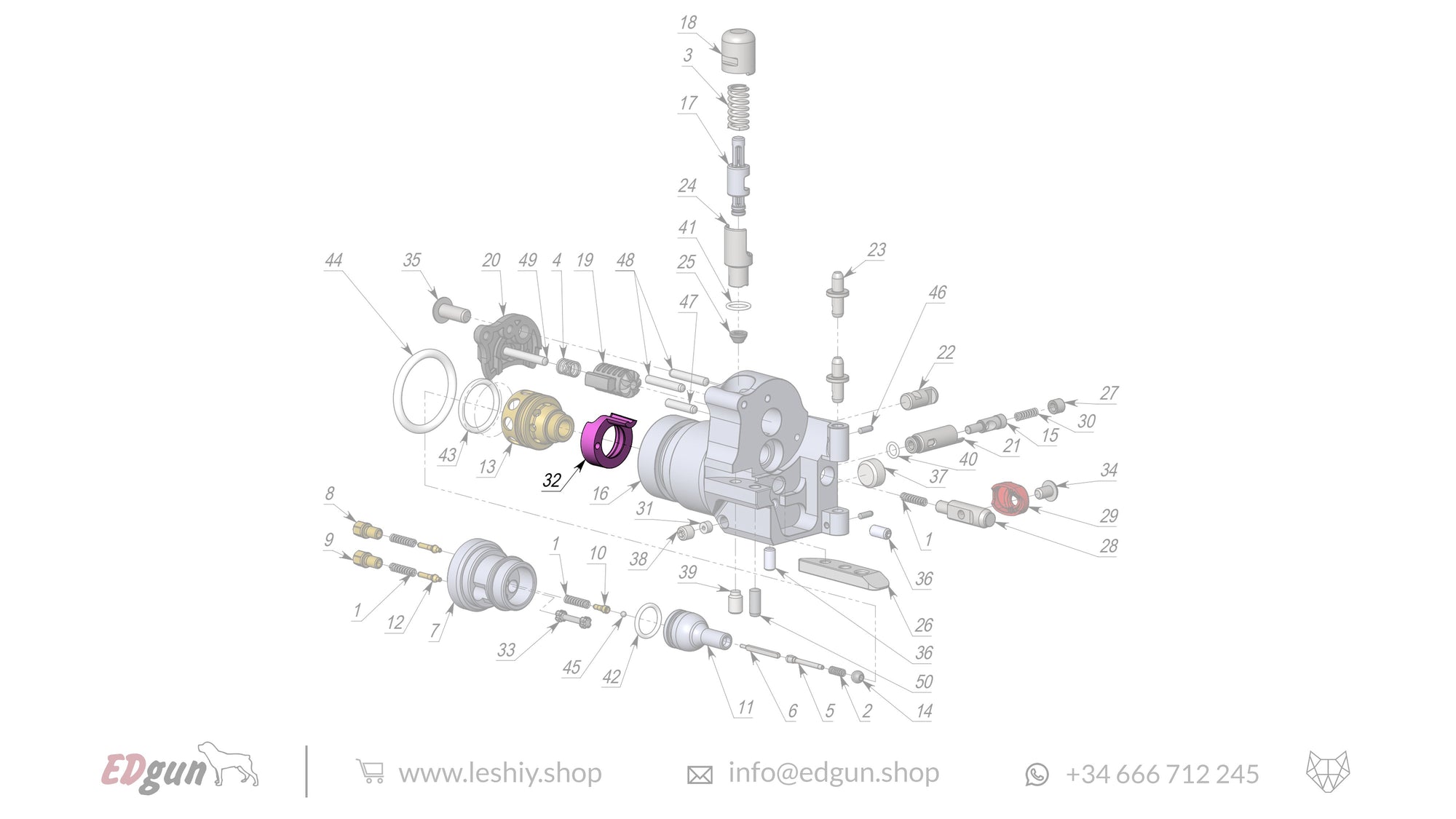

Please note that part 32 is not compatible with the previous generation of the forward plug.

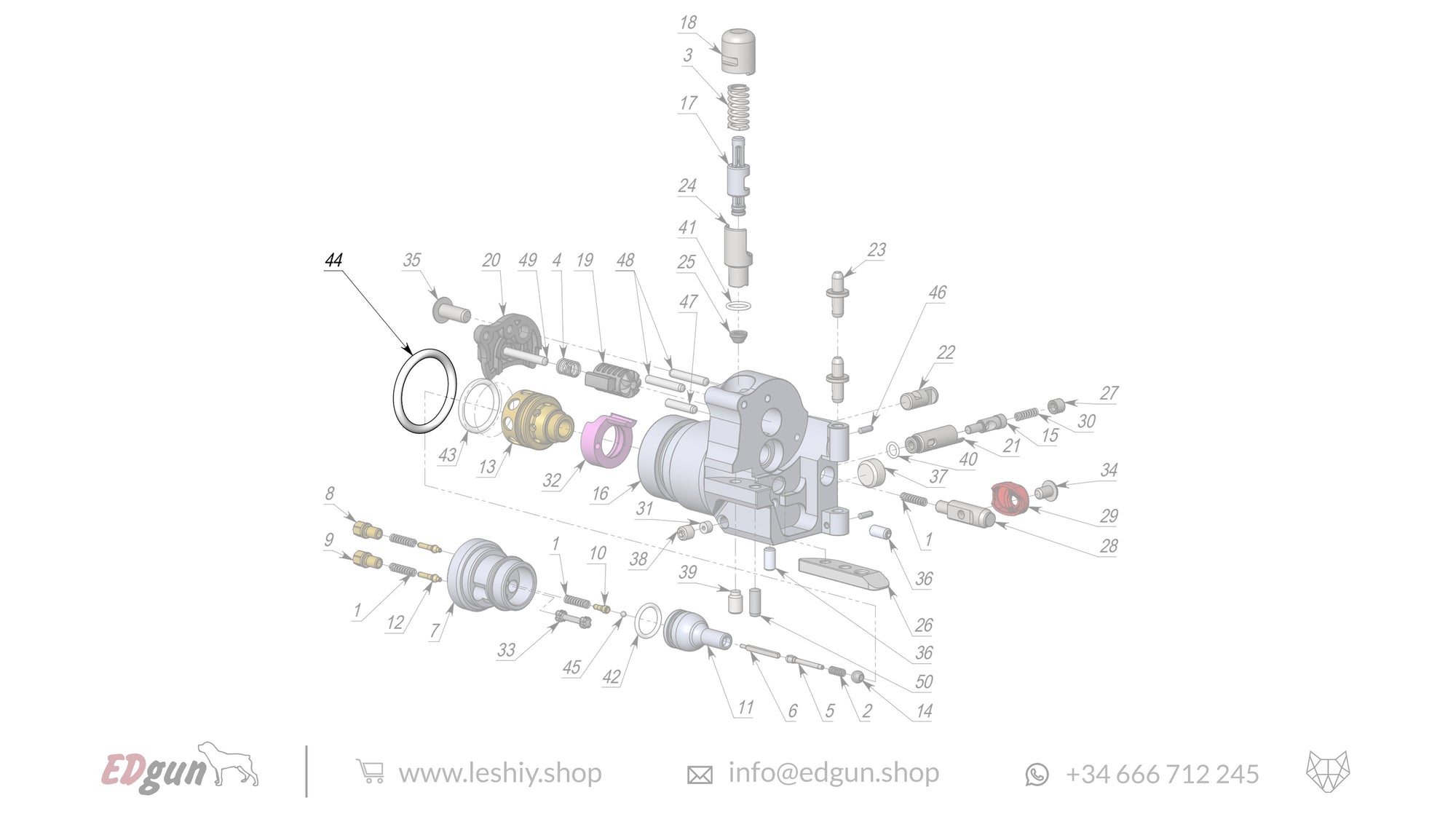

References

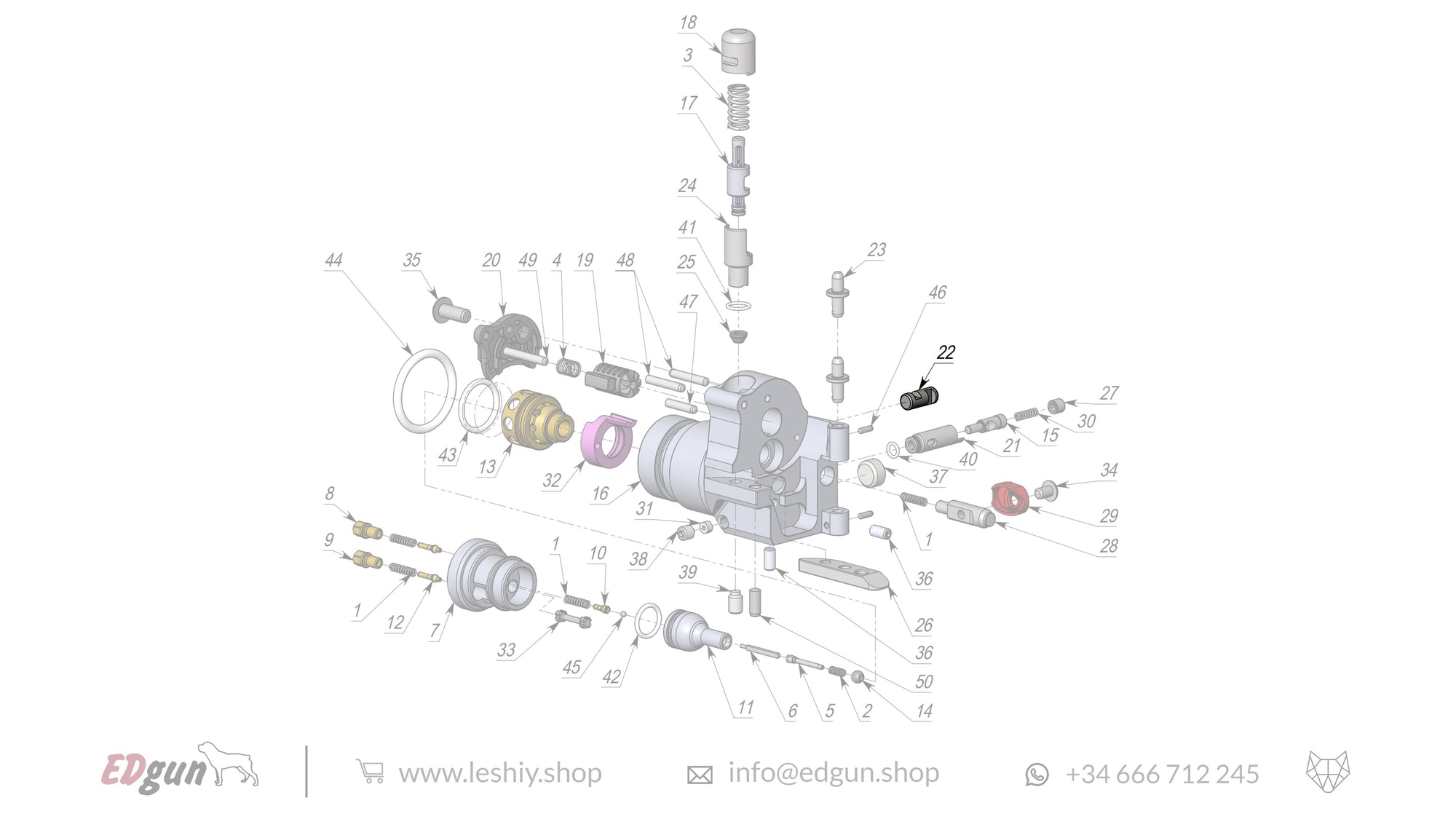

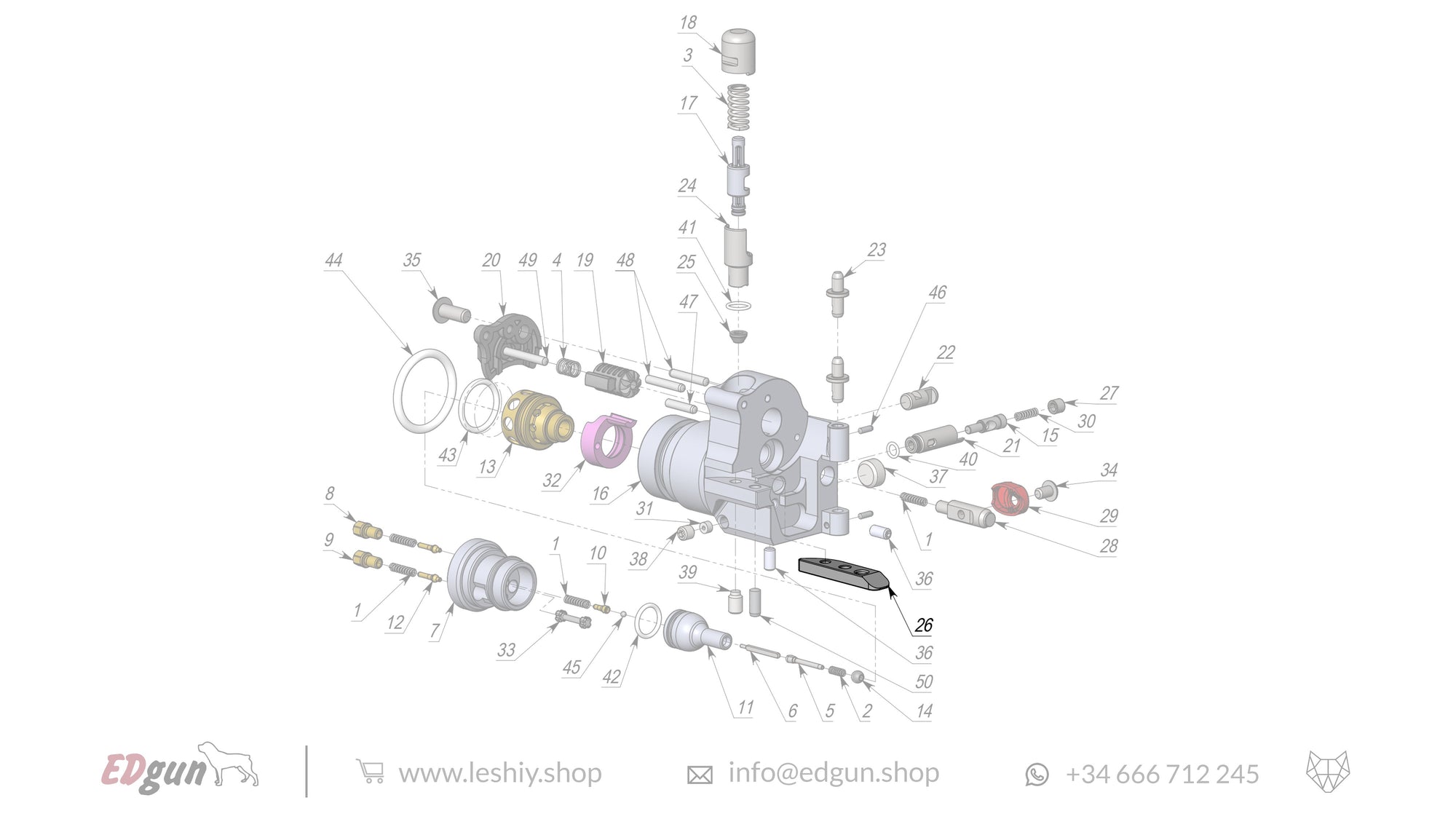

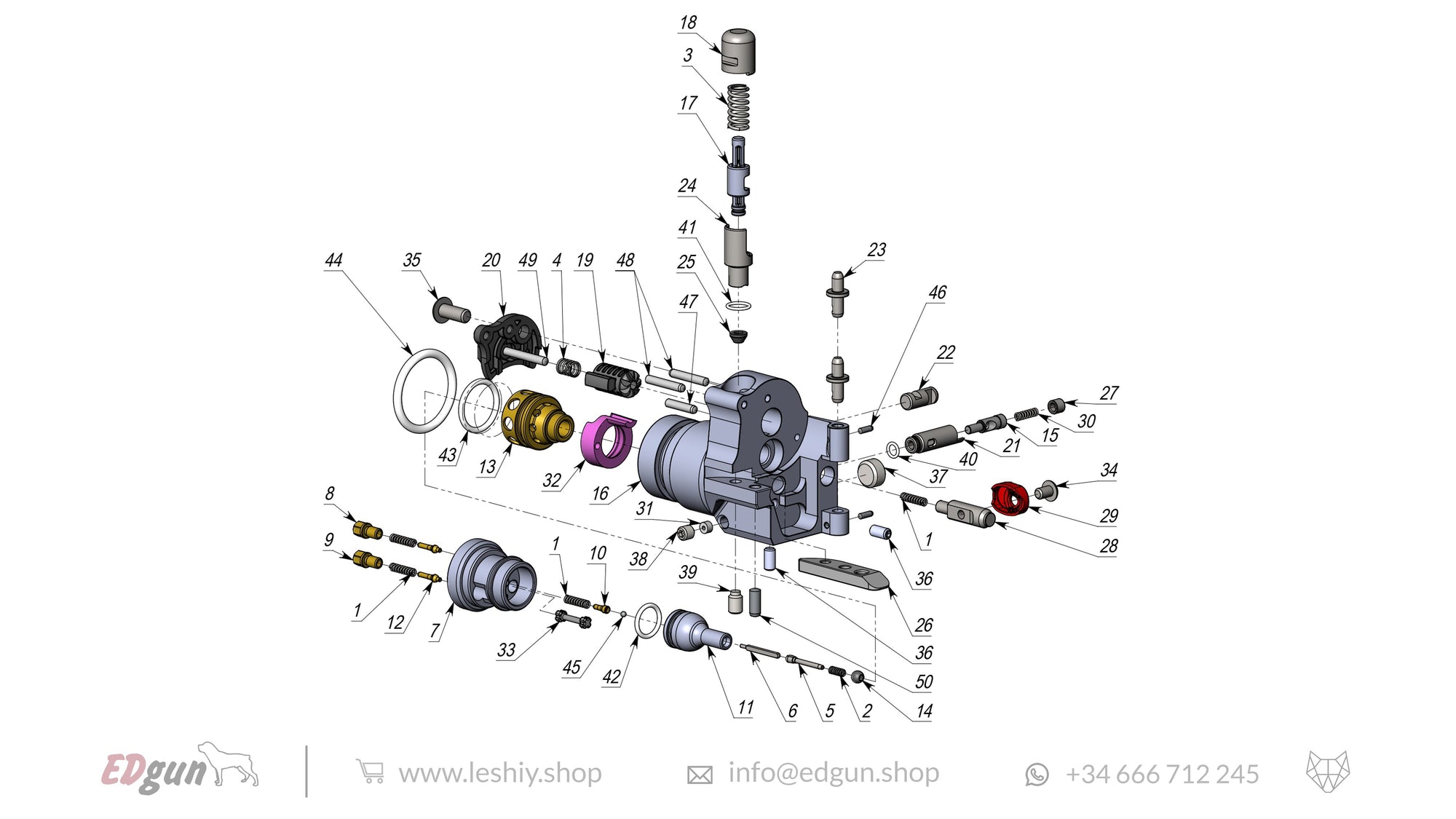

COMPLETE FORWARD PLUG 26- Lock - LSA242214 (x1)

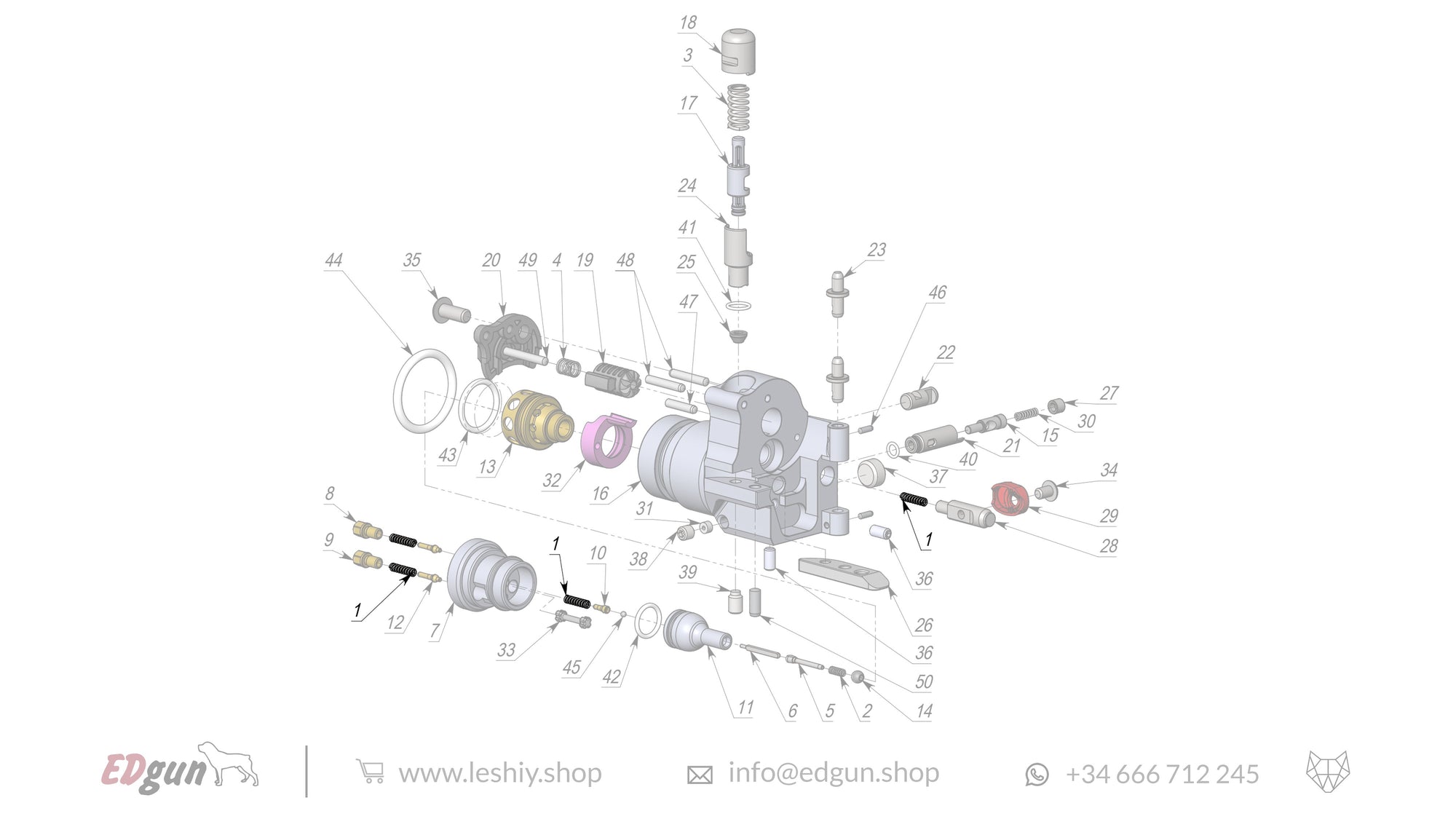

1- Spring - LSA101008 (x4) 27- Plug - LSA222215 (x1)

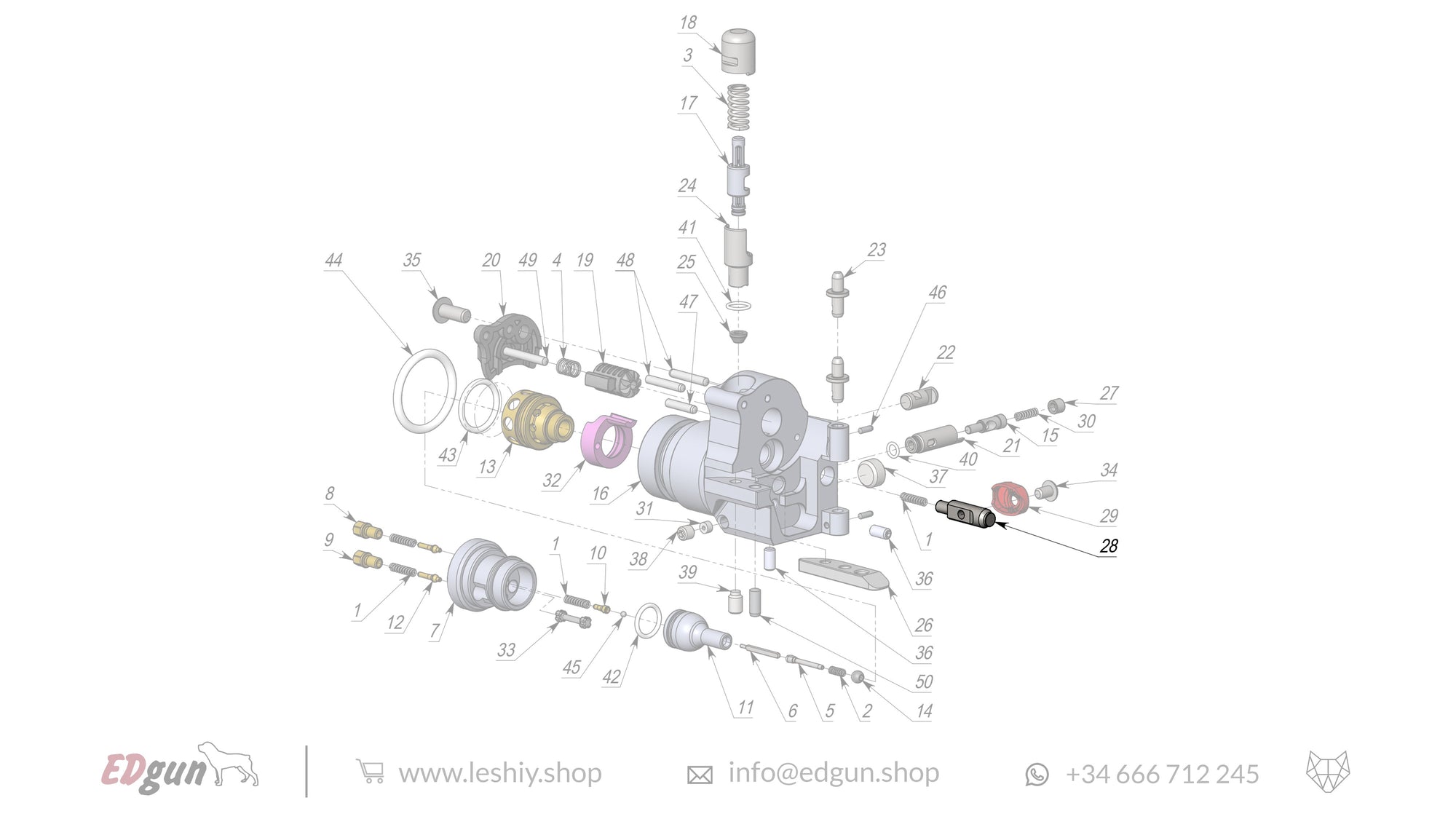

2- Spring - LSA101014 (x1) 28- Bar - LSA222216 (x1)

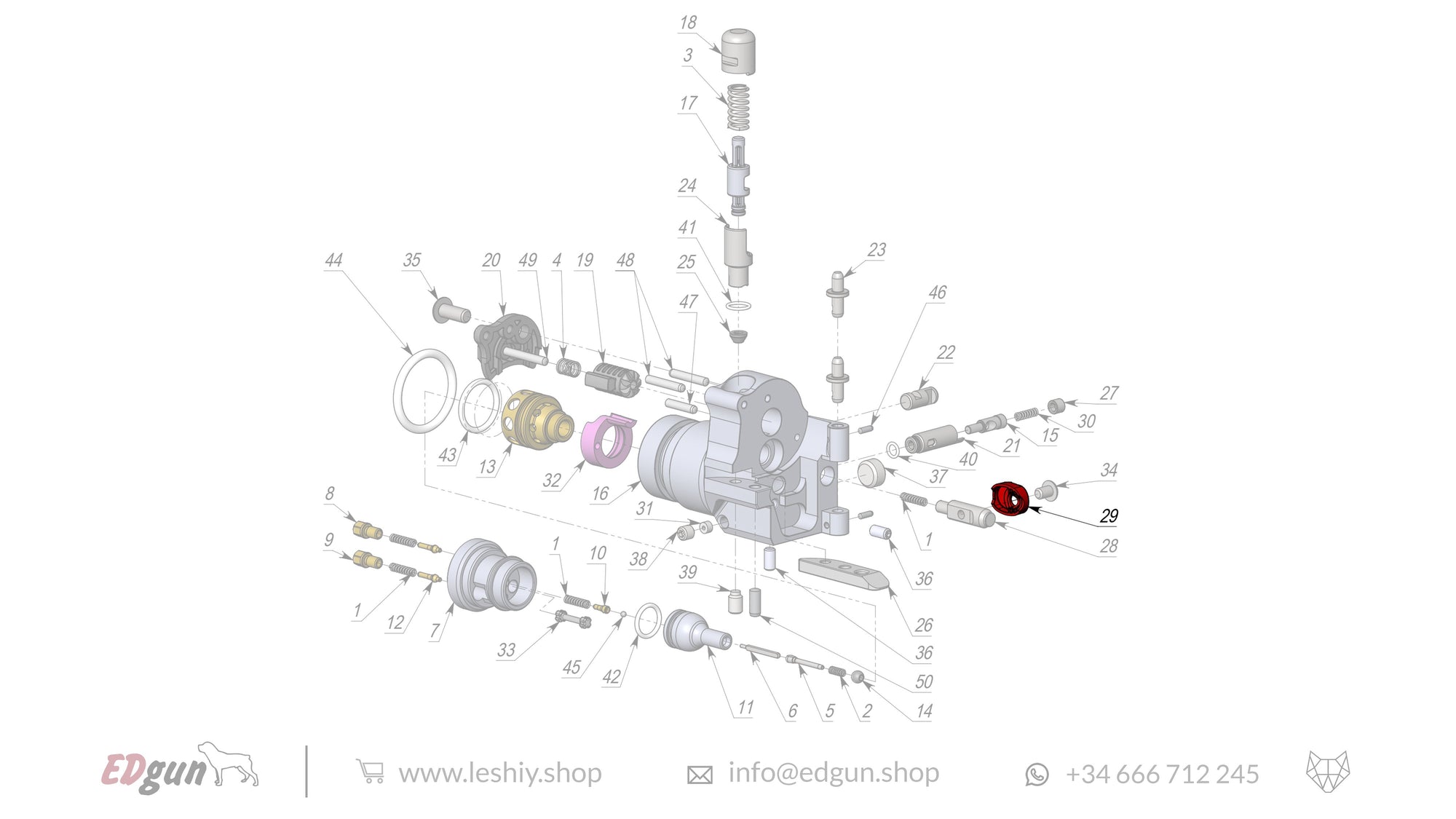

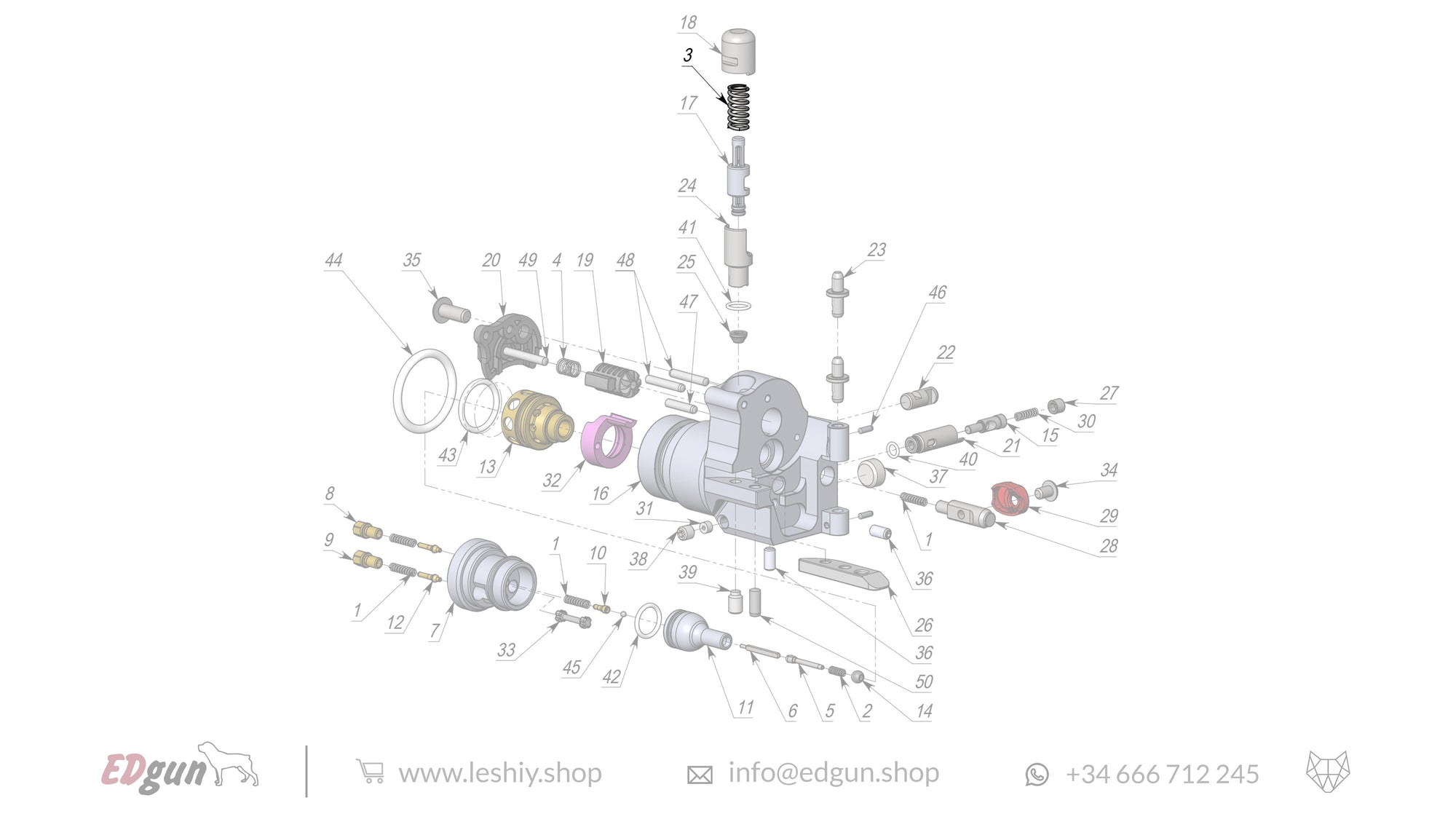

3- Spring - LSA201009 (x1) 29- Button - LSA222217 (x1)
4- Spring - LSA231018 (x1) 30- Spring - LSA241008 (x1)
5- Disconnector - LSA202006 (x1) 31- Seal - LSA242223 (x1)
6-  Needle - LSA222003 (x1) 32- Insert - LSA242225 (x1)

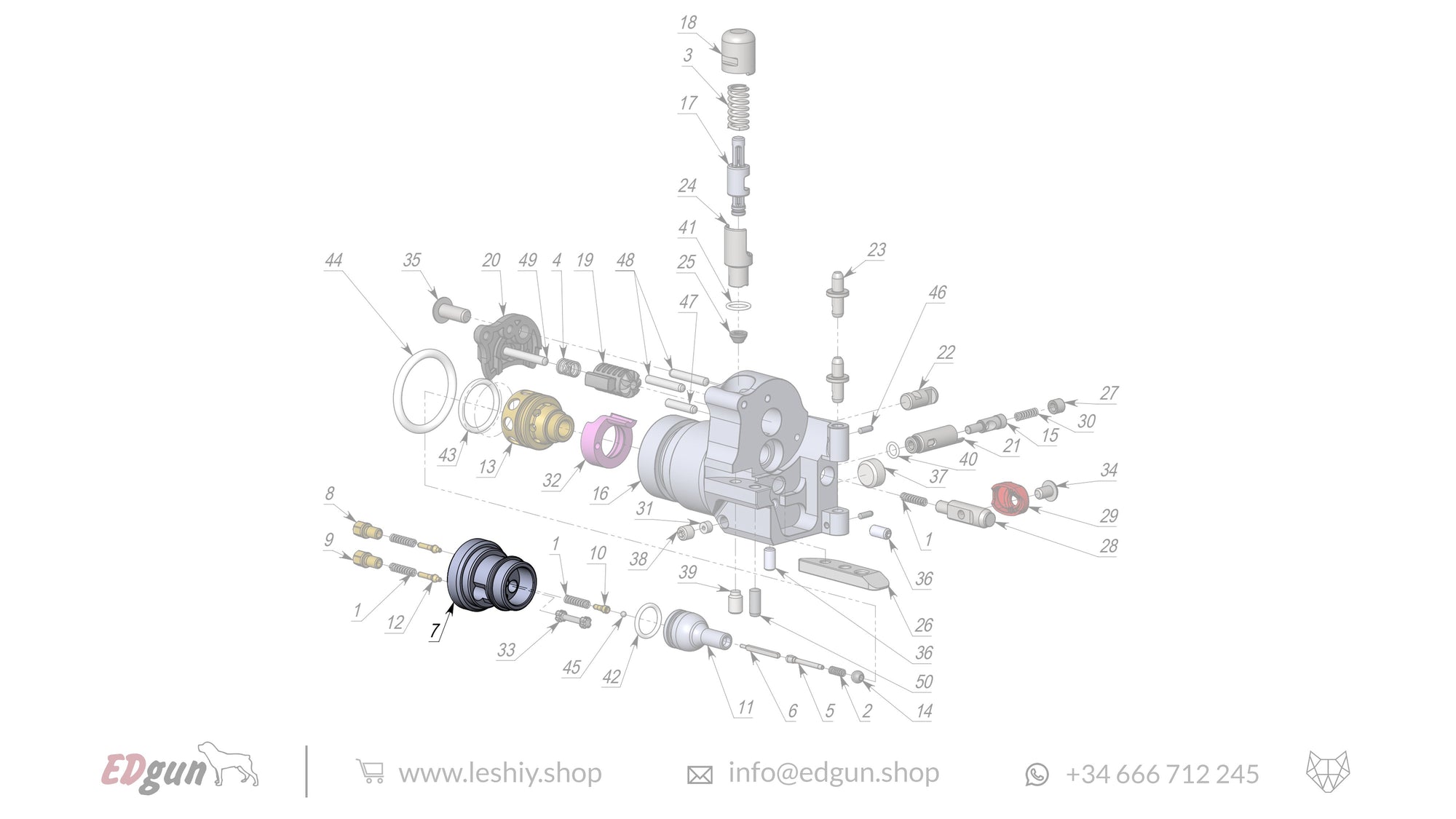

7- Shell - LSA222012 (x1) 33- Insert - LSA242226 (x1)

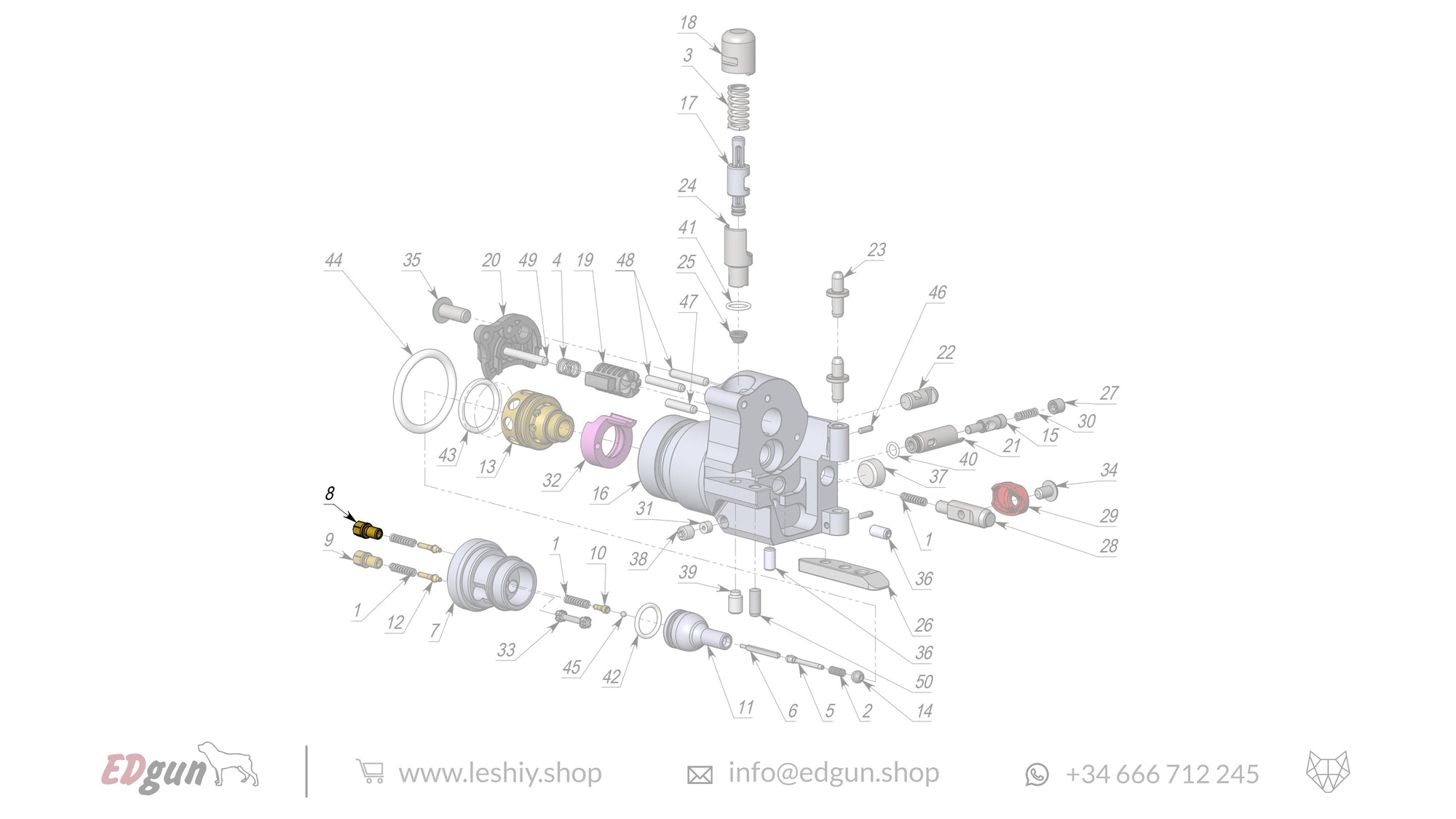

8- Noozle 0,4mm - LSA222013 34- Screw - M4x6 10.9 ISO7380-1 (x1)
9- Noozle 0,7mm - LSA222013 35- Screw - M5x12 10.9 ISO7380-1 (x1)
10- Support - LSA232014 (x1) 36- Screw - M4x8 10.9 DIN913 (x2)

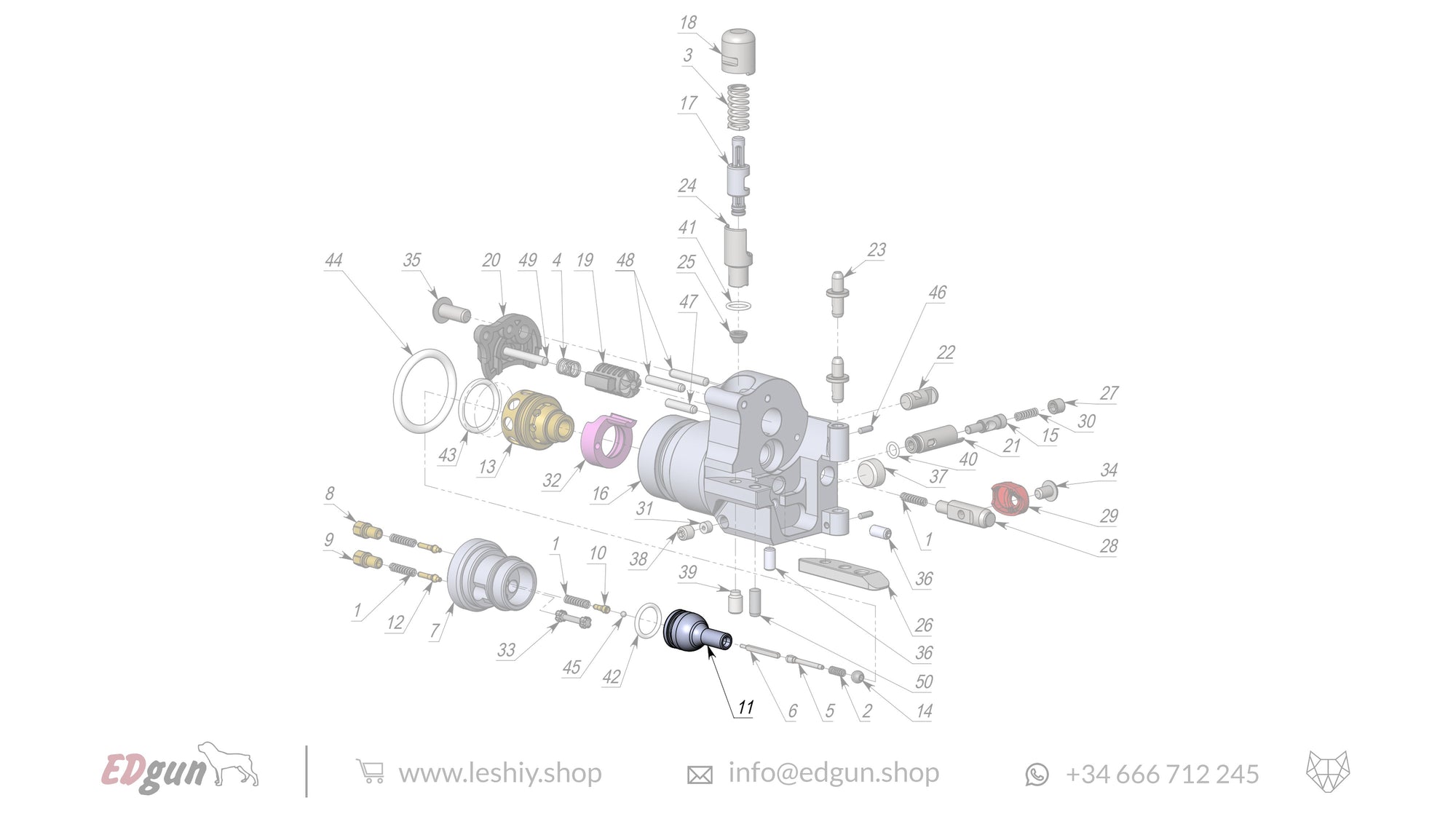

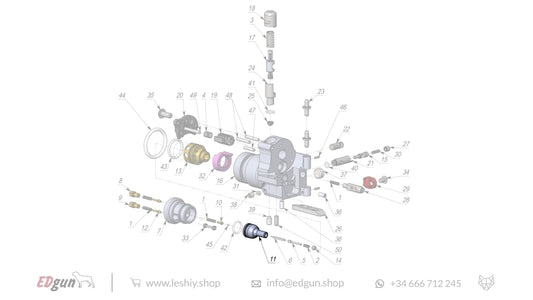

11- Valve - LSA222015 (x1) 37- Screw - M10x6 10.9 DIN913 (x1)
12- Valve - LSA222018 (x2) 38- Screw - M5x6 10.9 DIN914 (x1)

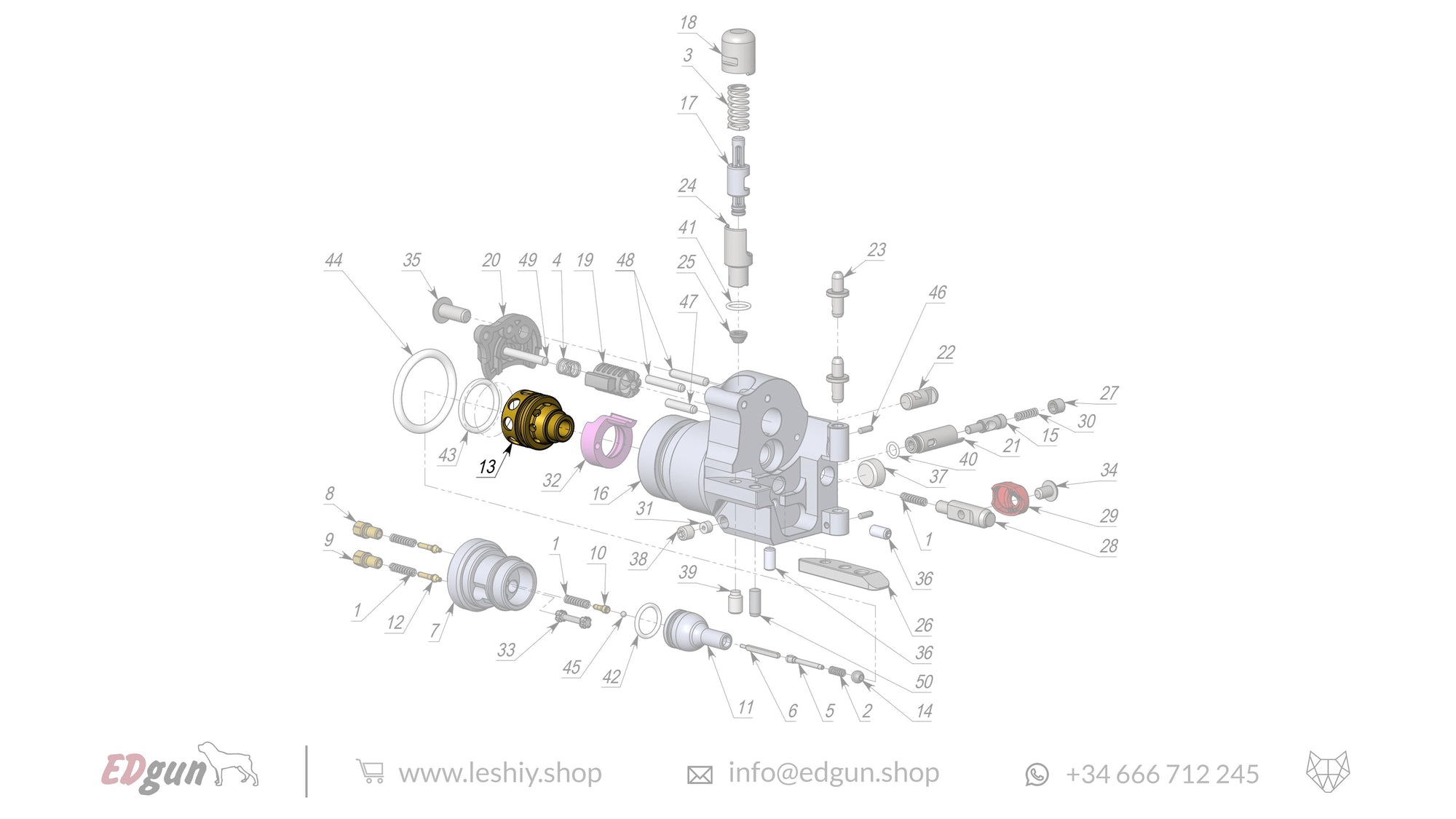

13- Shell - LSA242019 (x1) 39- Screw - M5x8 10.9 DIN915 (x1)
14- Sphere - LSA242021 (x1) 40- O-ring 70NBR 4x1 (x1)

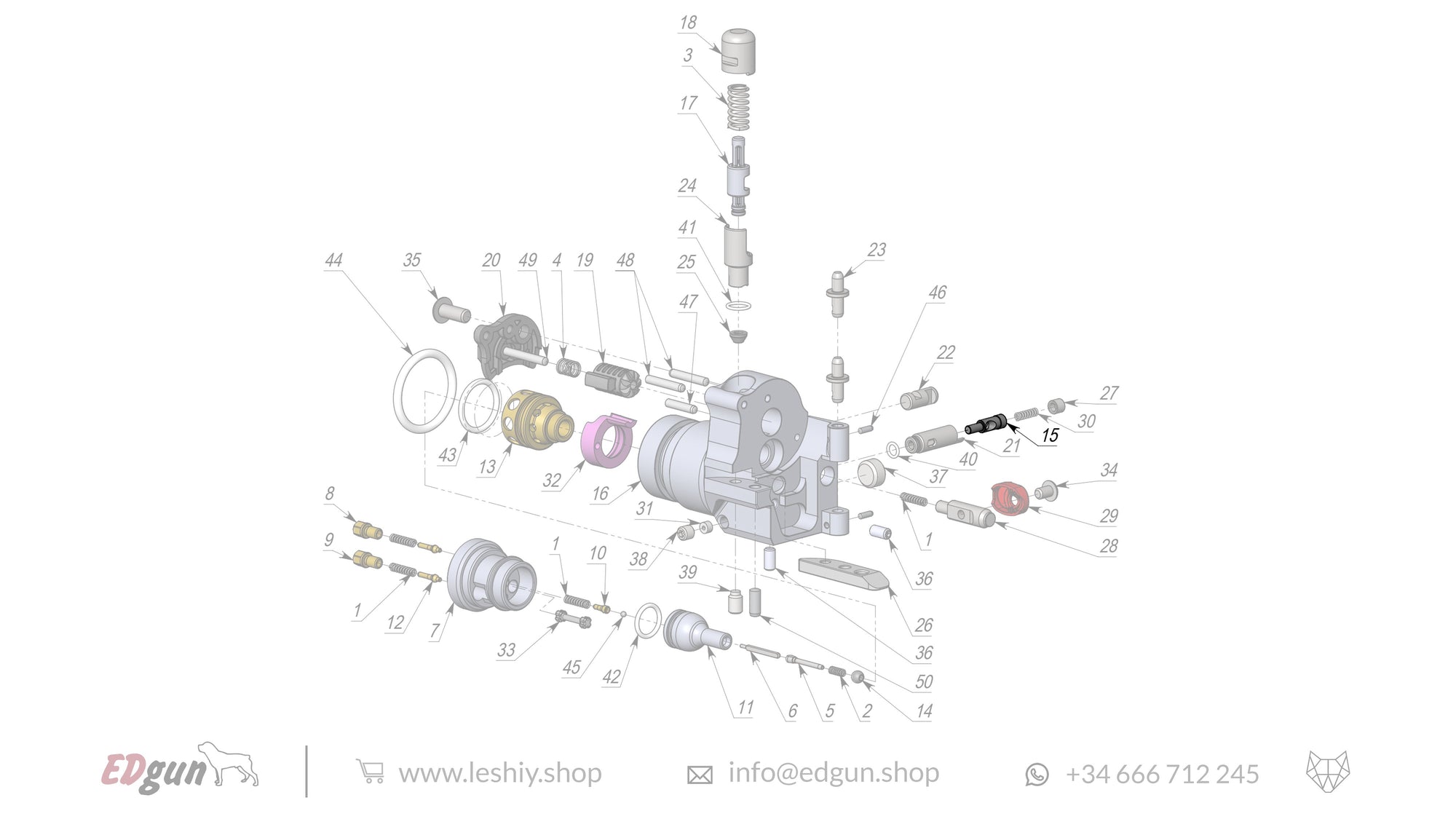

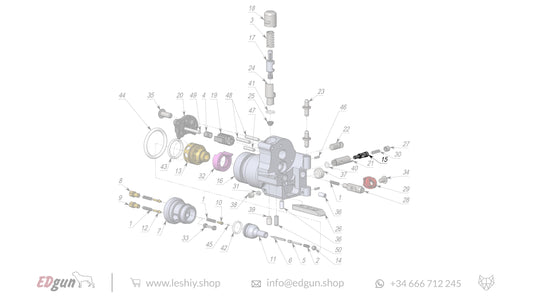

15- Plunger - LSA222102 (x1) 41- O-ring 70NBR 7x1 (x1)

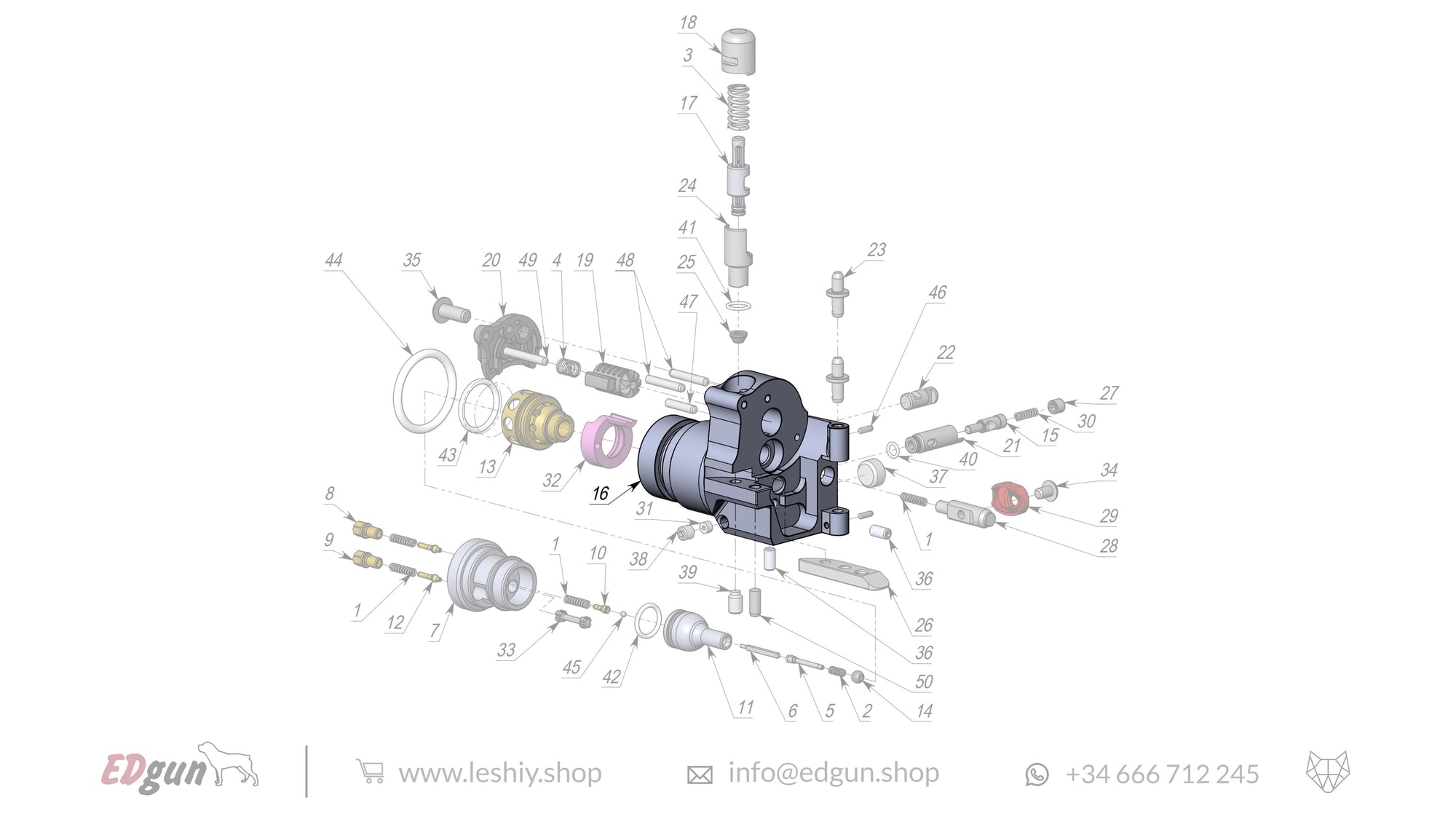

16- Forward plug - LSA242201 (x1) 42- O-ring 70NBR 10x1.5 (x1)
17- Plunger LSA232202 (x1)

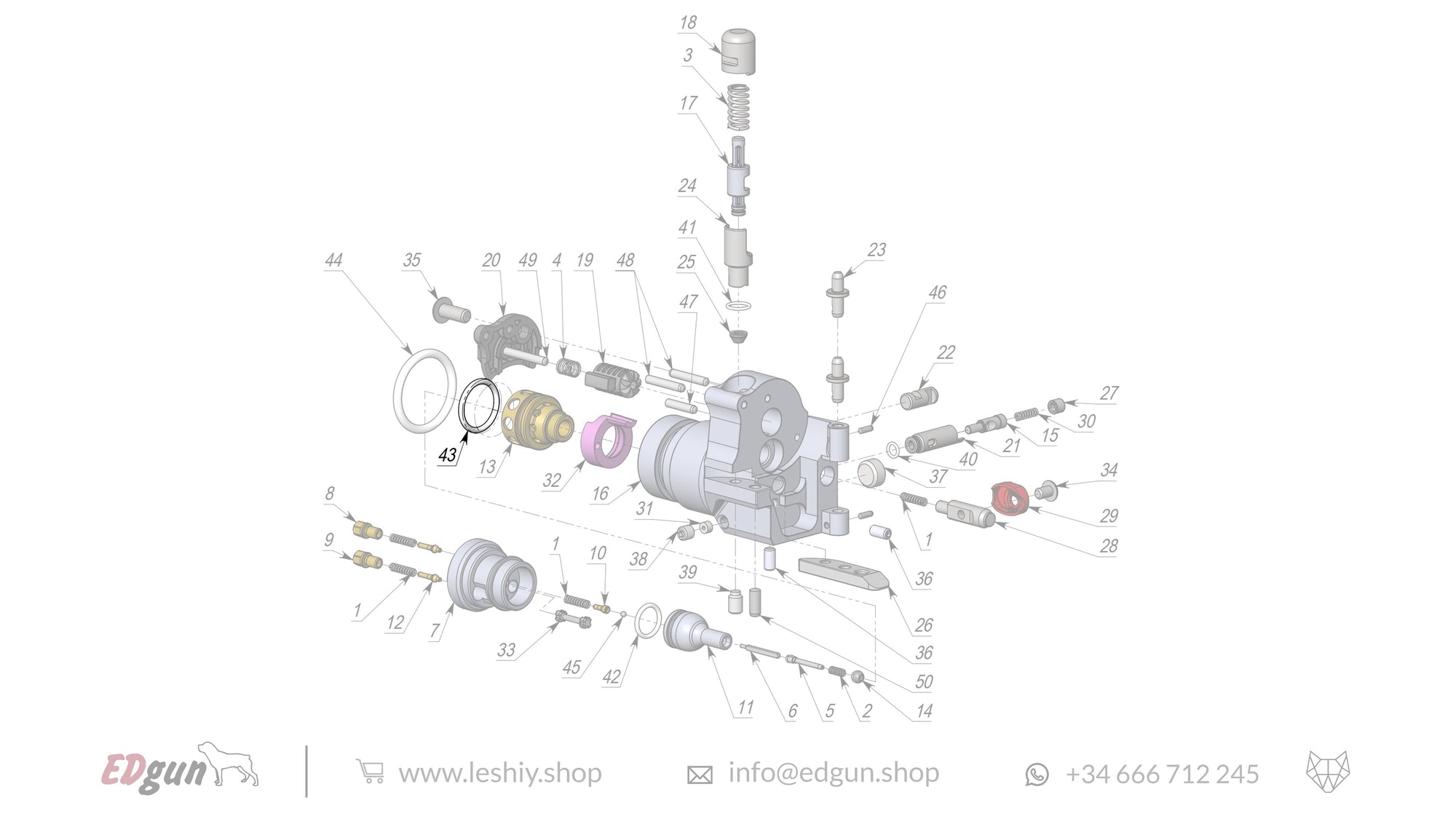

43- O-ring 70NBR 16x2 (x1)

18- Plug - LSA232203 (x1) 44- O-ring 70NBR 25x3 (x1)
19- Ratchet - LSA222206 (x1) O-ring 70NBR Complete Kit

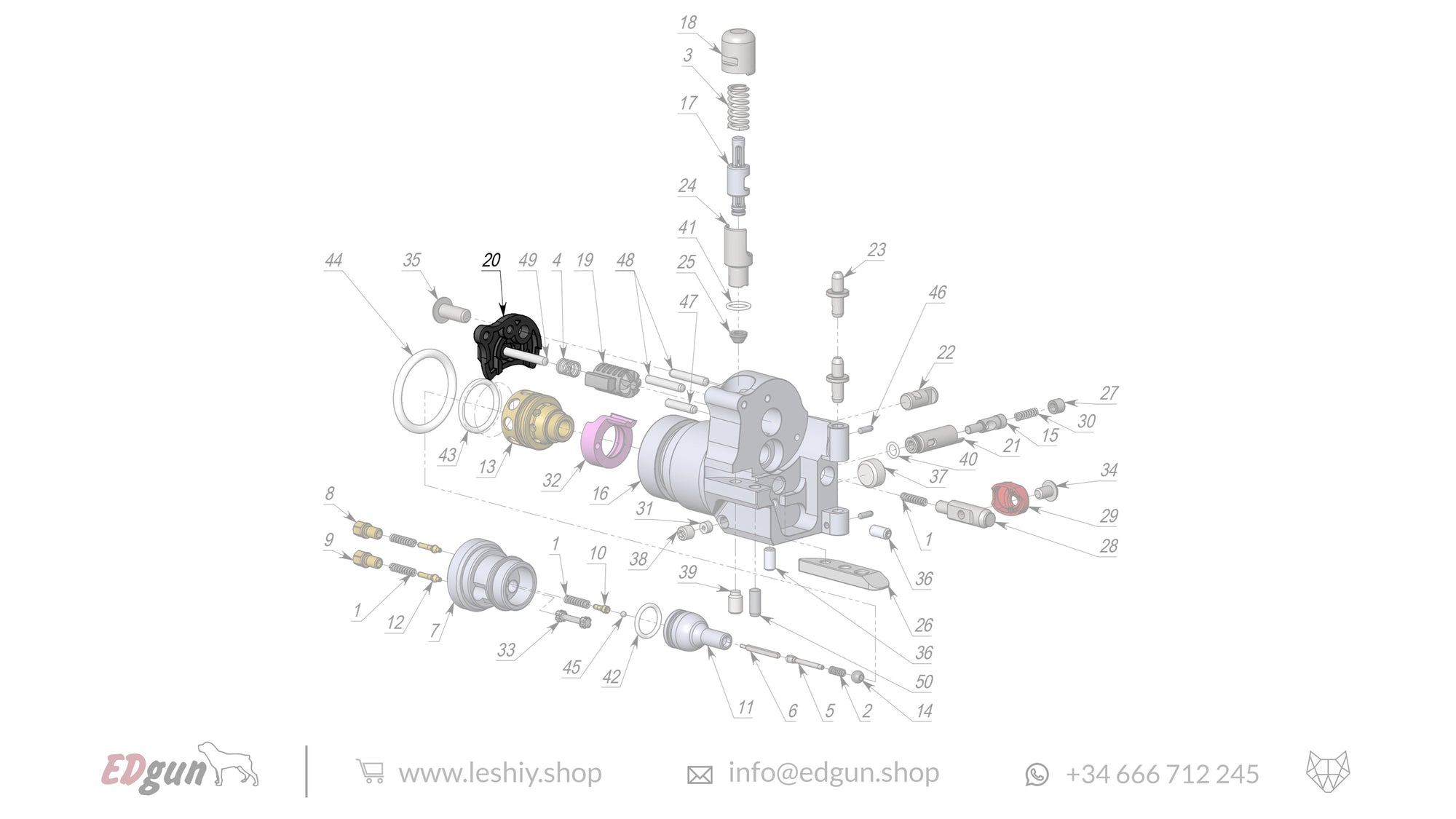

20- Cap - LSA222207 (x1) 45- Ceramic ball d2 (x1)
21- Shell - LSA222208 (x1) 46- 2x6 DIN6325 (x2)
22- Pin lock - LSA222209 (x1) 47- 3x14 DIN6325 (x1)
23- Pin - LSA222210 (x2) 48- 3x18 DIN6325 (x2)

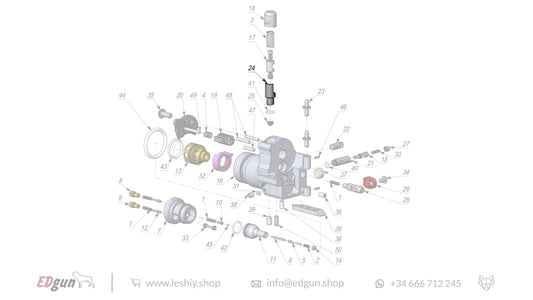

24- Shell - LSA242211 (x1) 49- 3x32 DIN6325 (x1)
25- Valve - LSA222212 (x1) 50- 4x10 DIN6325 (x1)
