EDgun · Leshiy 2 · Spare Parts: New Reservoir/Butt · LSA242000

Name: EDgun · Leshiy 2 · Spare Parts: New Reservoir/Butt · LSA242000
Brand: EDGUN
SKU: EDGSPPLSA202014X1
Price: 15.0 EUR
Availability: InStock

Sale

EDgun · Leshiy 2 · Spare Parts: New Reservoir/Butt · LSA242000

€15,00 €19,00

Quantity

Description

The EDgun Leshiy 2 New Reservoir/Butt combines air storage and ergonomic design for optimal balance and performance. Precision-crafted for durability, it’s a perfect replacement or upgrade for your setup.

Technical Specifications

References

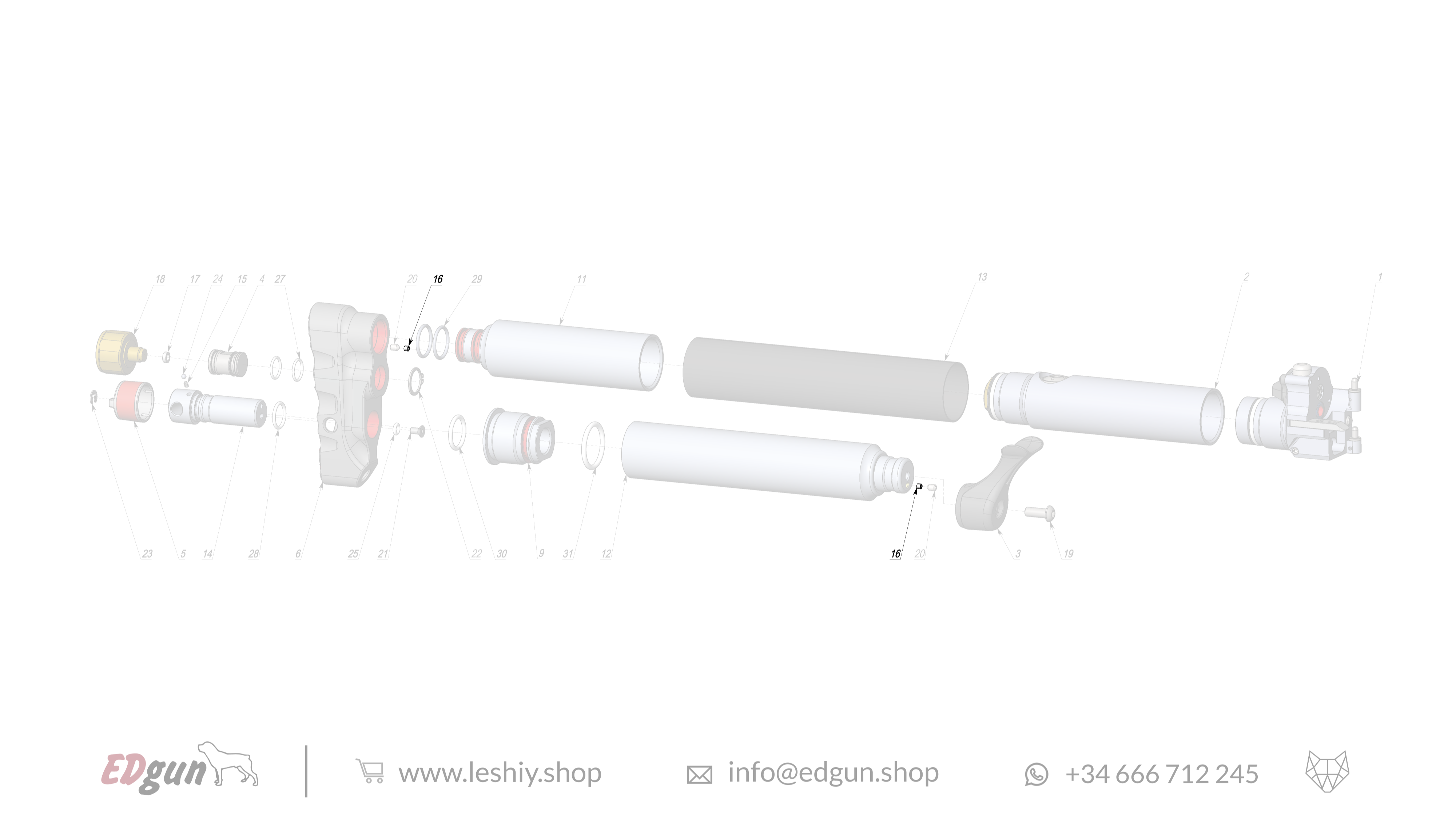

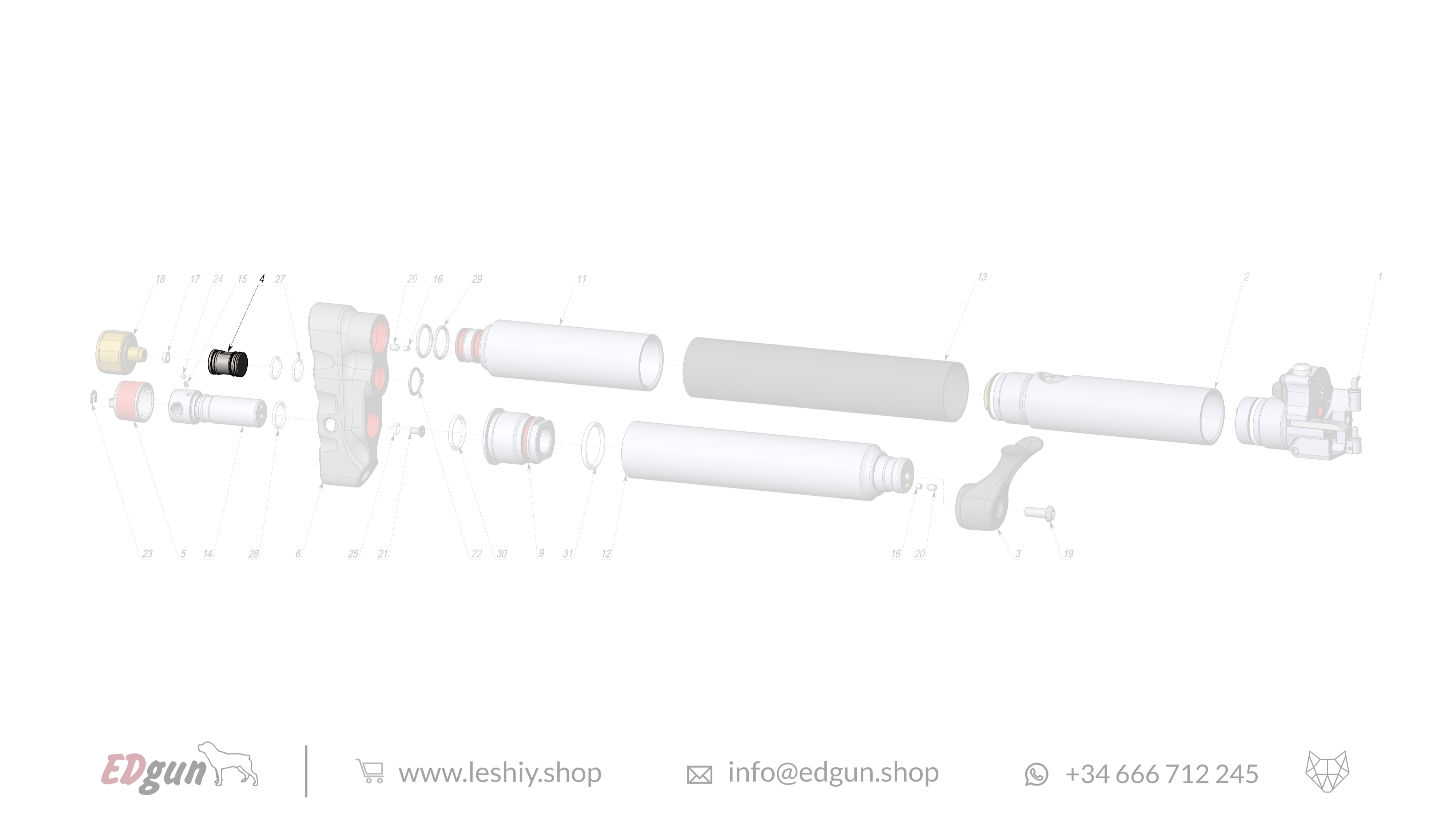

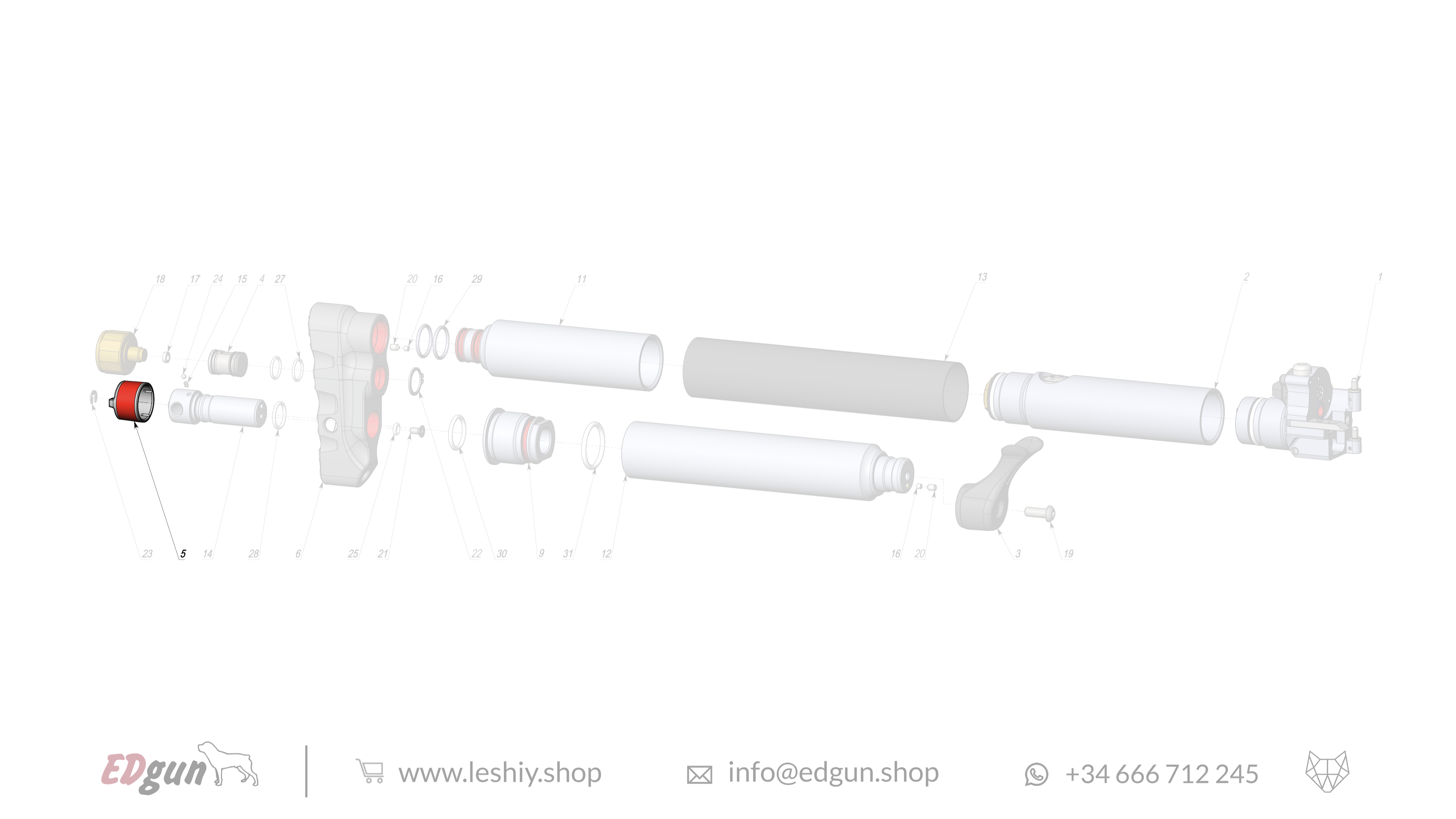

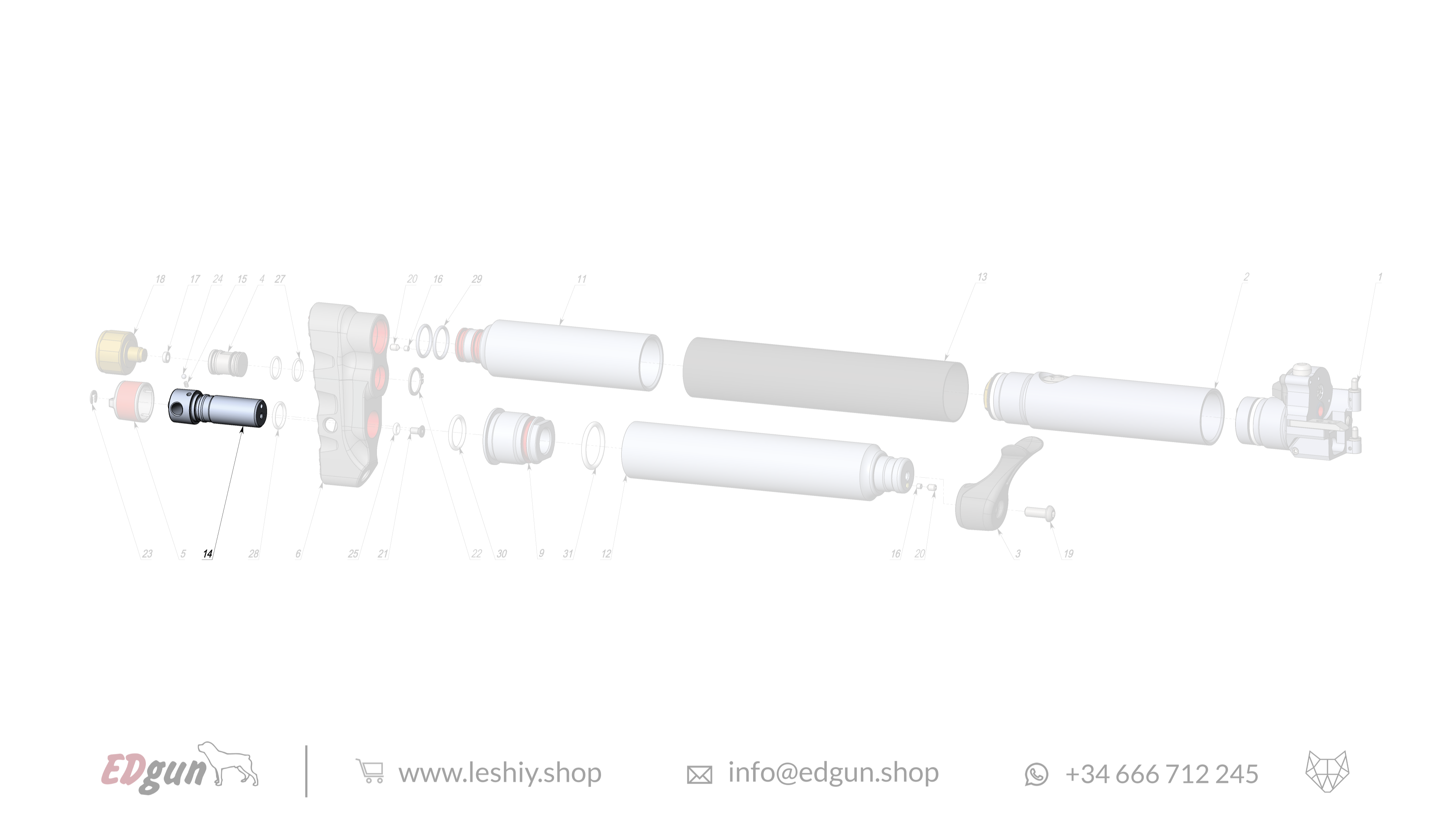

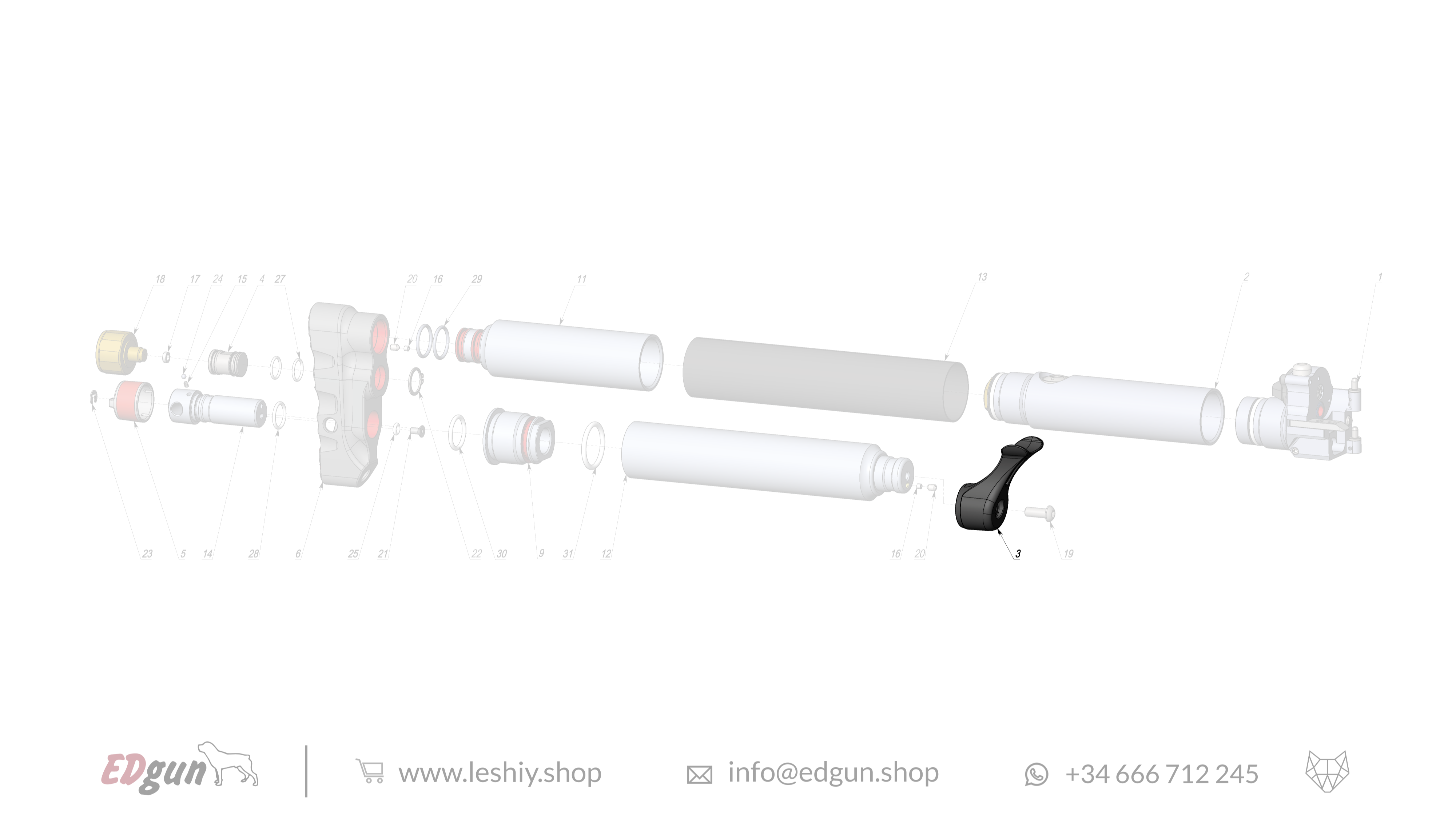

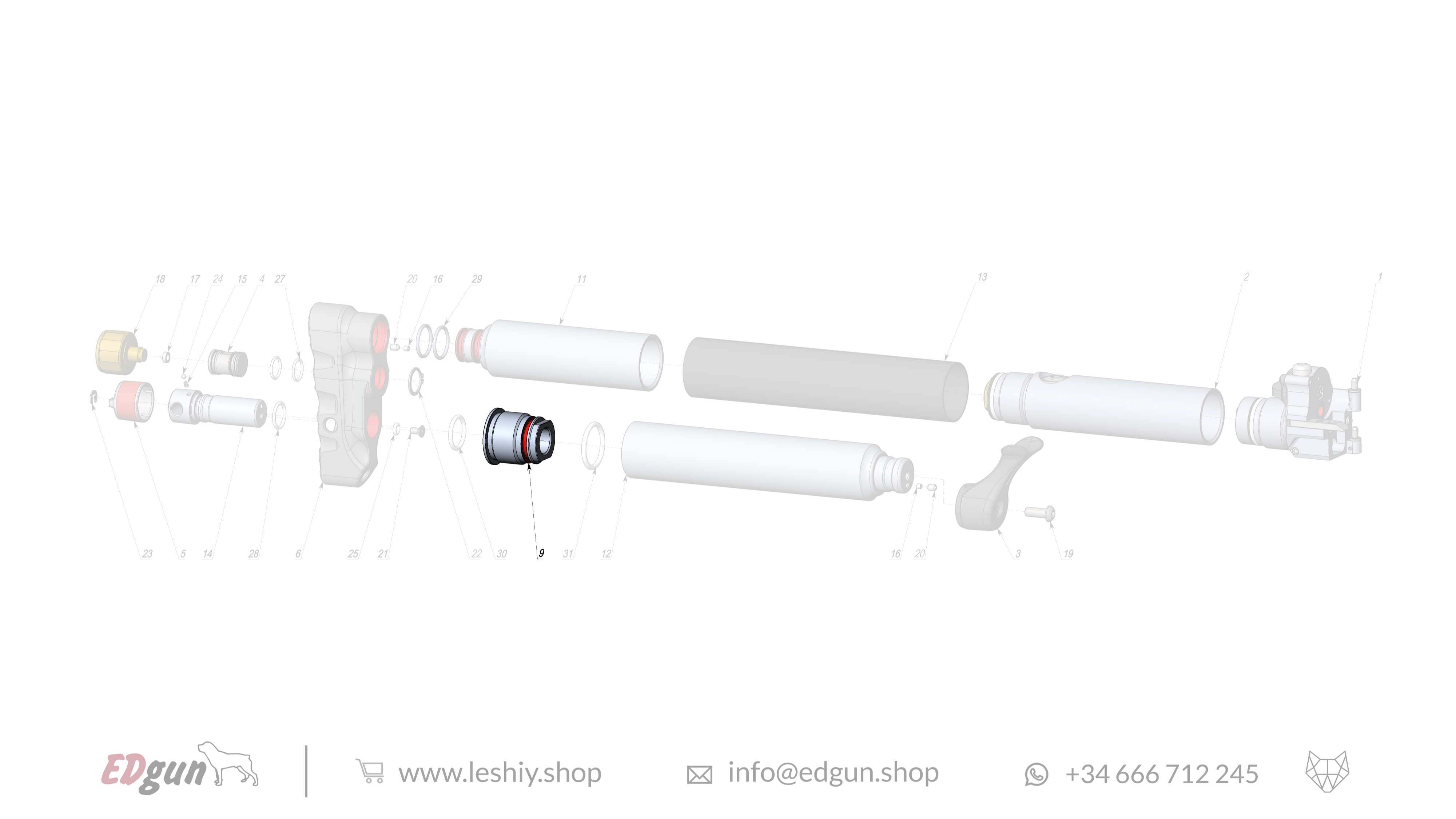

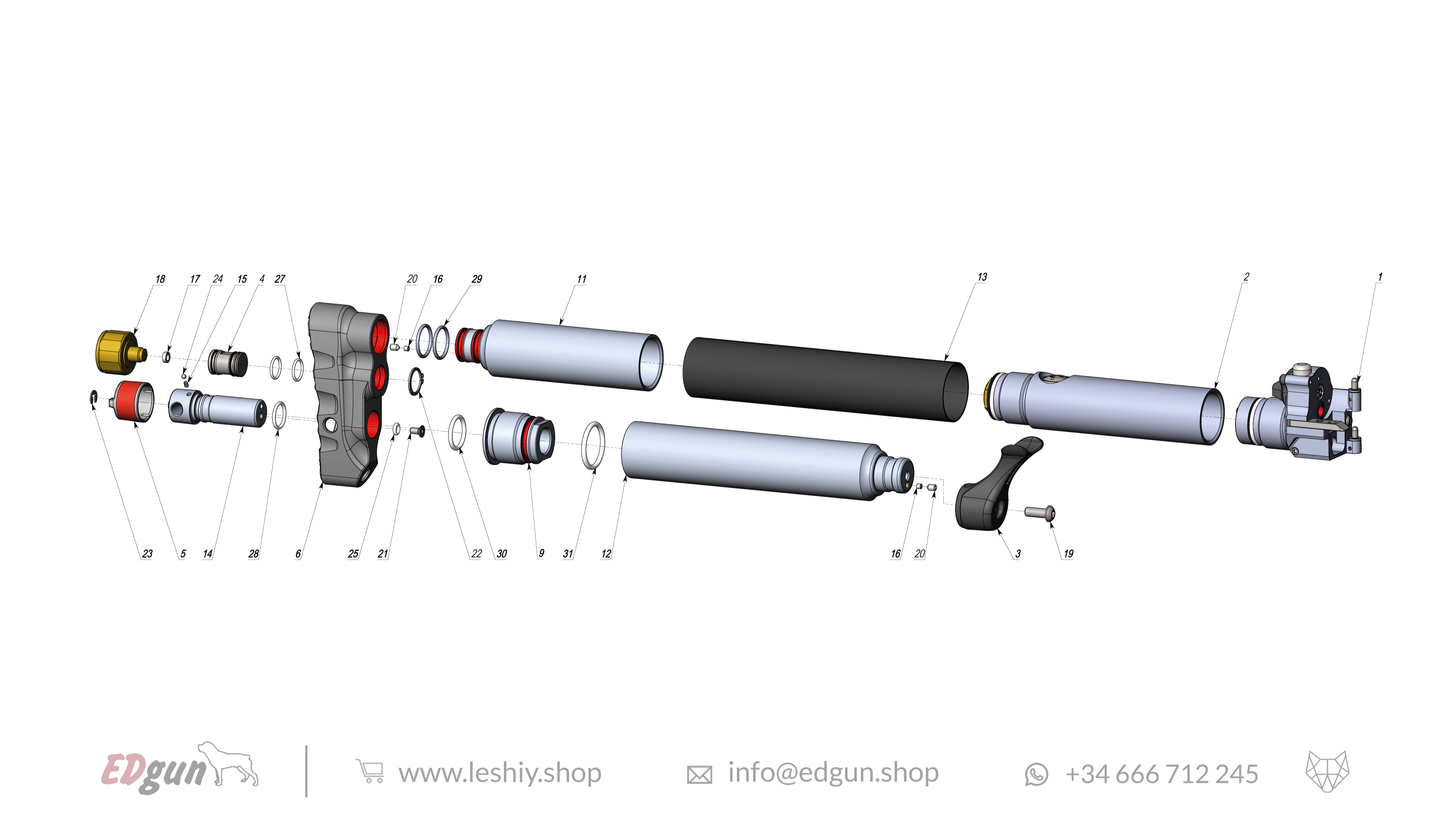

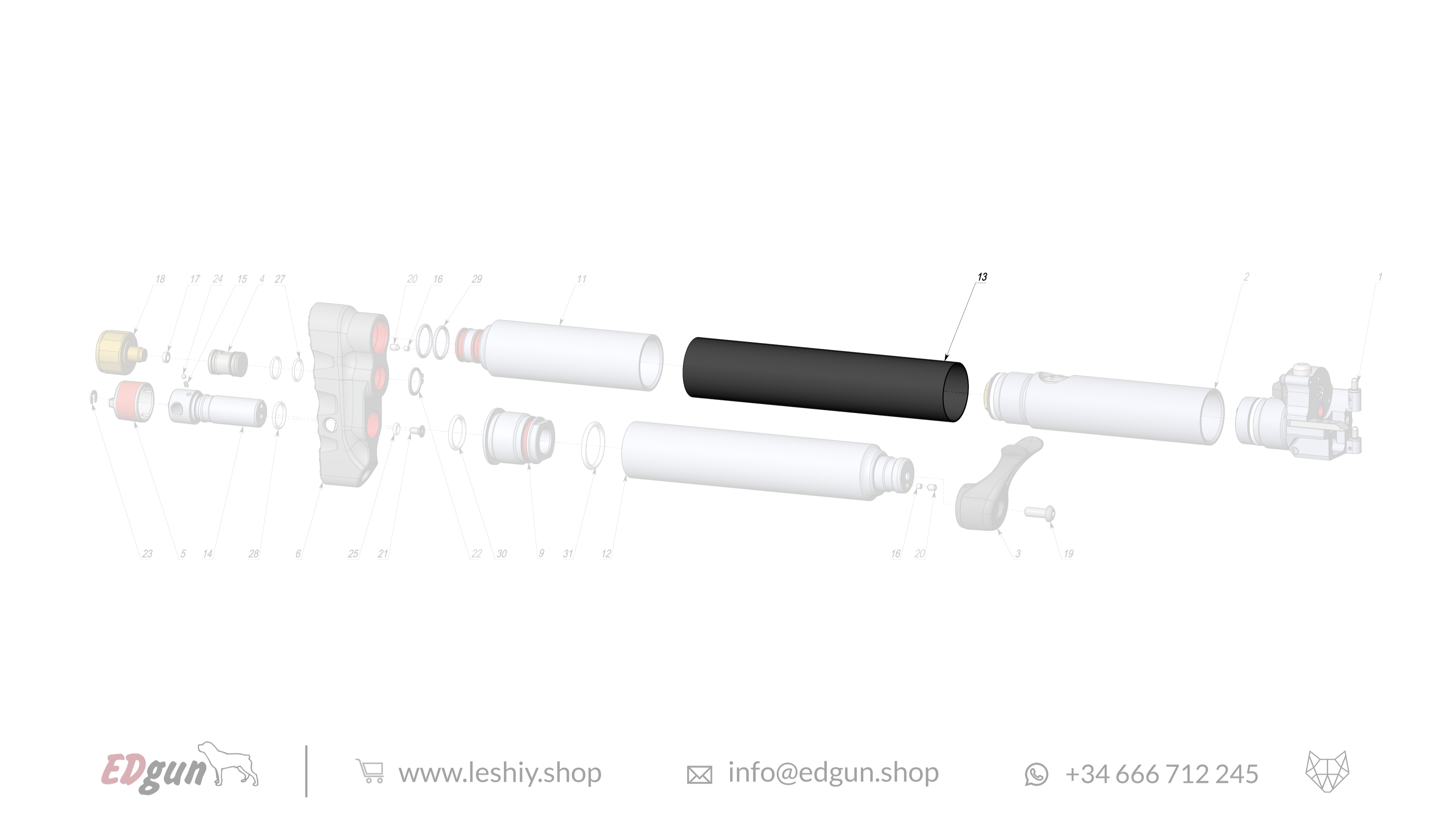

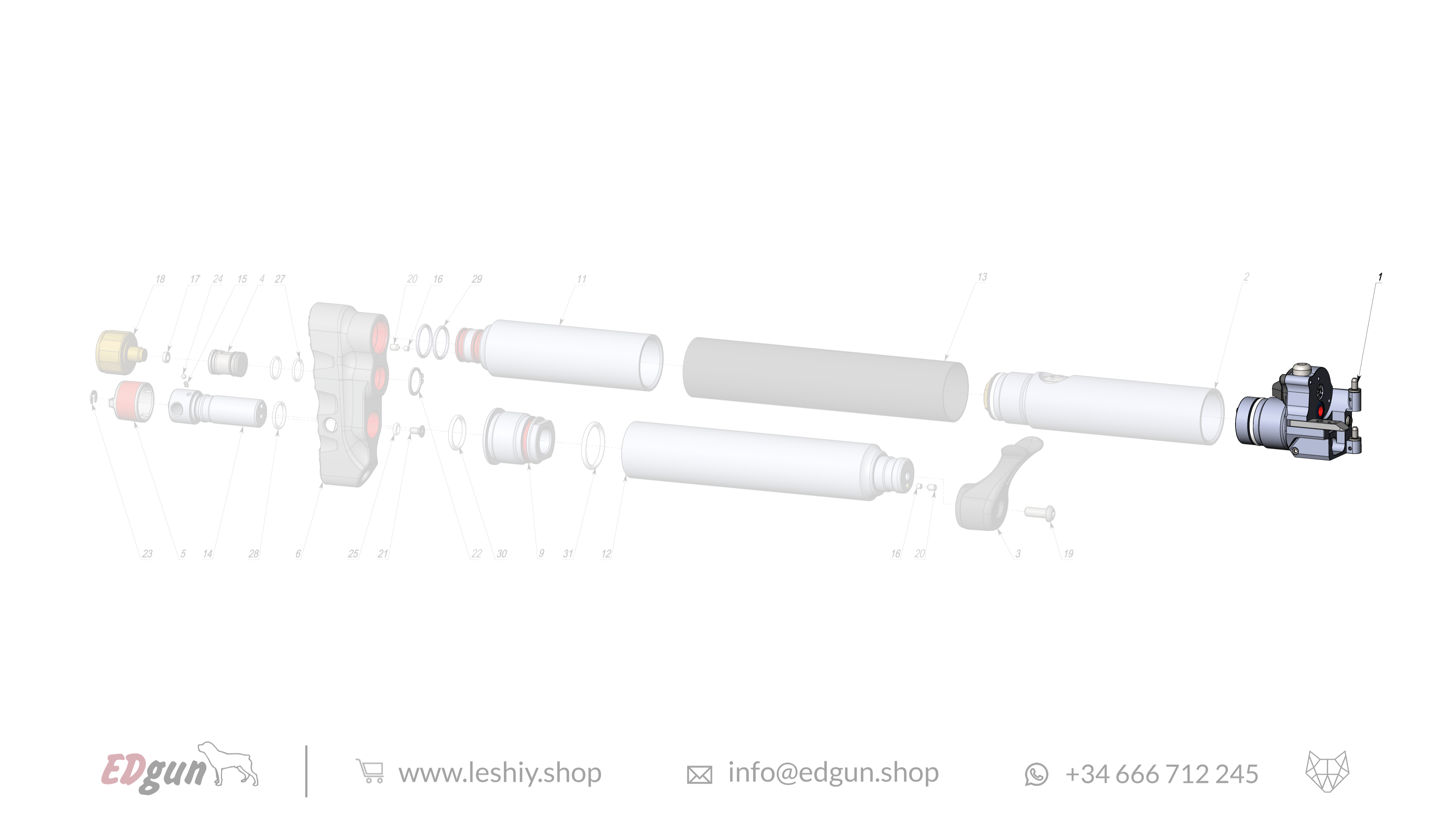

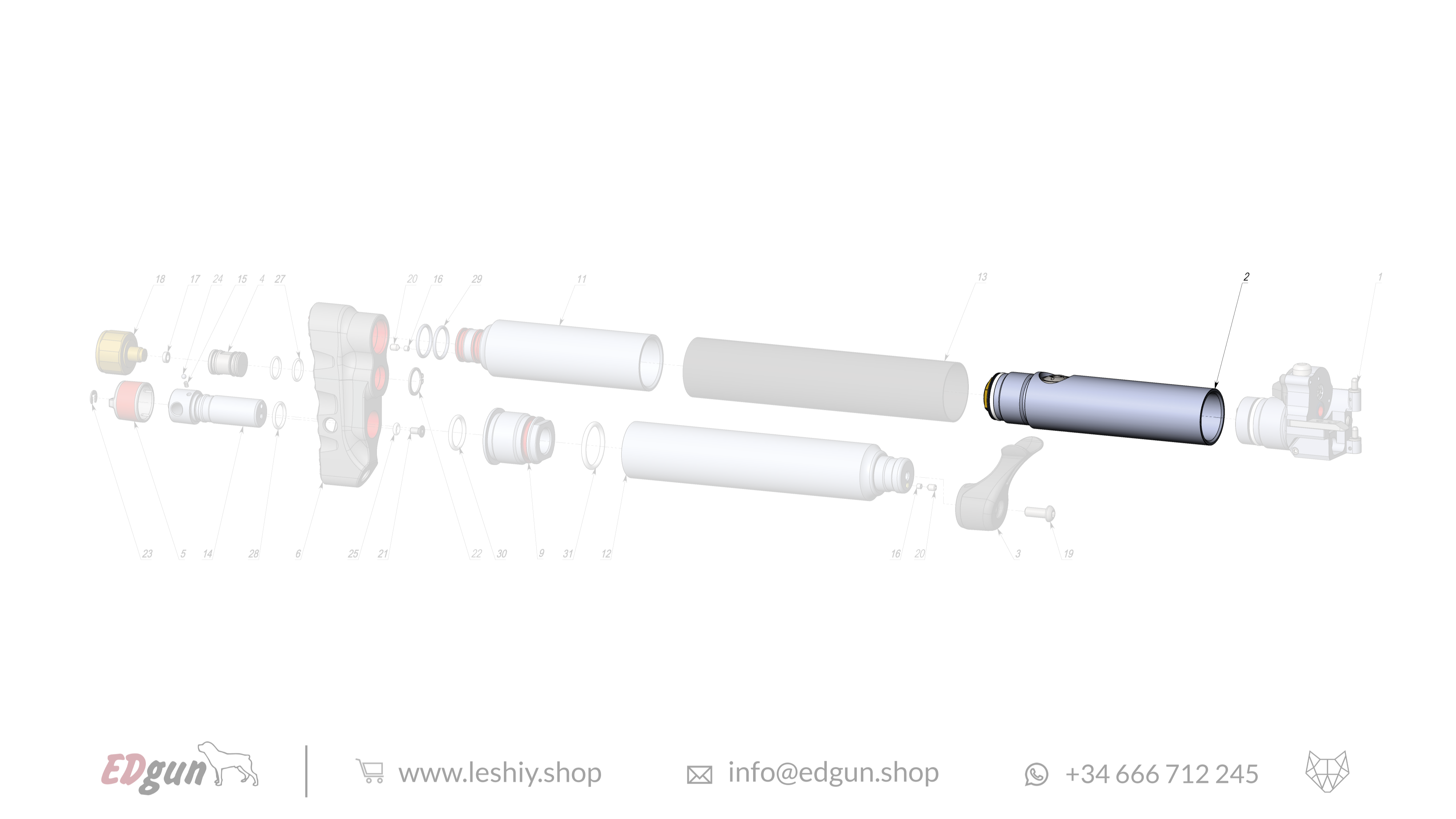

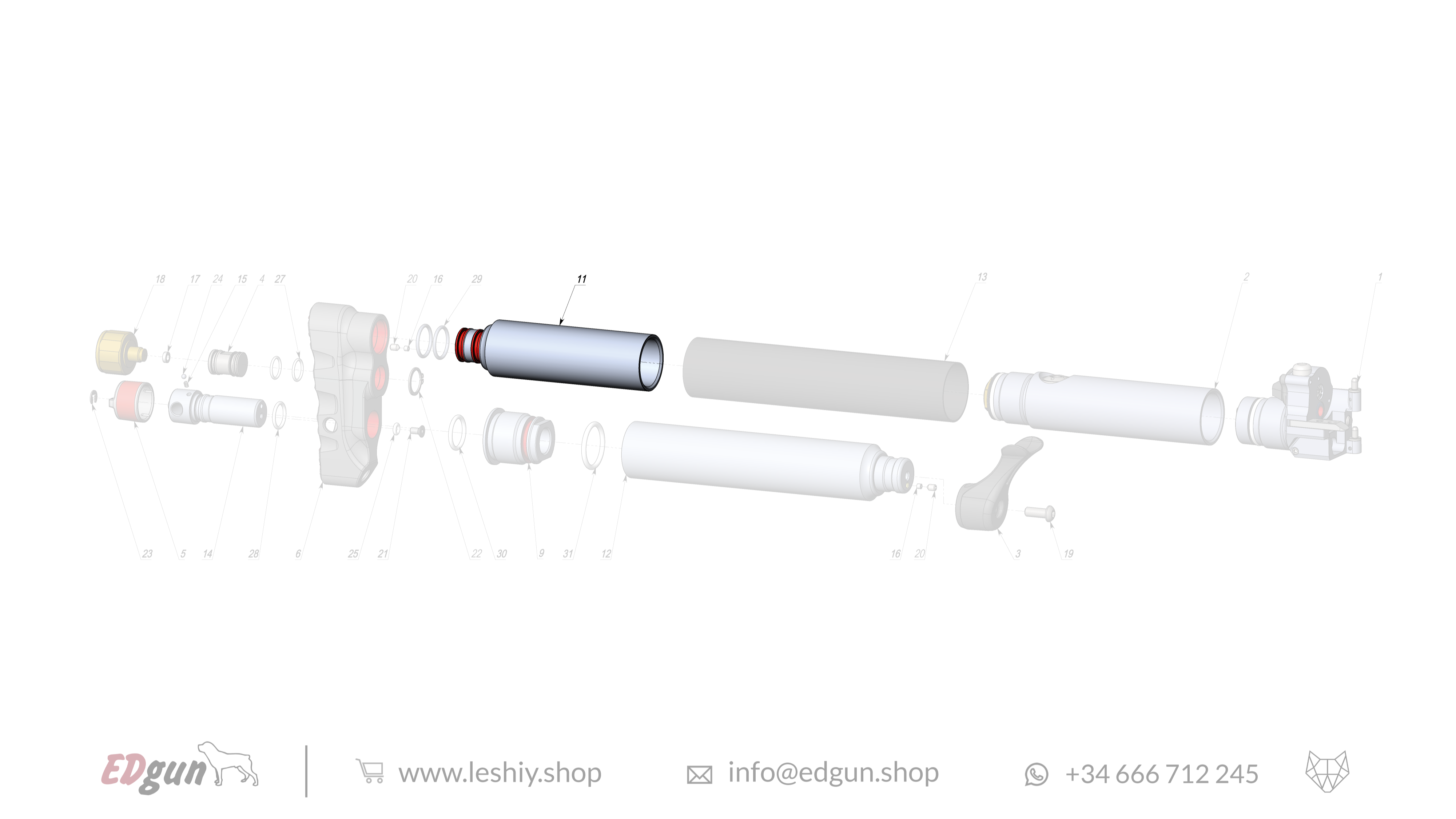

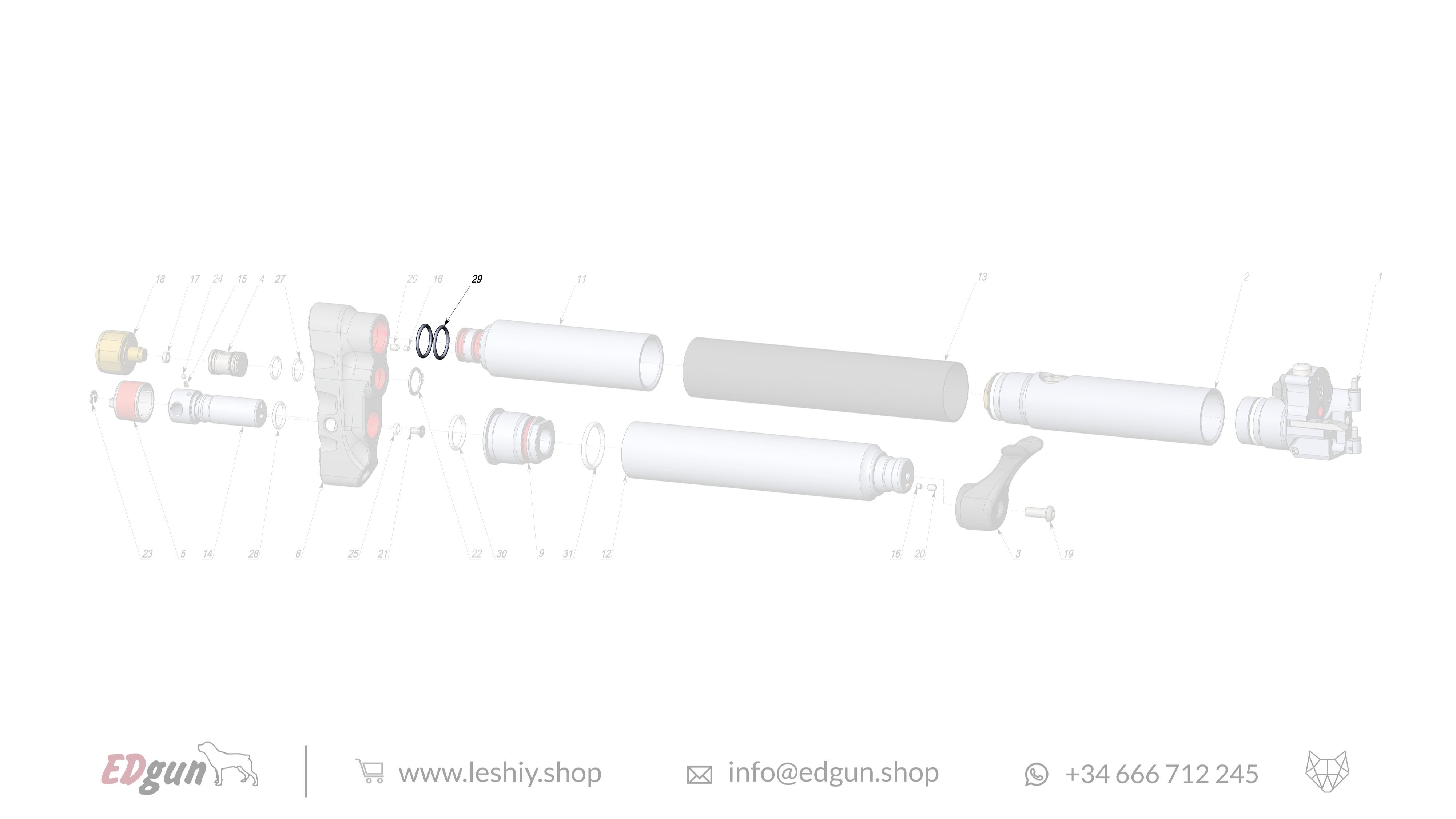

COMPLETE BUTT/RESERVOIR	16- Seal - LSA242222 (x2)
1- Forward plug - LSA242200	17- Gasket - LSA242507 (x1)

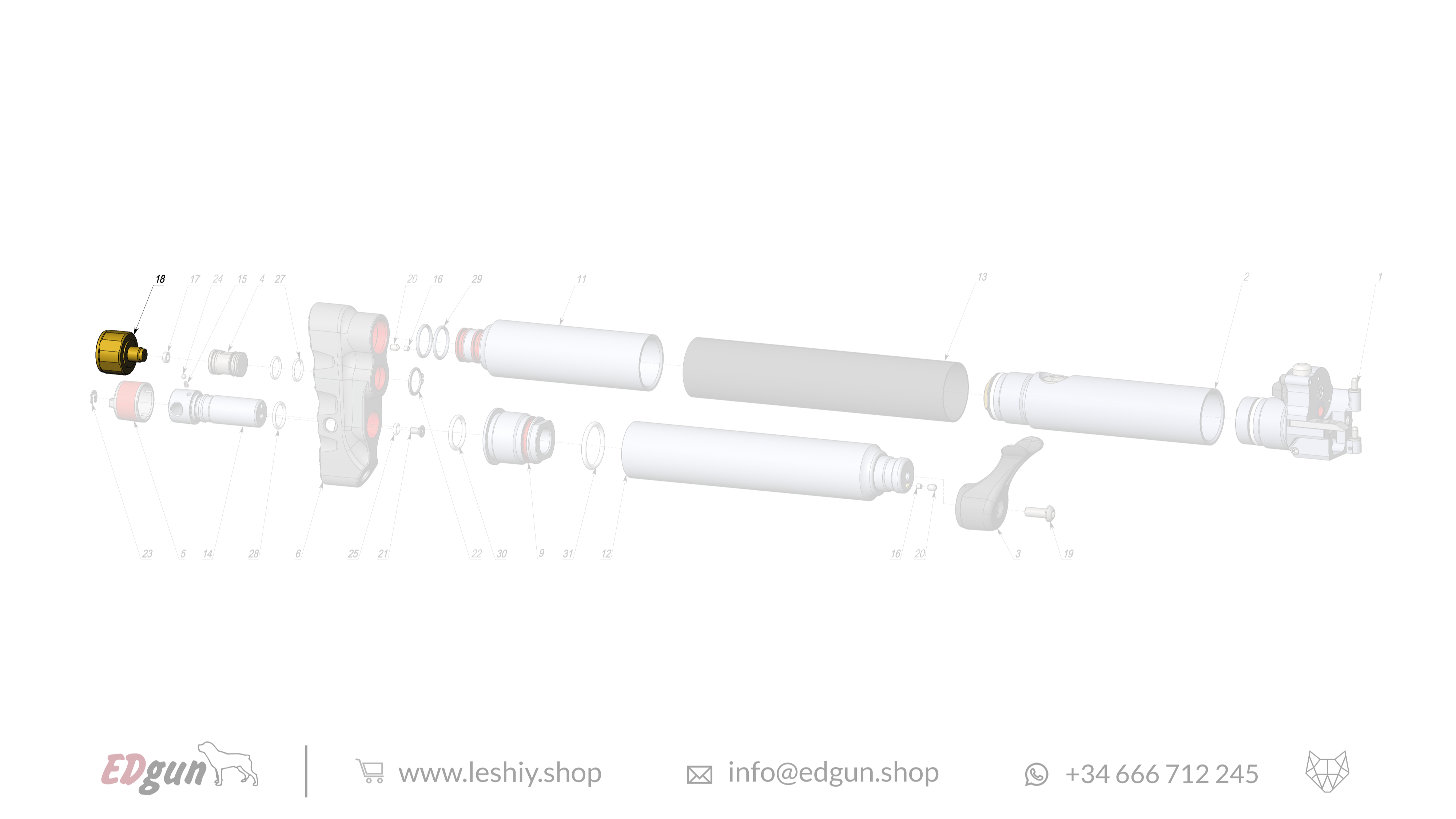

2- Externally Adjustable Regulator (E.A.R)	18- EDgun Air Gauge

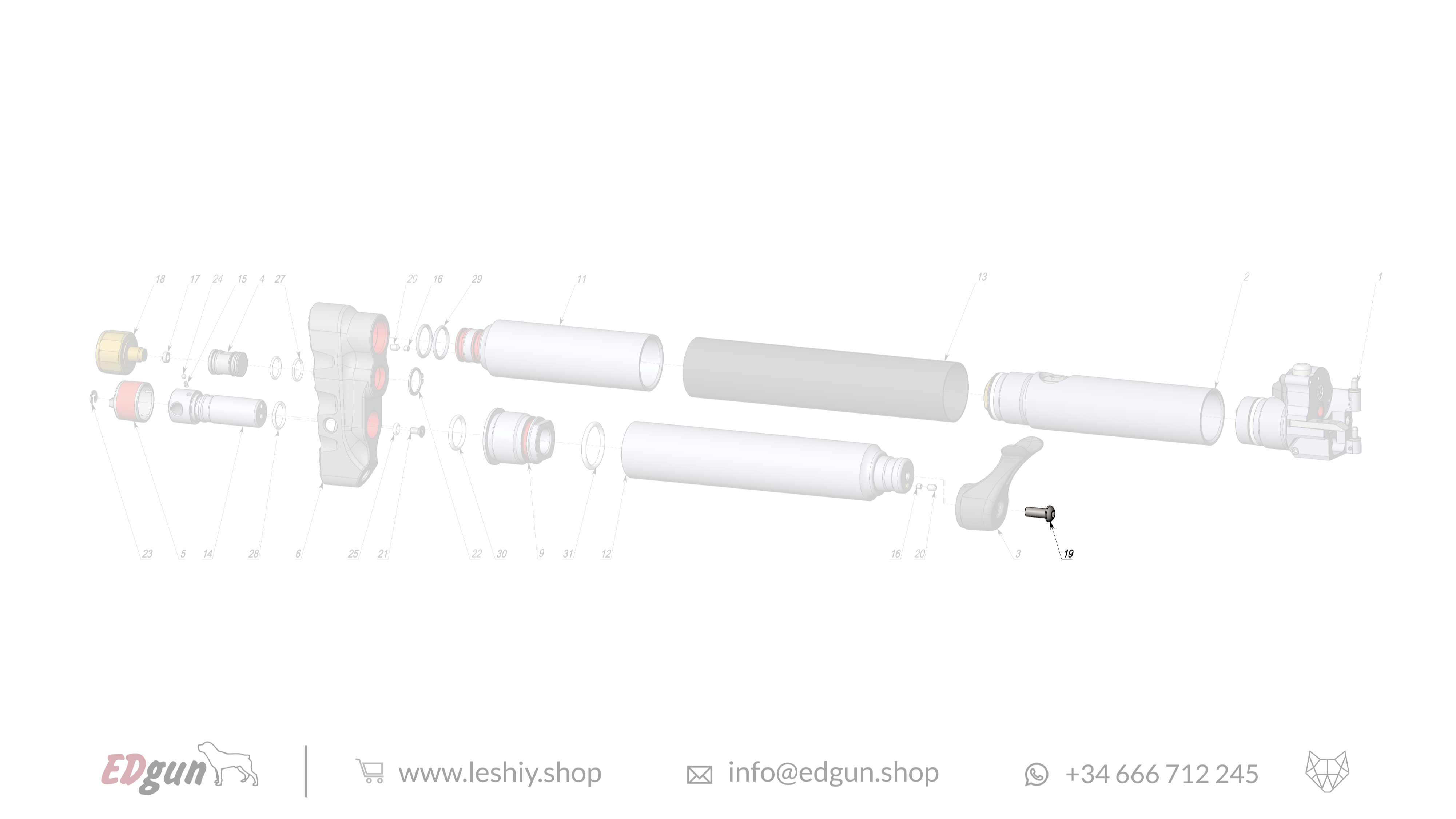

3- Bracket - LSA202014 (x1)	19- Screw М6х16 10.9 ISO7380-1 (x2)
4- Plug - LSA212007 (x1)	20- Screw М4х6 10.9 DIN914 (x2)
5- Cover - LSA212013 (x1)	21- Screw М4х8 А4 DIN7991 (x1)
6- Buttpad - LSA216006 (x1)	22- Ring 16 DIN471 (x1)

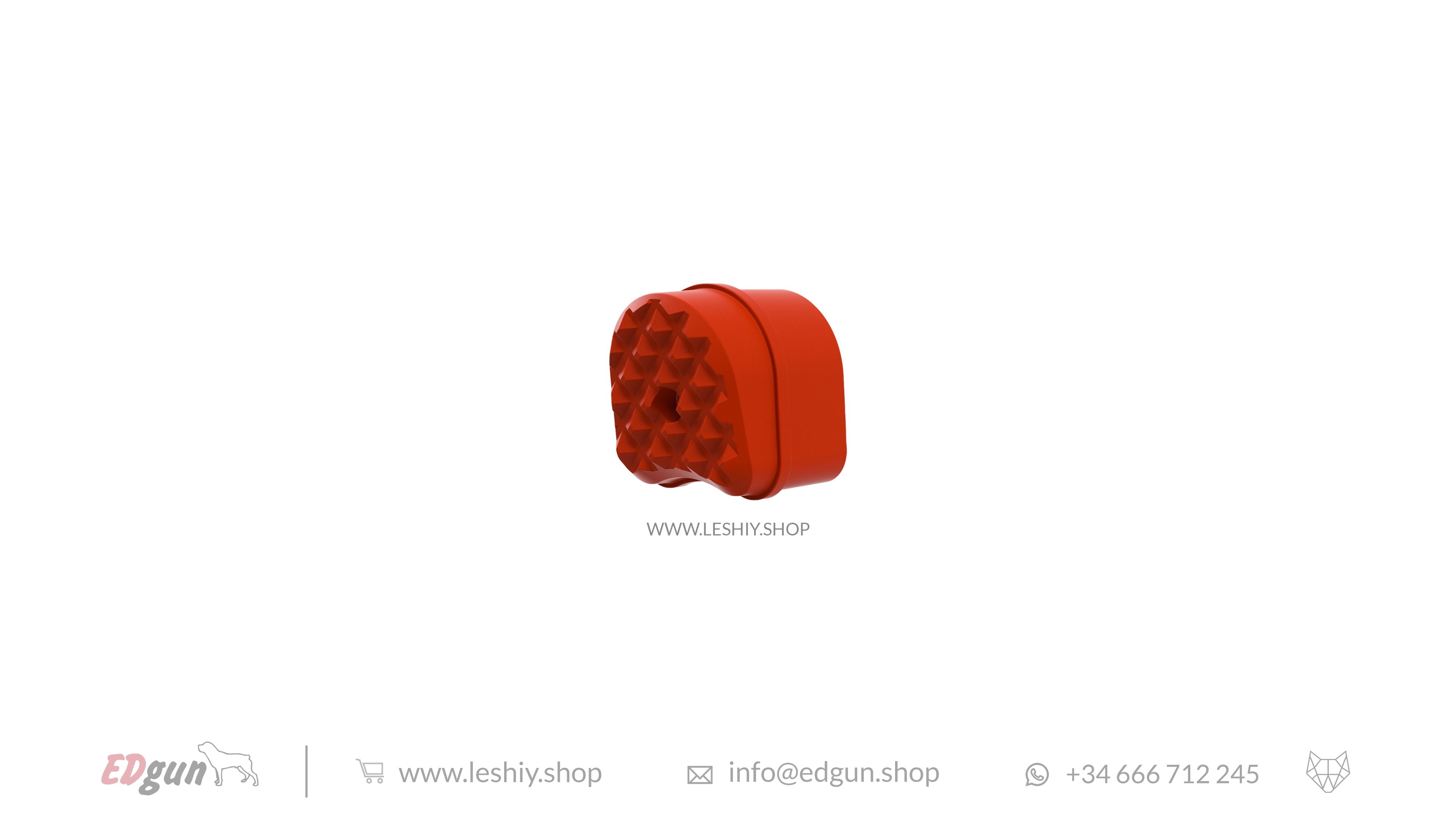

7- Insert - LSA218005 (x1)	23- Washer 4 DIN6799 (x1)

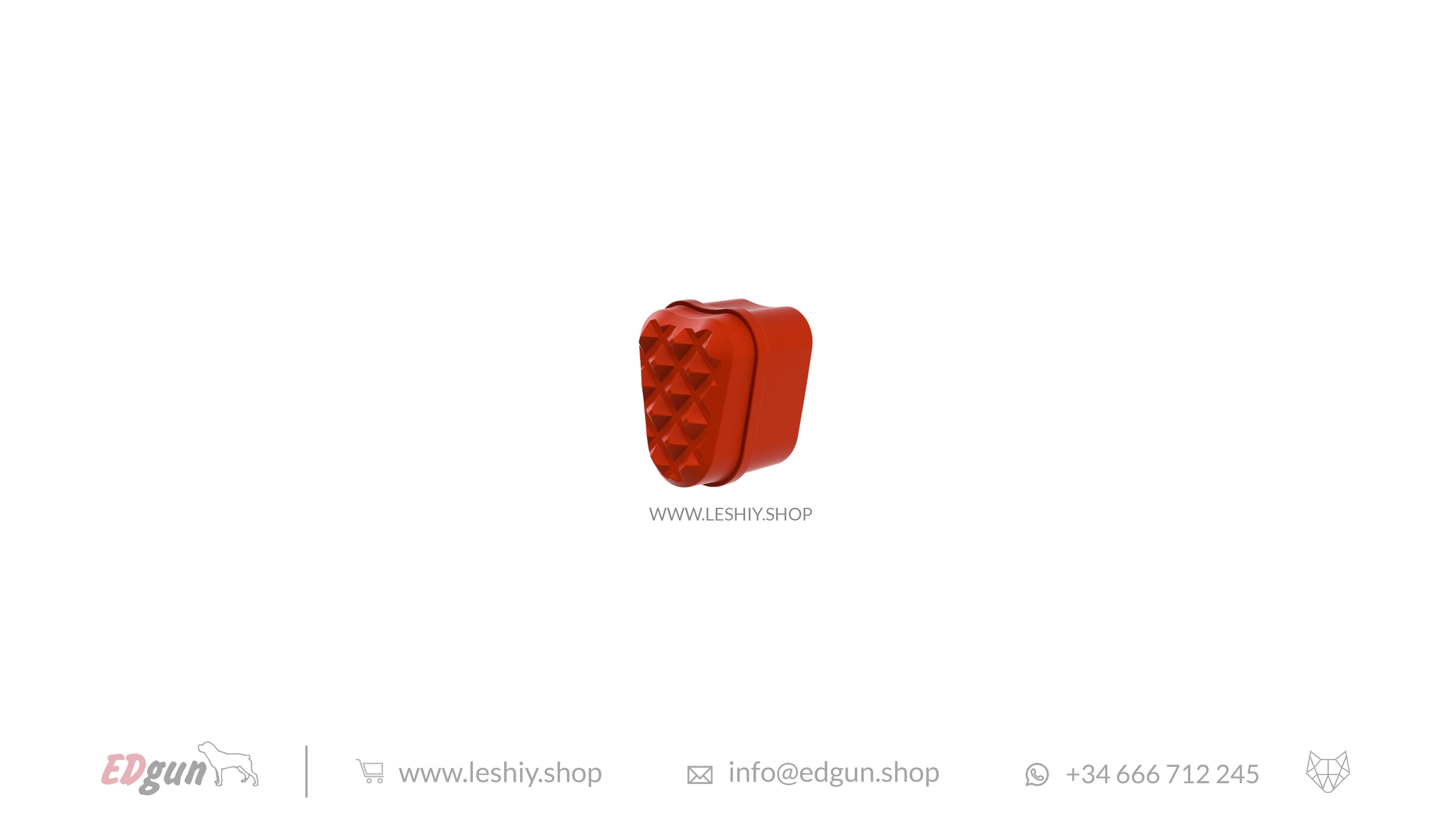

8- Insert - LSA218006 (x1)	24- d3 Ball (x2)
9- Plug - LSA222007 (x1)	25- O-ring 70NBR 4х2 (x1)
10- Sleeve - LSA222009 (x1)	27- O-ring 70NBR 12х1,5 (x2)

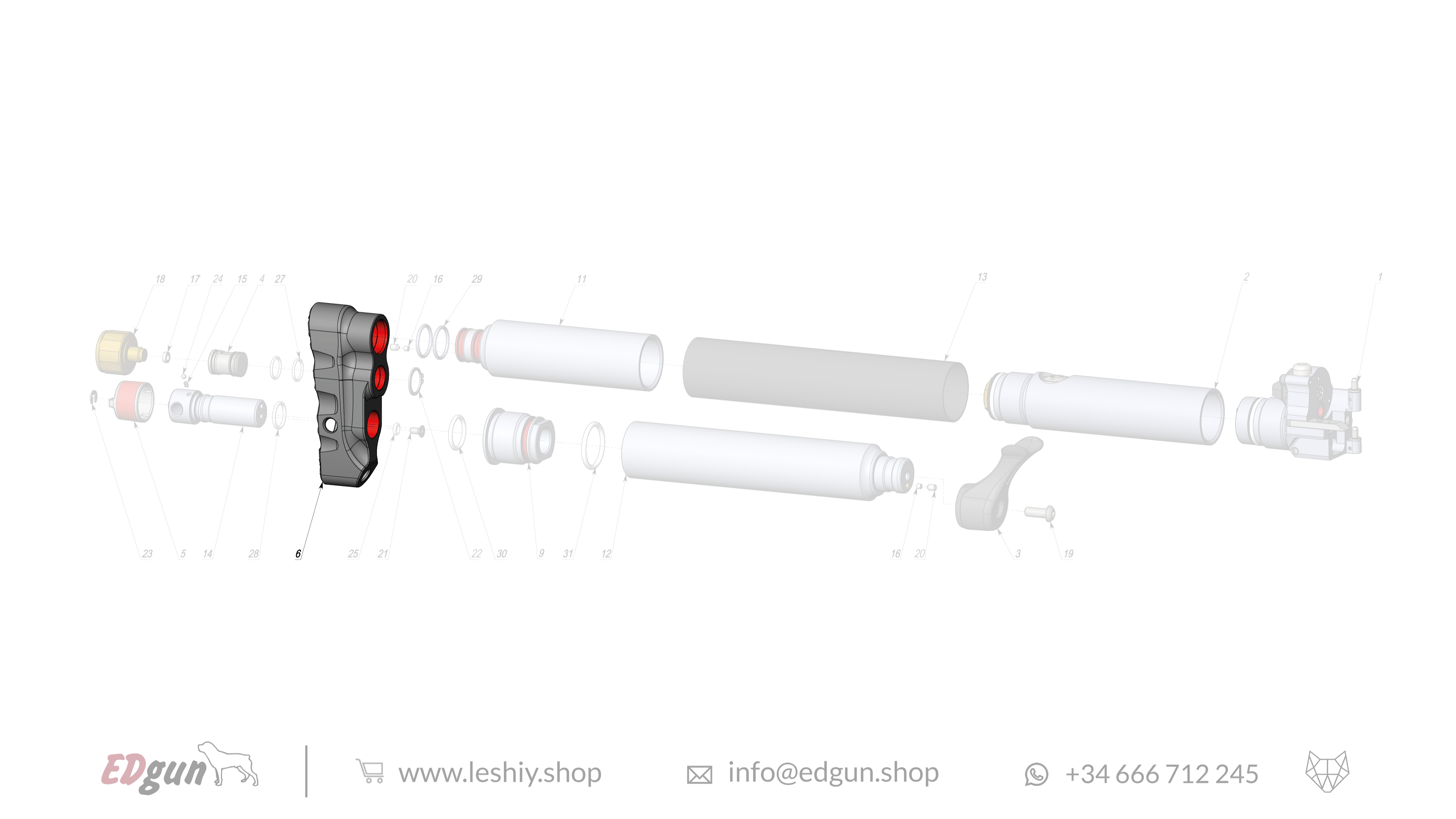

11- Butt/Reservoir - LSA242011-01 (x1)	28- O-ring 70NBR 14х2 (x1)

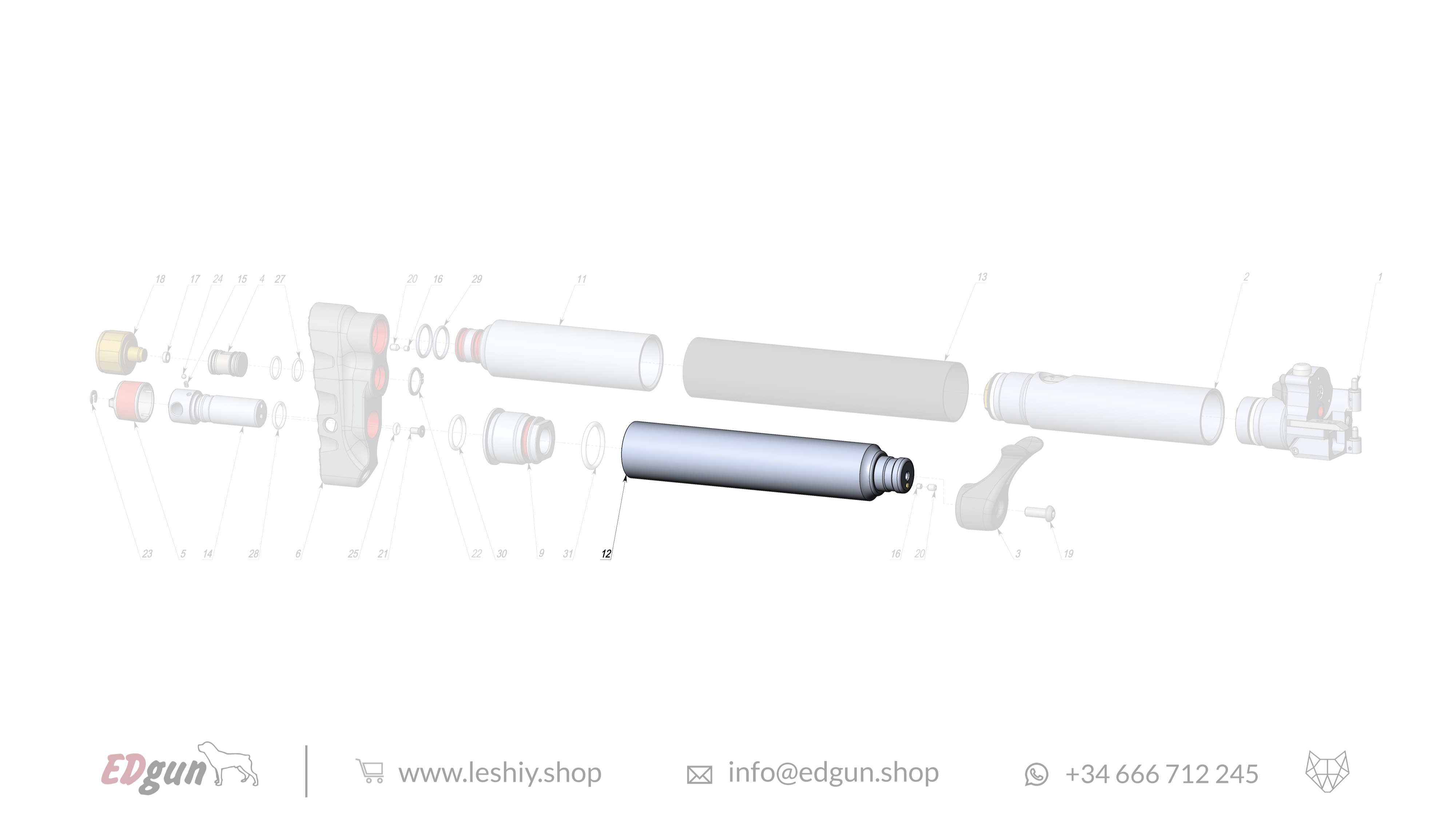

12- Reservoir - LSA242011-00 (x1)	29- O-ring 70NBR 18х2 (x2)
13- Neoprene Cover - LSA222016 (x1)	30- O-ring 70NBR 18х2,5 (x1)
14- Fitting - LSA228004 (x1)	31- O-ring 70NBR 25x3 (x1)
15- Spring 4,5х1,8х3х0,4 (x1)

Inside The Box
