Diamond Clear Image HD Lens, Second Focal Plane, Etched MPX1 Reticle
Zero-Stop Turret System, 1/10 MIL 1cm 0.1 MRAD Adjust, 30mm Monotube,
Side Focus Min 10 Yards, 4.0" Long Eye Relief, IP67, Center Dot Illuminated
TECH SPECS:
- Magnification: 6-24x
- Objective Lens Dia: 50mm
- Ocular Lens Dia: 38mm
- Ocular Lens Length: 60mm
- Exit Pupil: 8.3-2.2mm
- Optics Coating: Diamond Fully-Multi HD
- Field of View: 3.4-0.85°
- Field of View: 17.9-4.5ft@100yds
- Eye Relief: 100mm / 4.0 inch
- Length: 365mm / 14.4 inch
- Weight: 763g / 26.9 oz
- Tube Dia.: 30mm
- Click Value: 0.1 MRAD, 1/10 MIL, 1cm
- Elevation Range: 19.5MIL (60MOA)
- Windage Range: 19.5MIL (60MOA)
- Parallax Adjustment: 10yds to infinite

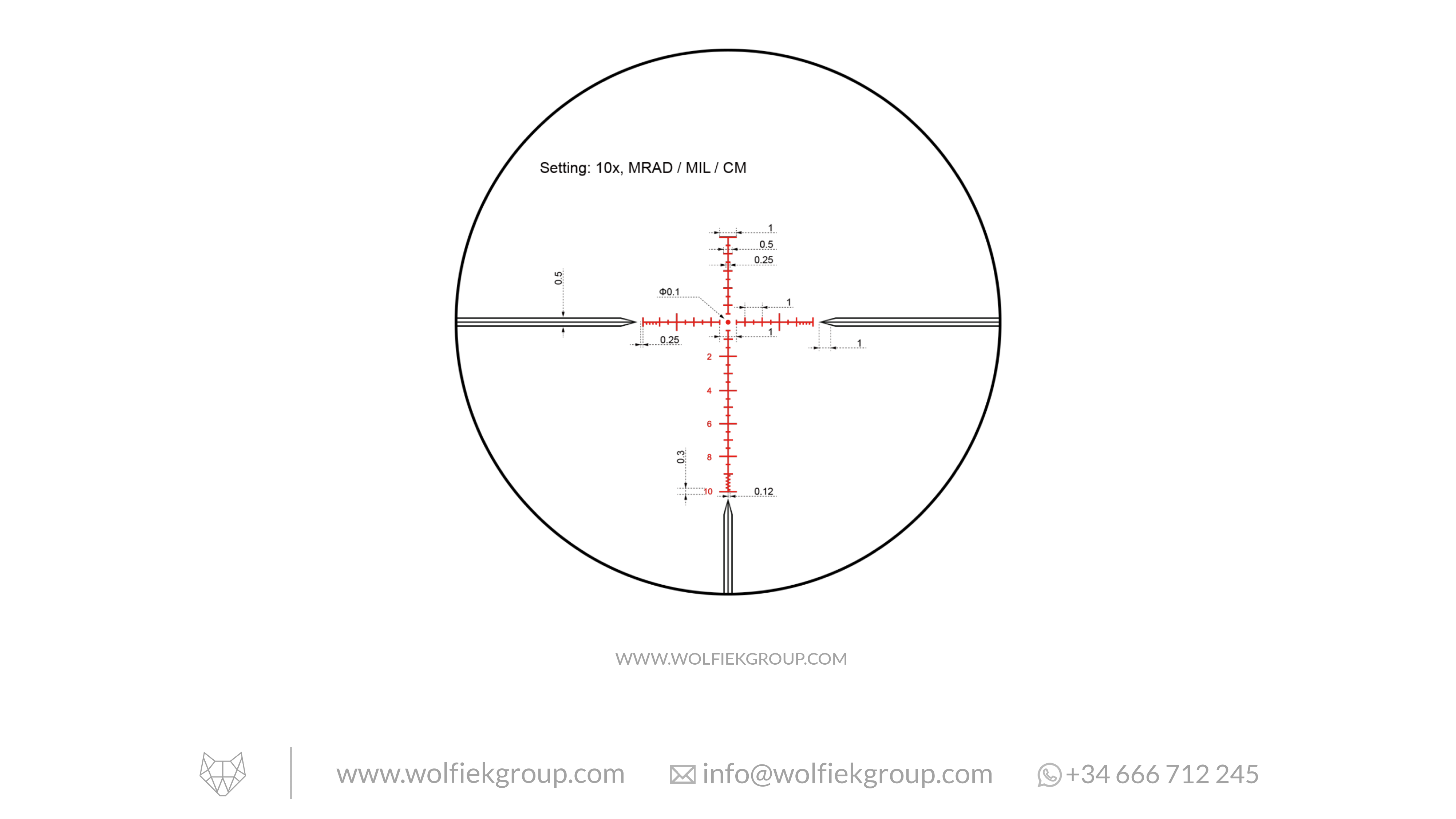

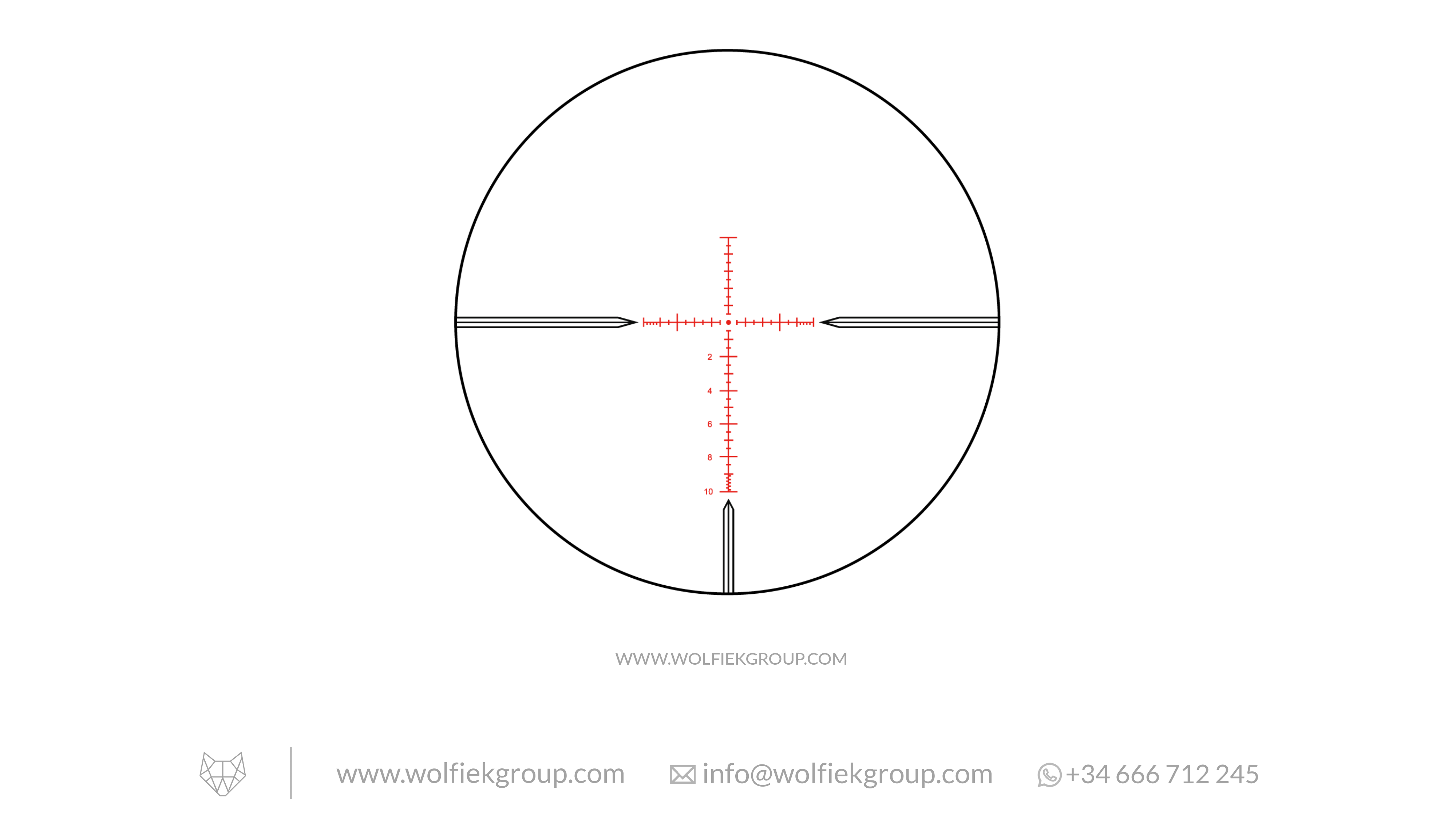

- Reticle: Etched Glass MPX1
- Illumination: 6 levels red
- Battery Type: CR2032
- 30mm hammer-forged aluminum monotube design
- Side focus mark: 10, 15, 20, 25, 30, 40, 50, 60, 75, 100, 150, 200, 300 and infinite
- Shock tested to 1000g, water proof IP67 and fully nitrogen purged

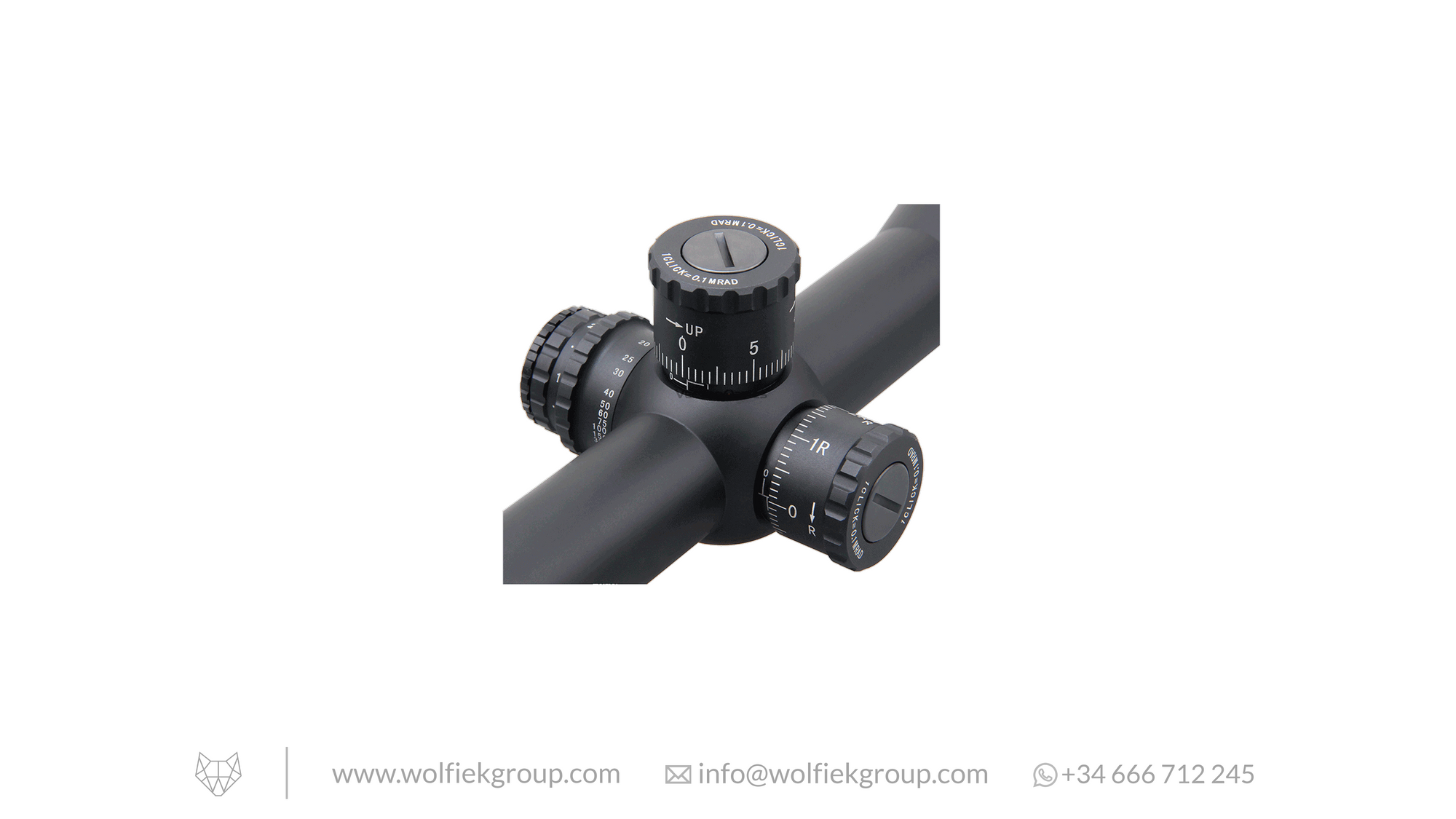

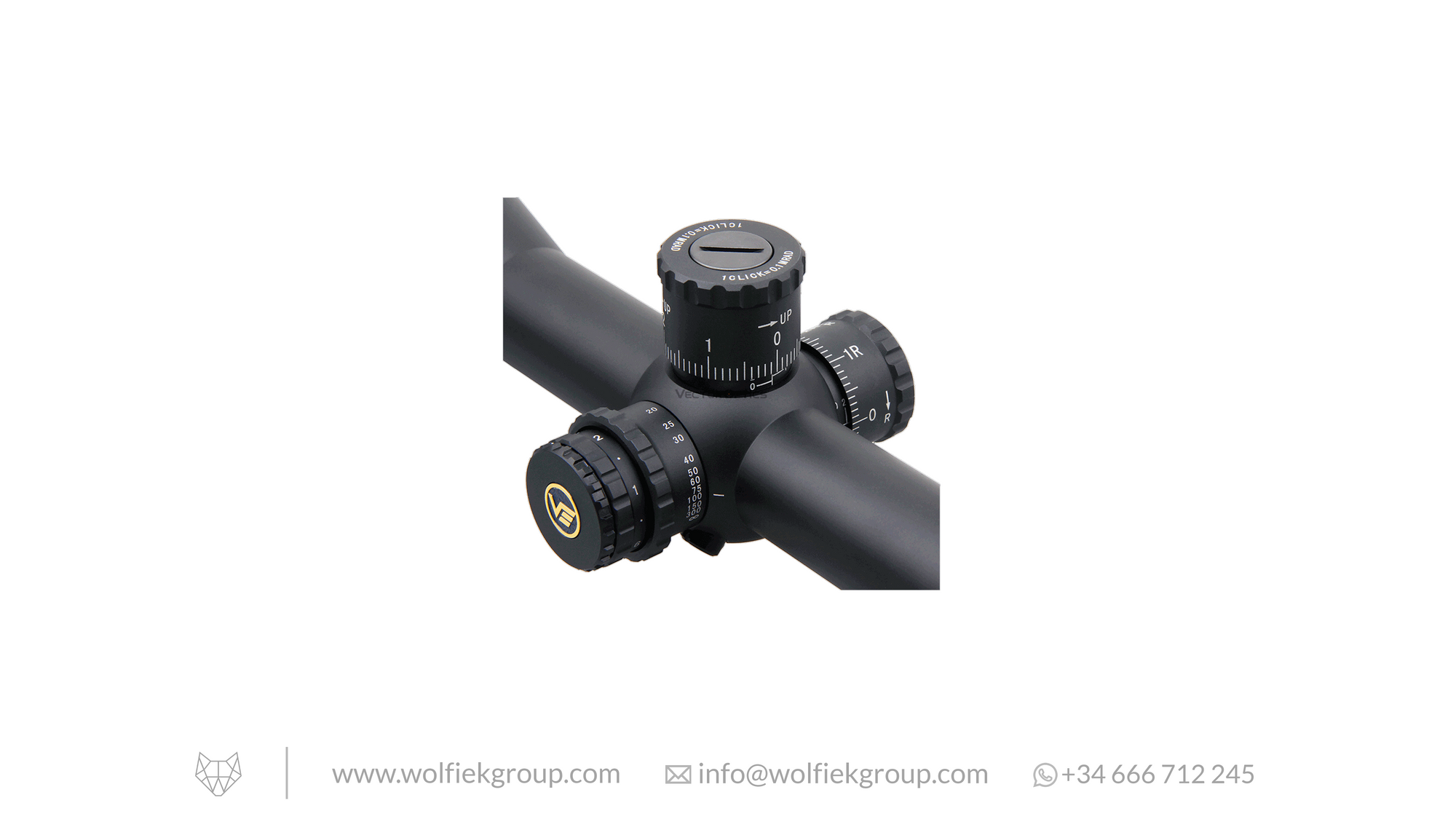

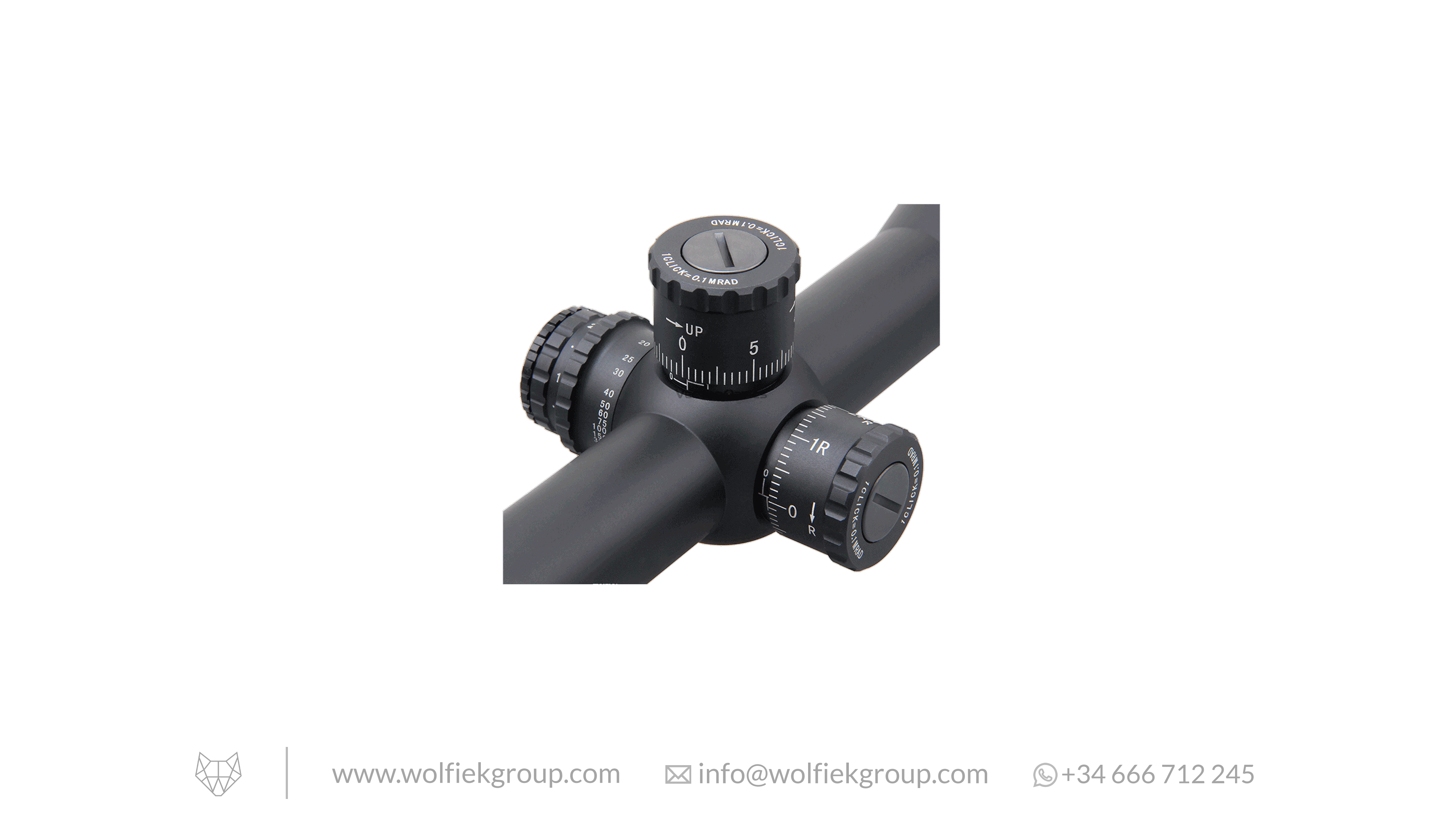

- Zero-stop turret system with up and down travel
- IP67 water proof for 30min 1 meter depth water
- Diopter compensation from fast-focus eyepiece -2 to +2
- Including items: one pair of 30mm picatinny scope rings, cleaning cloth, instruction, lens cap
