Leshiy 2 · Spare Parts: Reservoir/Butt
€19,00
Descripción

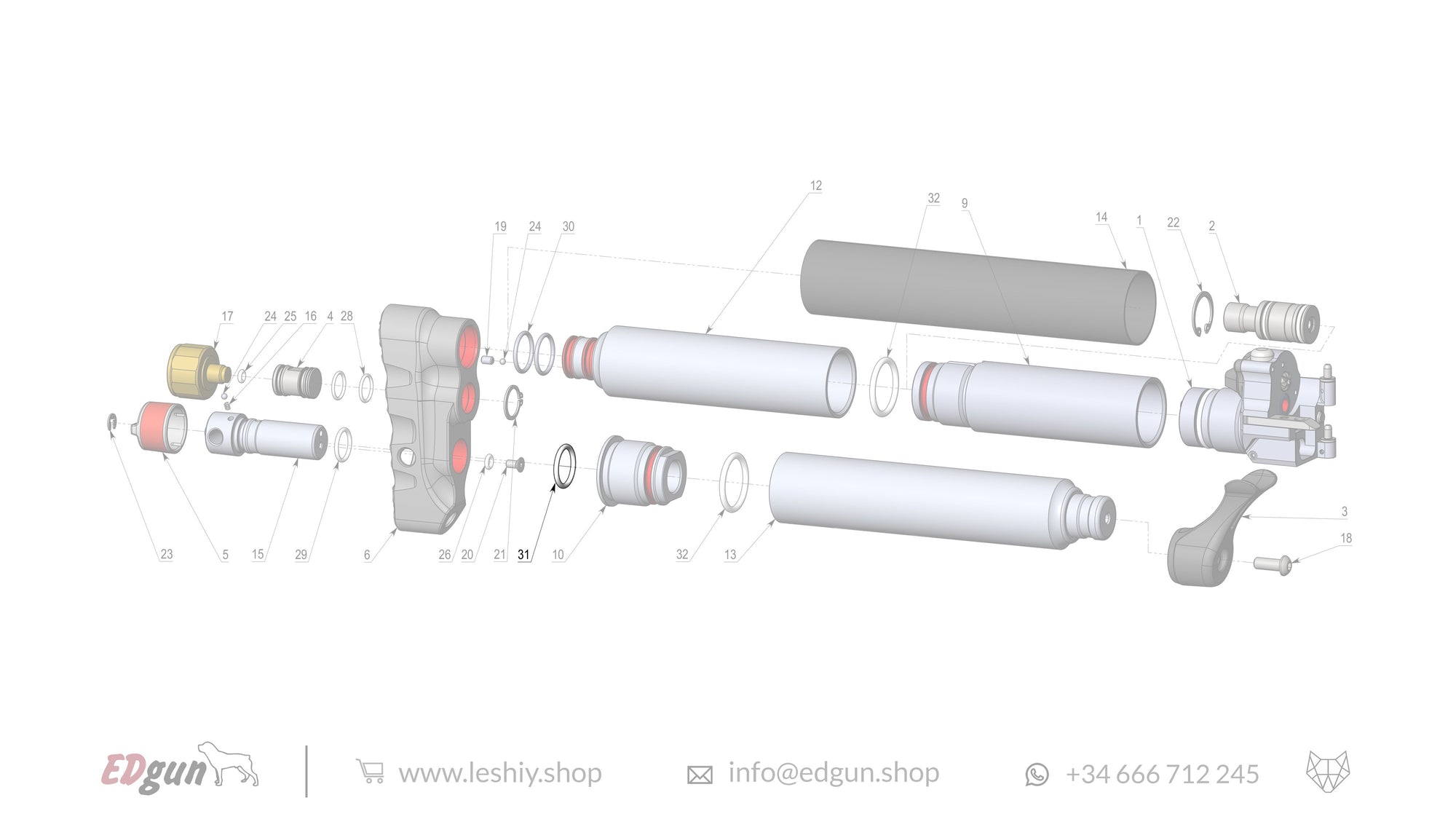

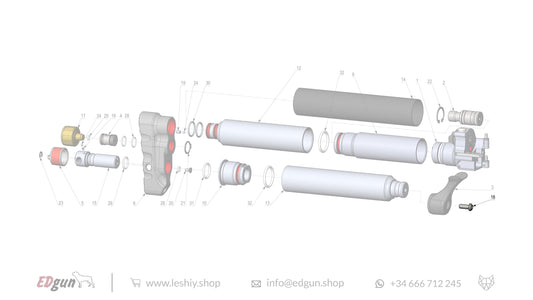

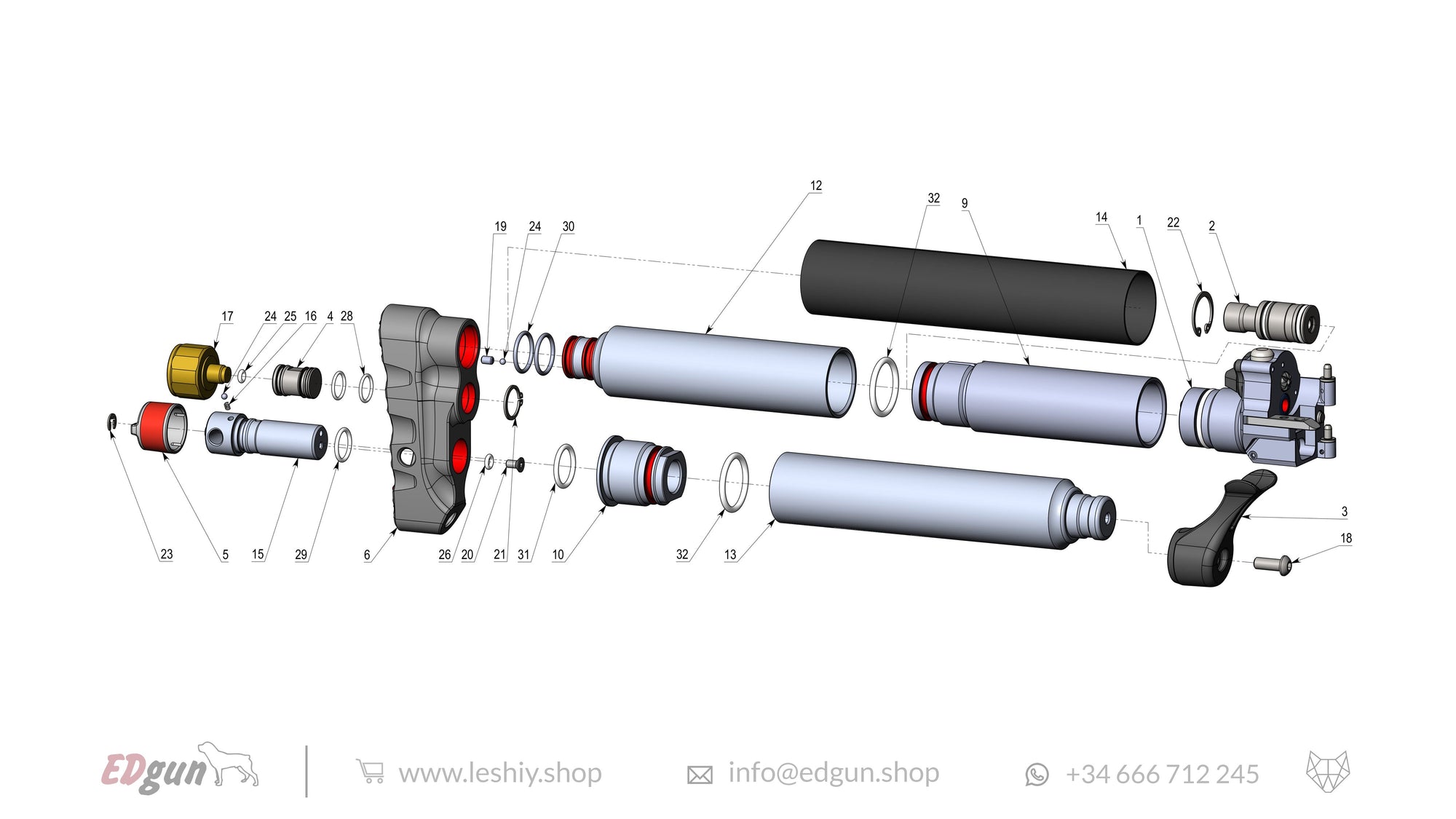

References | |

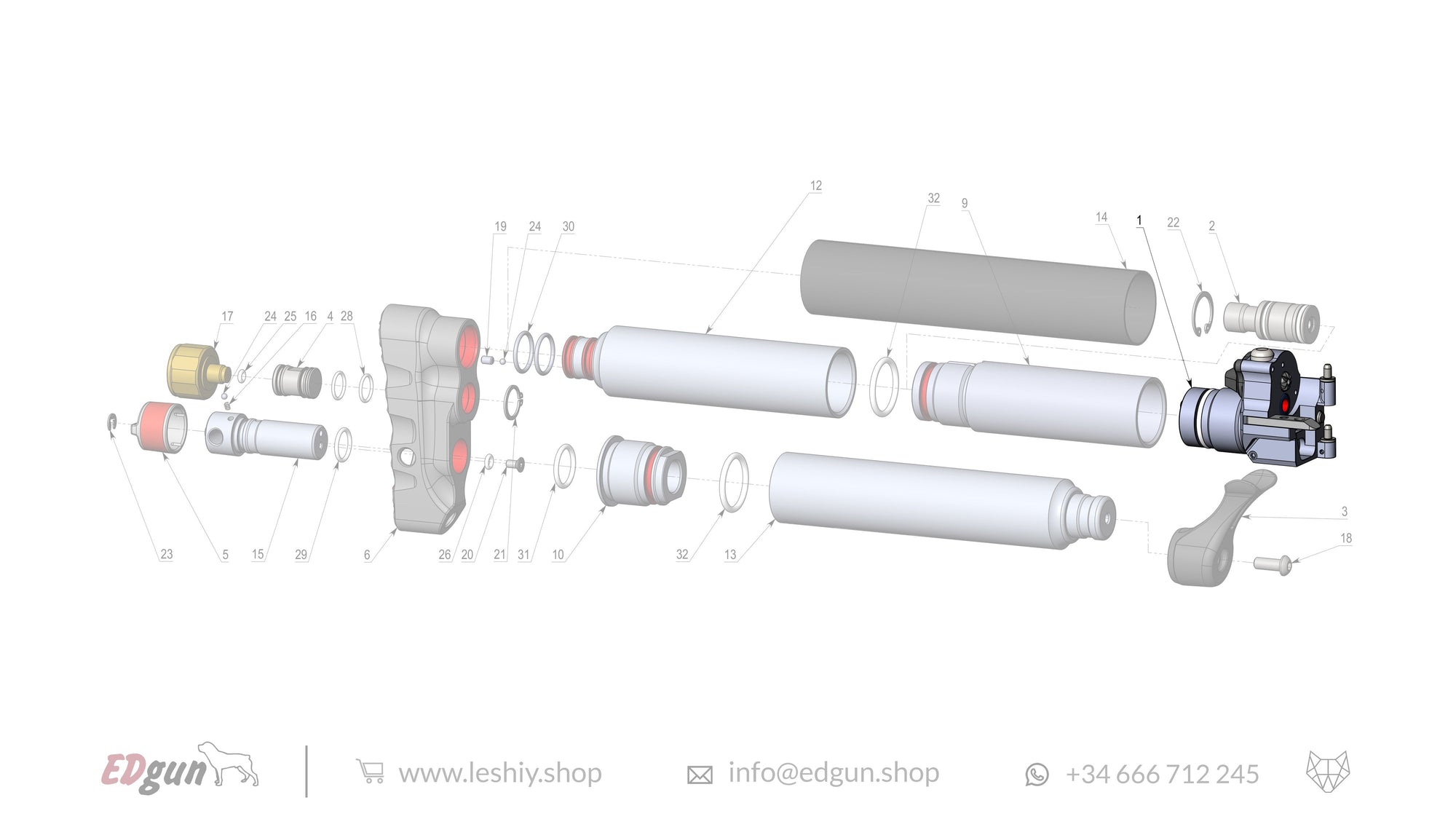

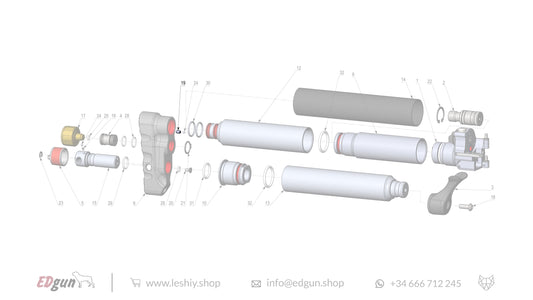

1- Forward Plug - LSA222200 (x1) | 18- Screw М6х16 10.9 ISO7380-1 (x1) |

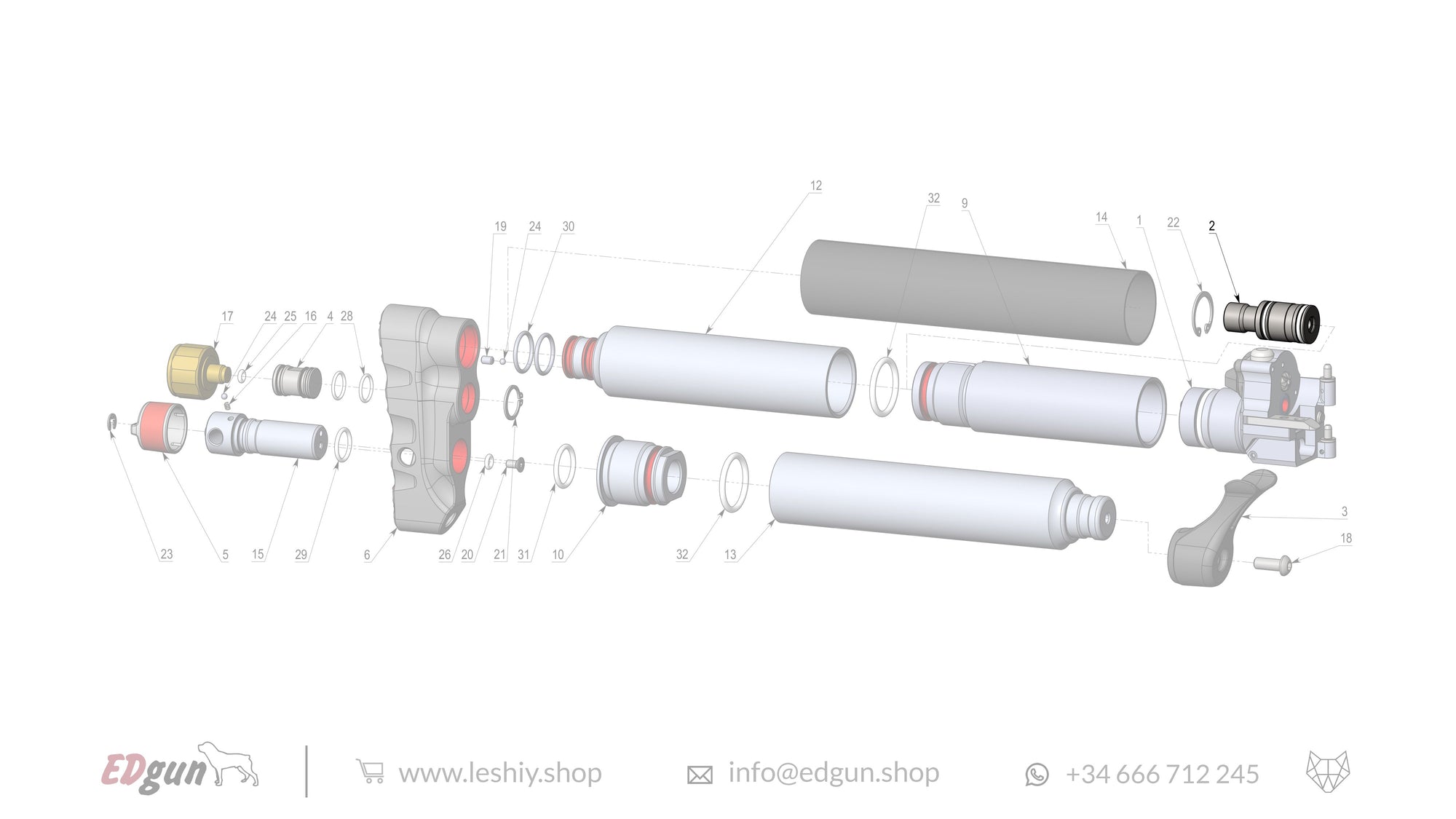

2- Air regulator - LSA222500 | 19- Screw М4х6 10.9 DIN913 (x1) |

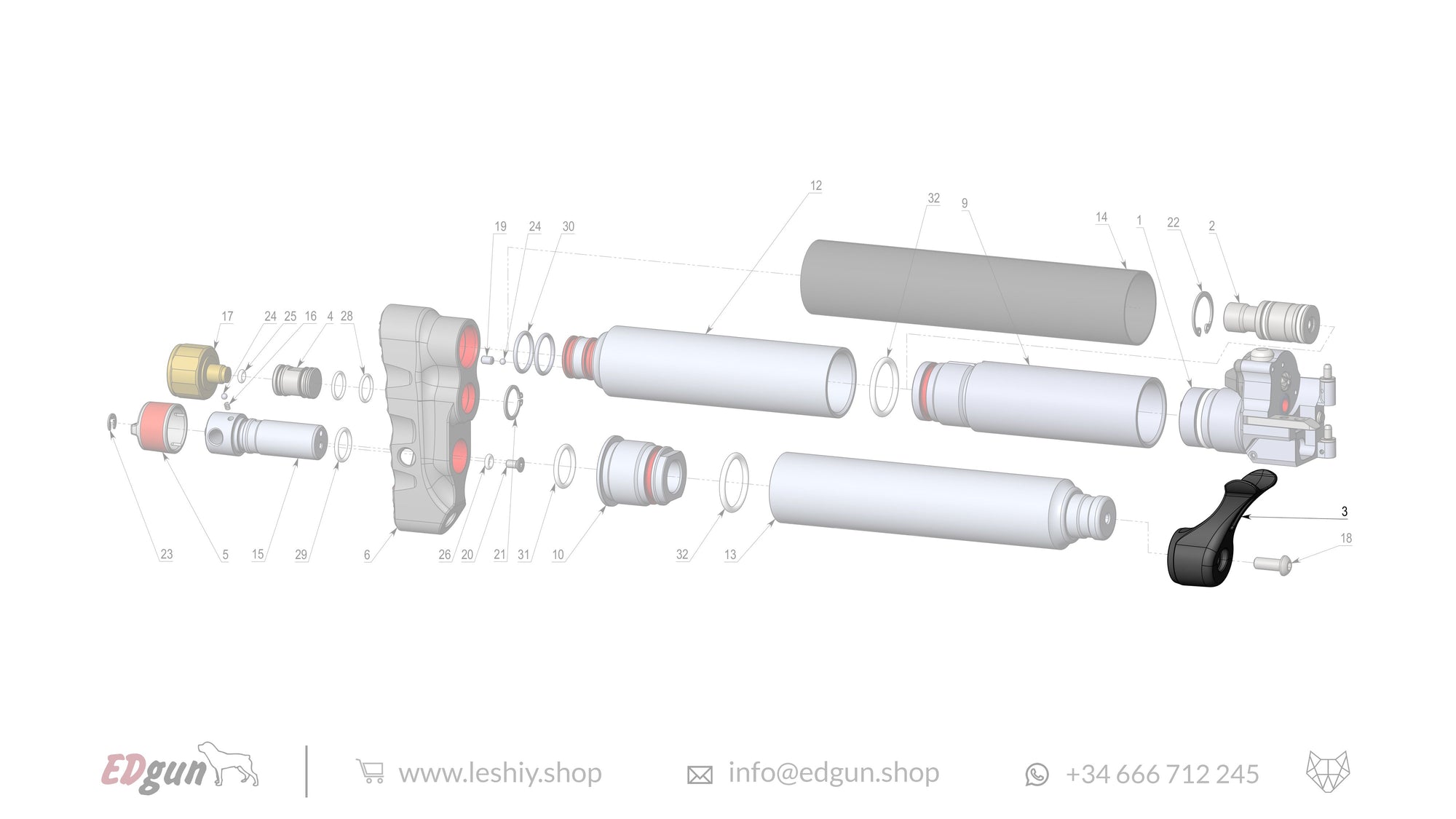

3- Bracket - LSA202014 (x1) | 20- Screw М4х8 А4 DIN7991 (x1) |

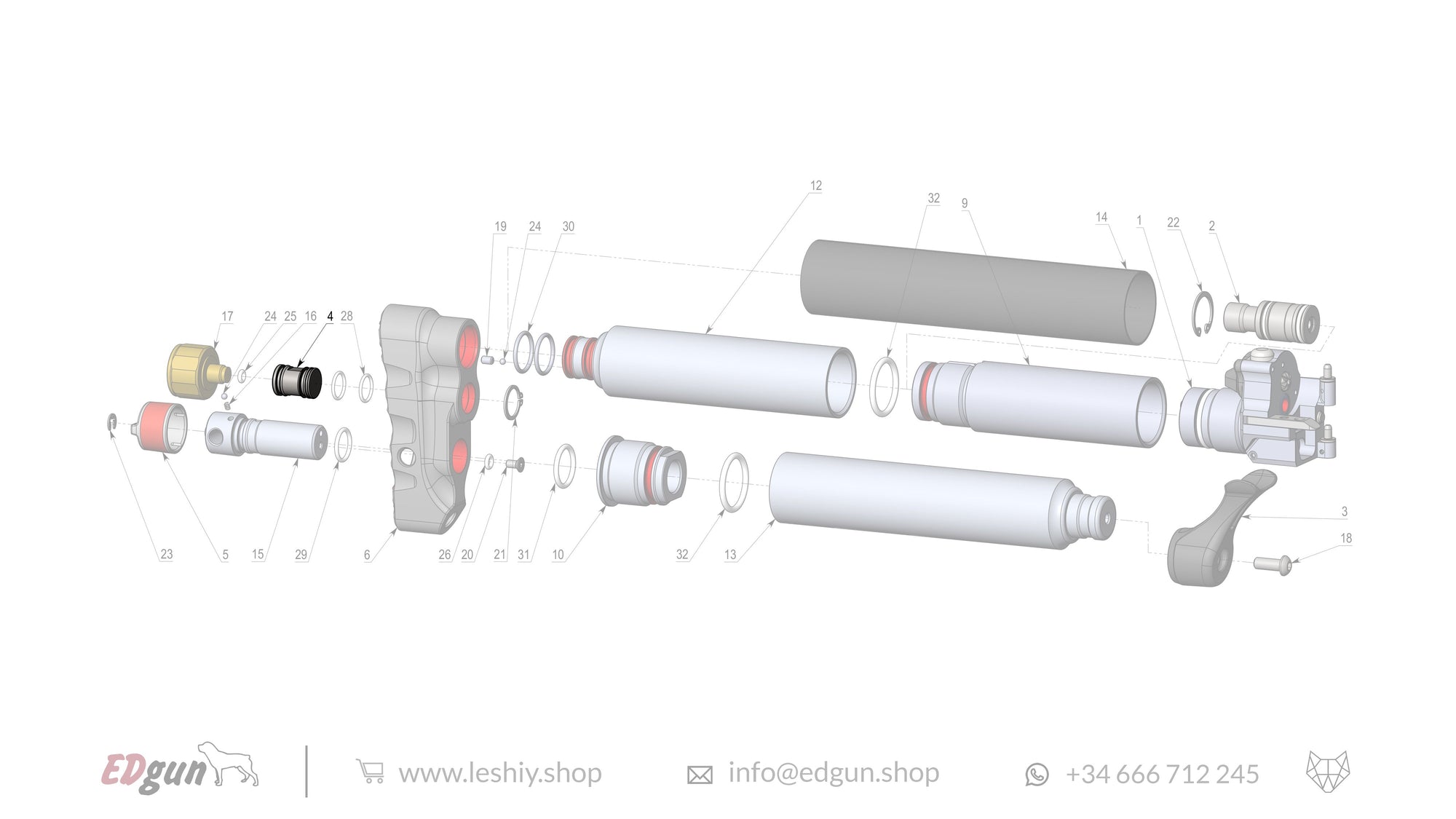

4- Plug - LSA212007 (x1) | 21- Ring 16 DIN471 (x1) |

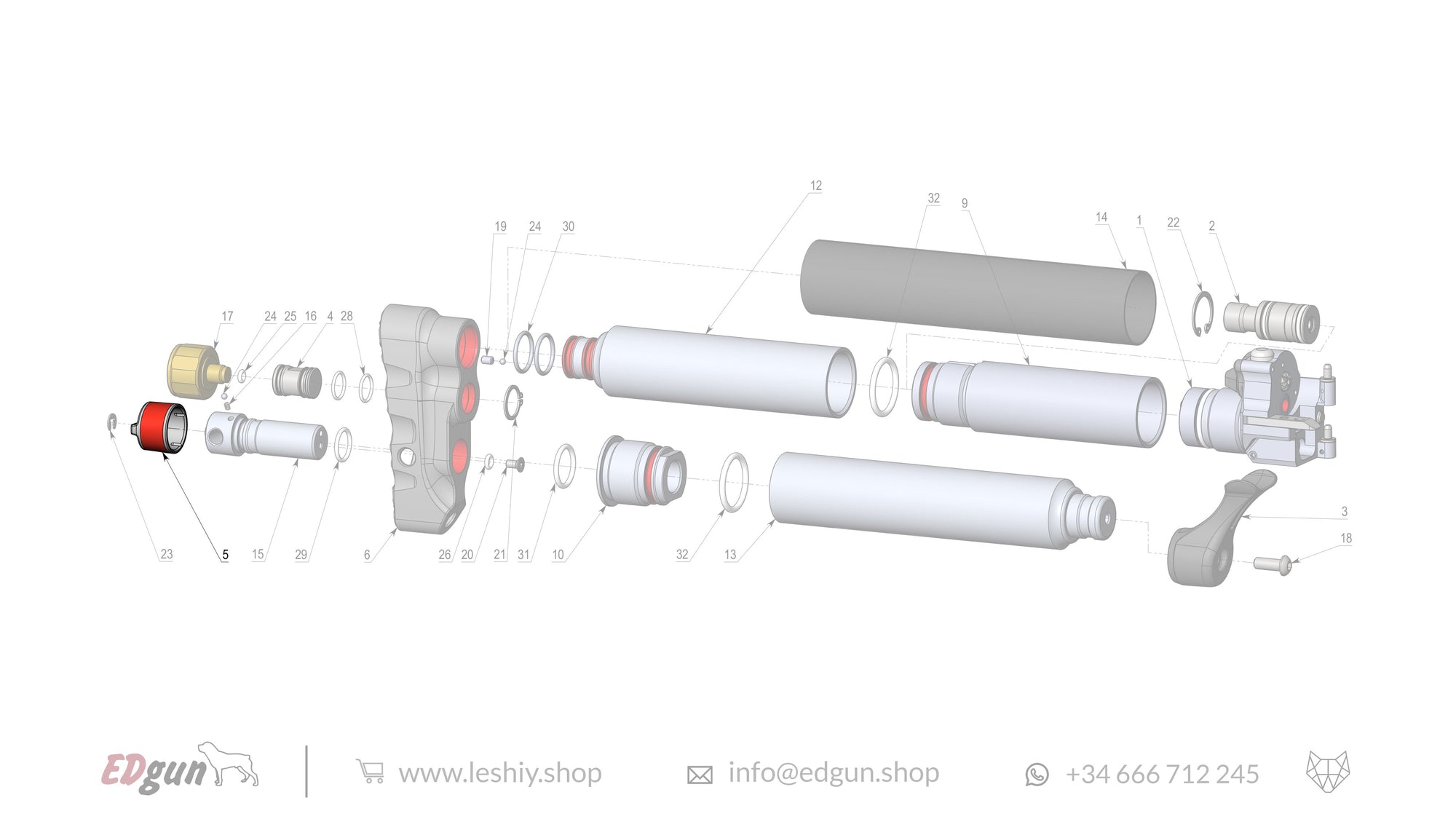

5- Cover - LSA212013 | 22- Ring 22 DIN472 (x1) |

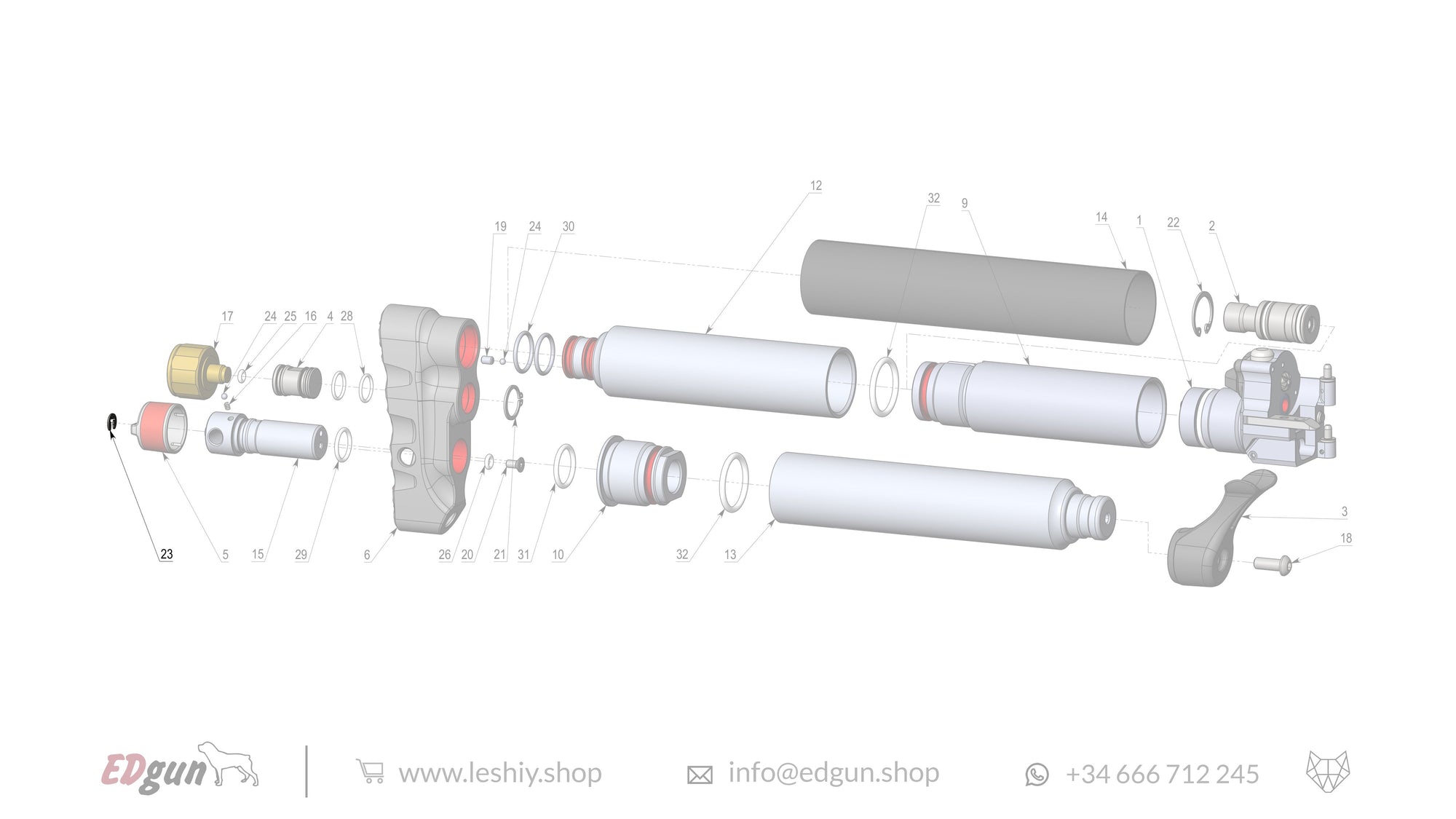

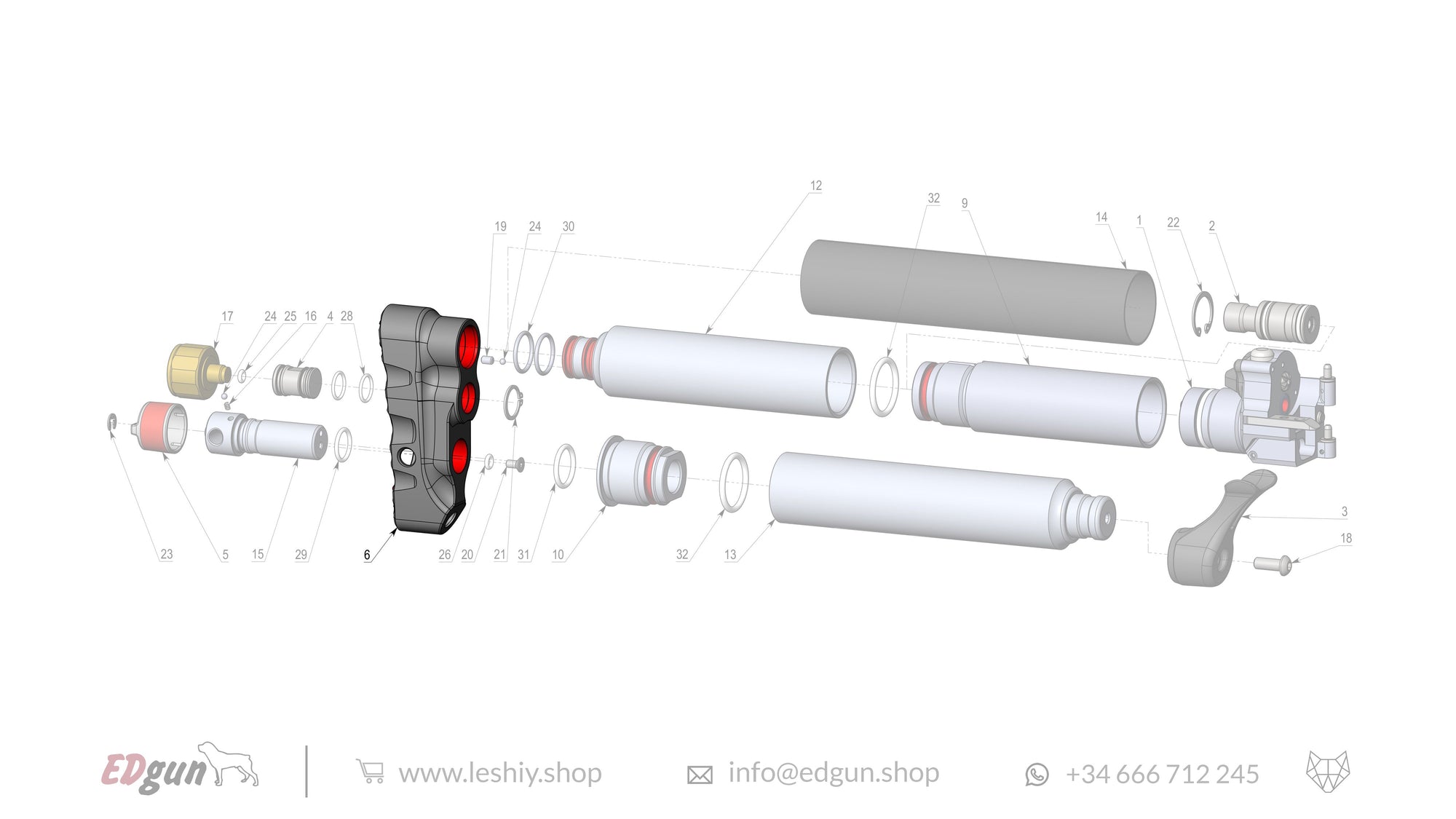

6- Buttpad - LSA216006 (x1) | 23- Washer 4 DIN6799 (x1) |

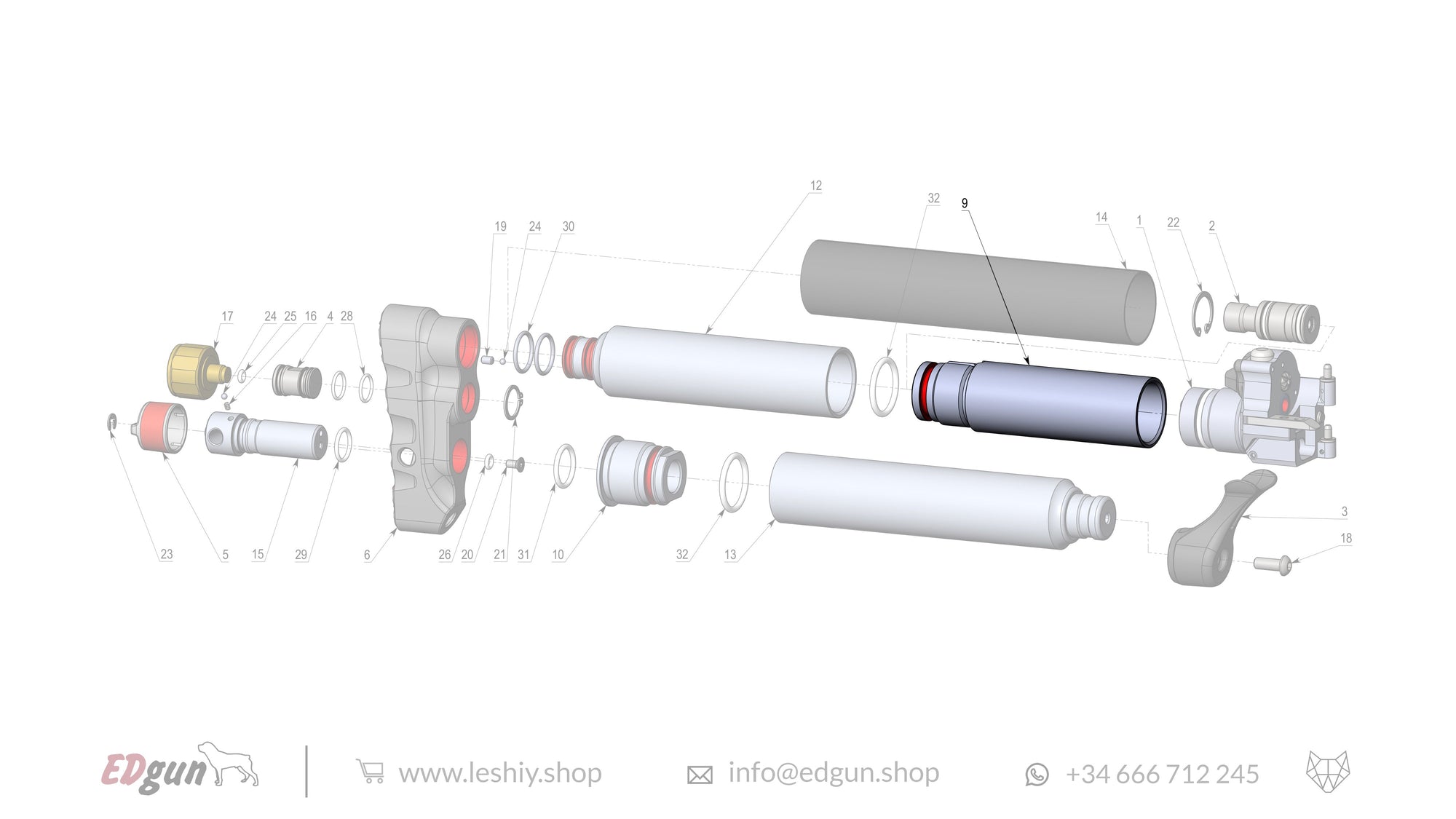

9- Plenum | 24- d3 Bola (x2) |

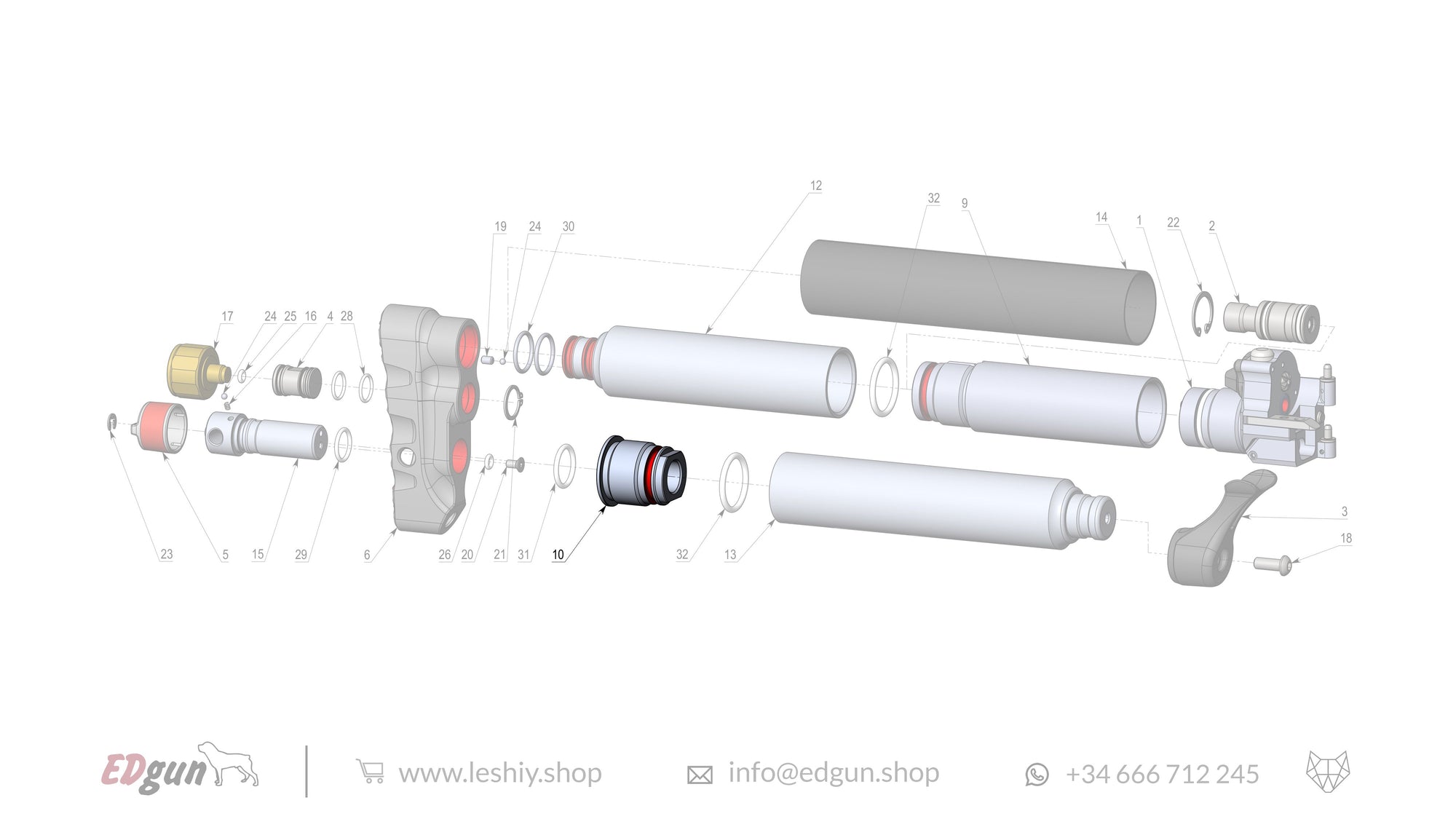

10- Plug - LSA222007 (x1) | 25- O-ring 70NBR 3х2 (x1) |

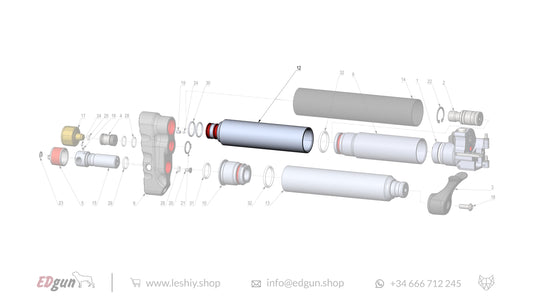

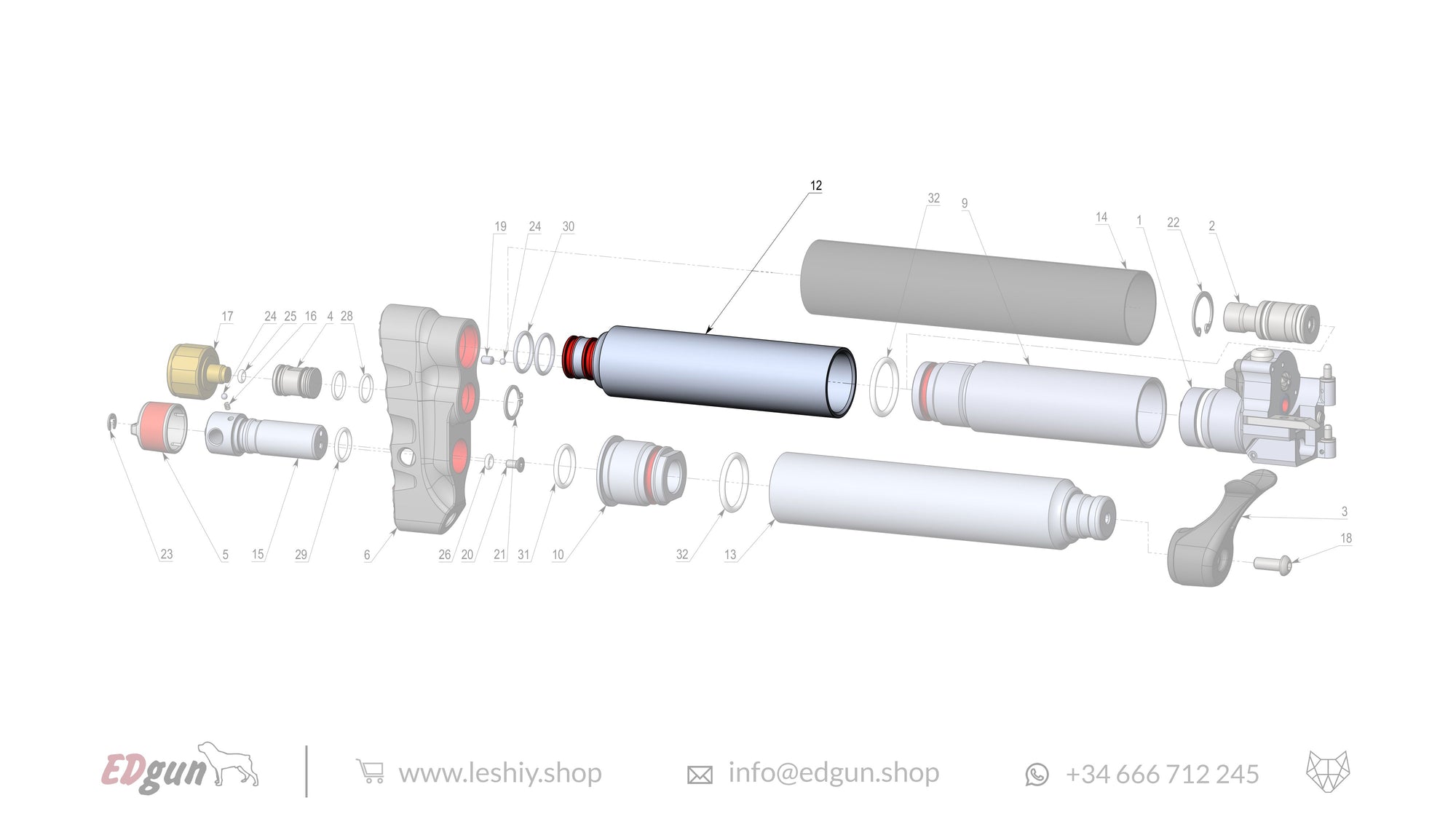

12- Butt / reservoir - LSA222011-01 | 26- O-ring 70NBR 4х2 (x1) |

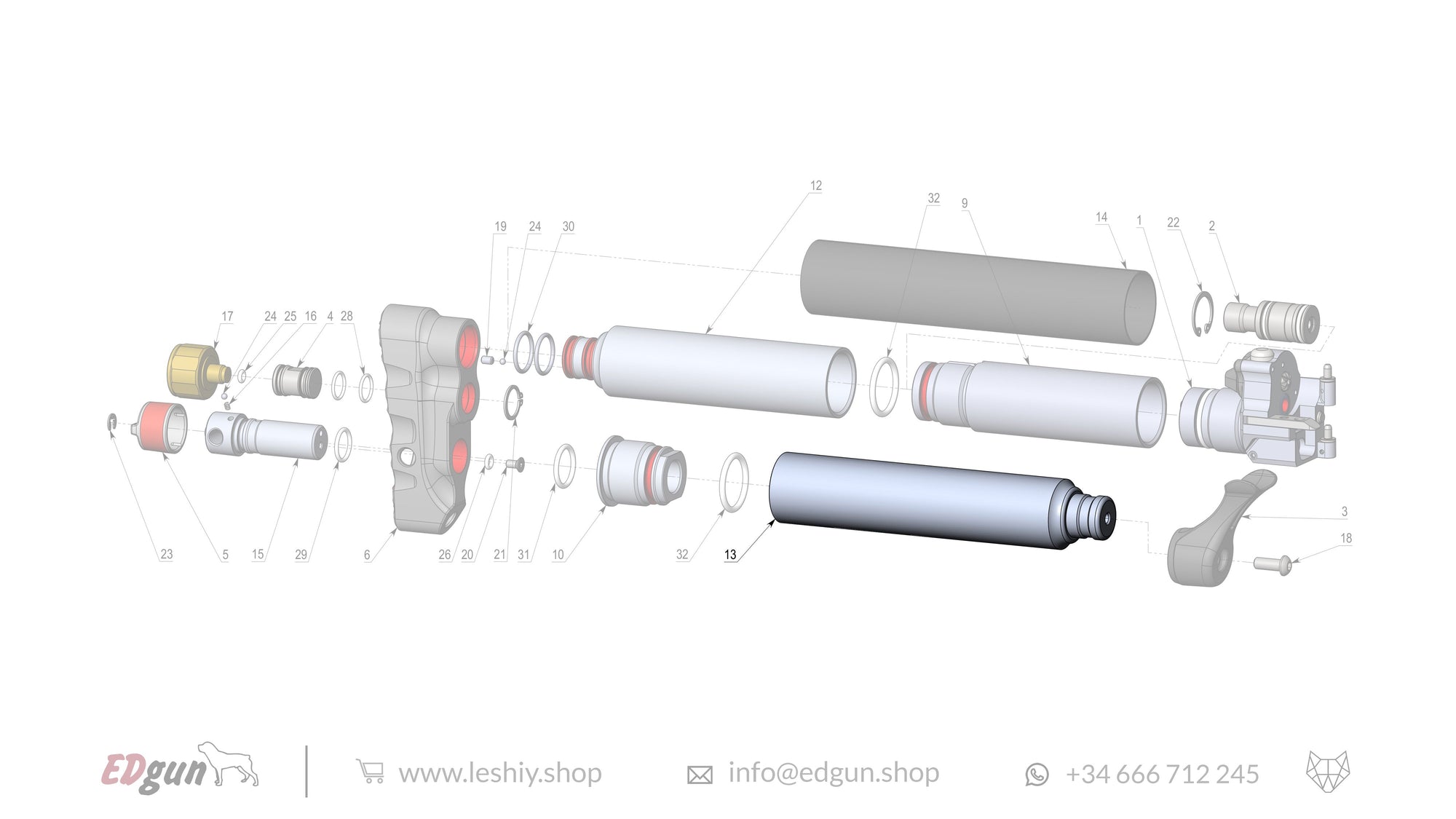

13- Reservori - LSA222011-00 (x1) | 28- O-ring 70NBR 12х1,5 (x2) |

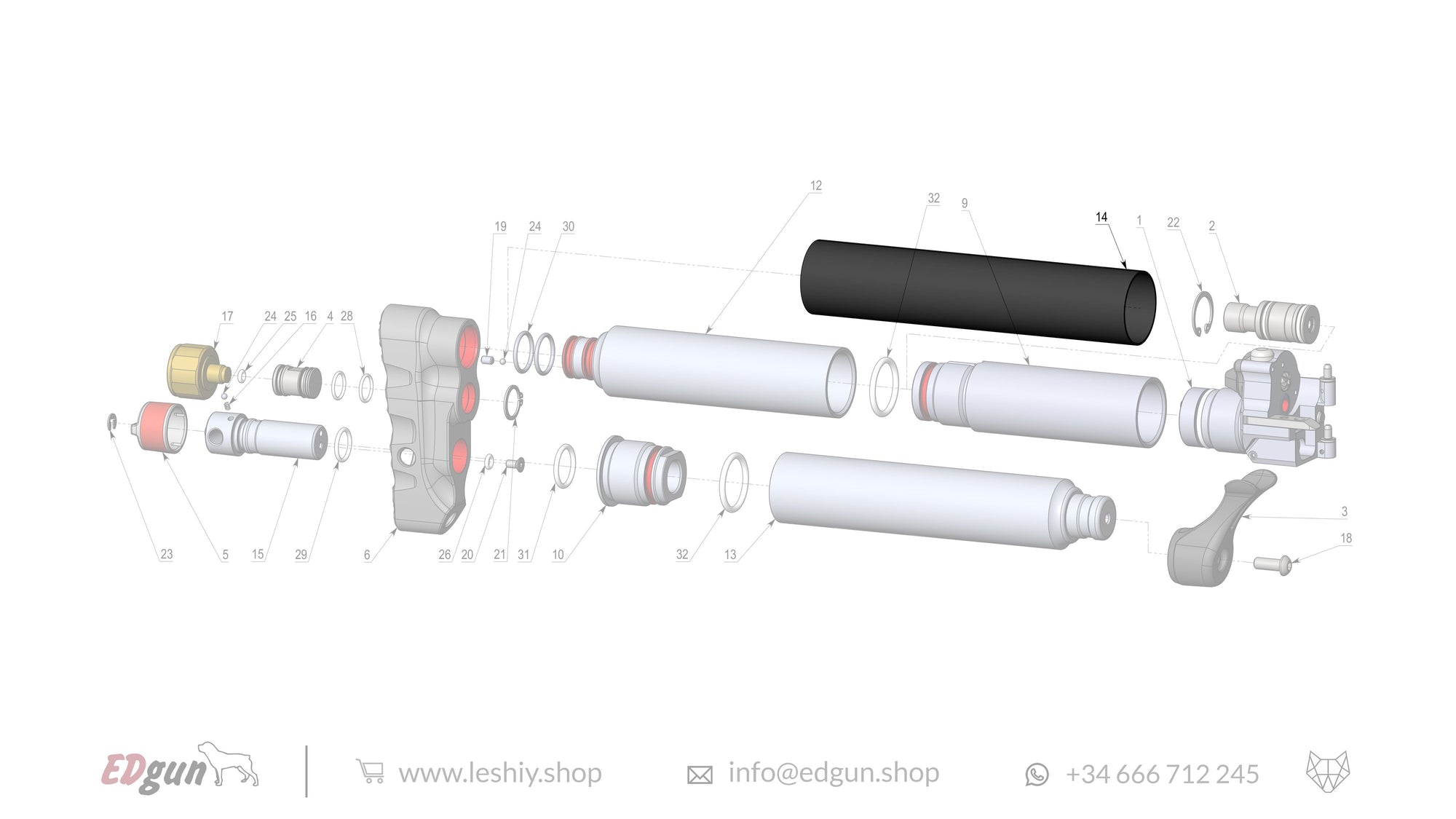

14- Neoprene Cover - LSA222016 (x1) | 29- O-ring 70NBR 14х2 (x1) |

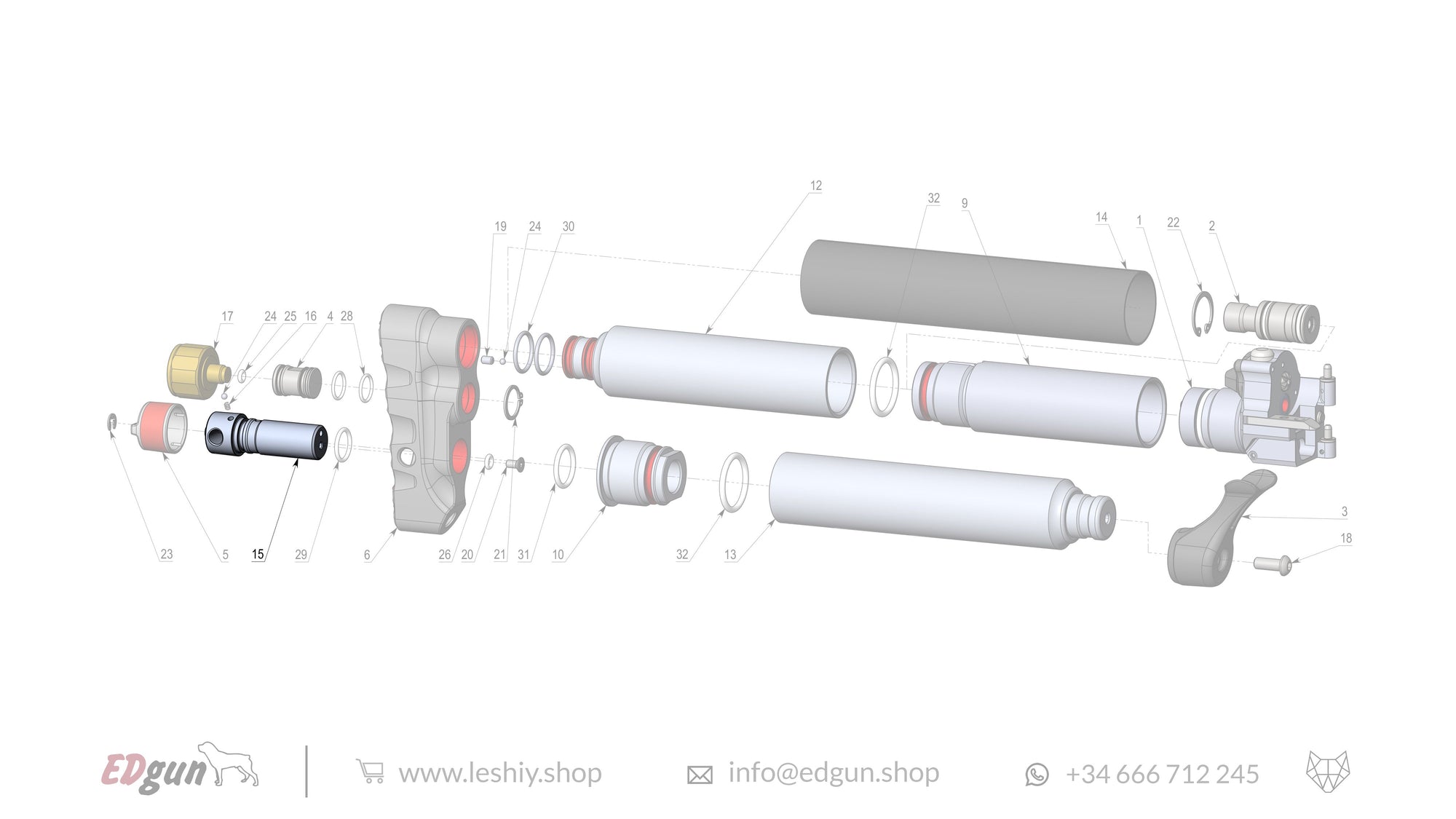

15- Fitting - LSA228004 (x1) | 30- O-ring 70NBR 18х2 (x2) |
16- Spring 4,5х1,8х3х0,4 (x1) | 31- O-ring 70NBR 18х2,5 (x1) |

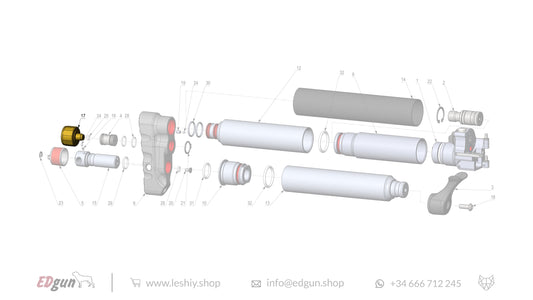

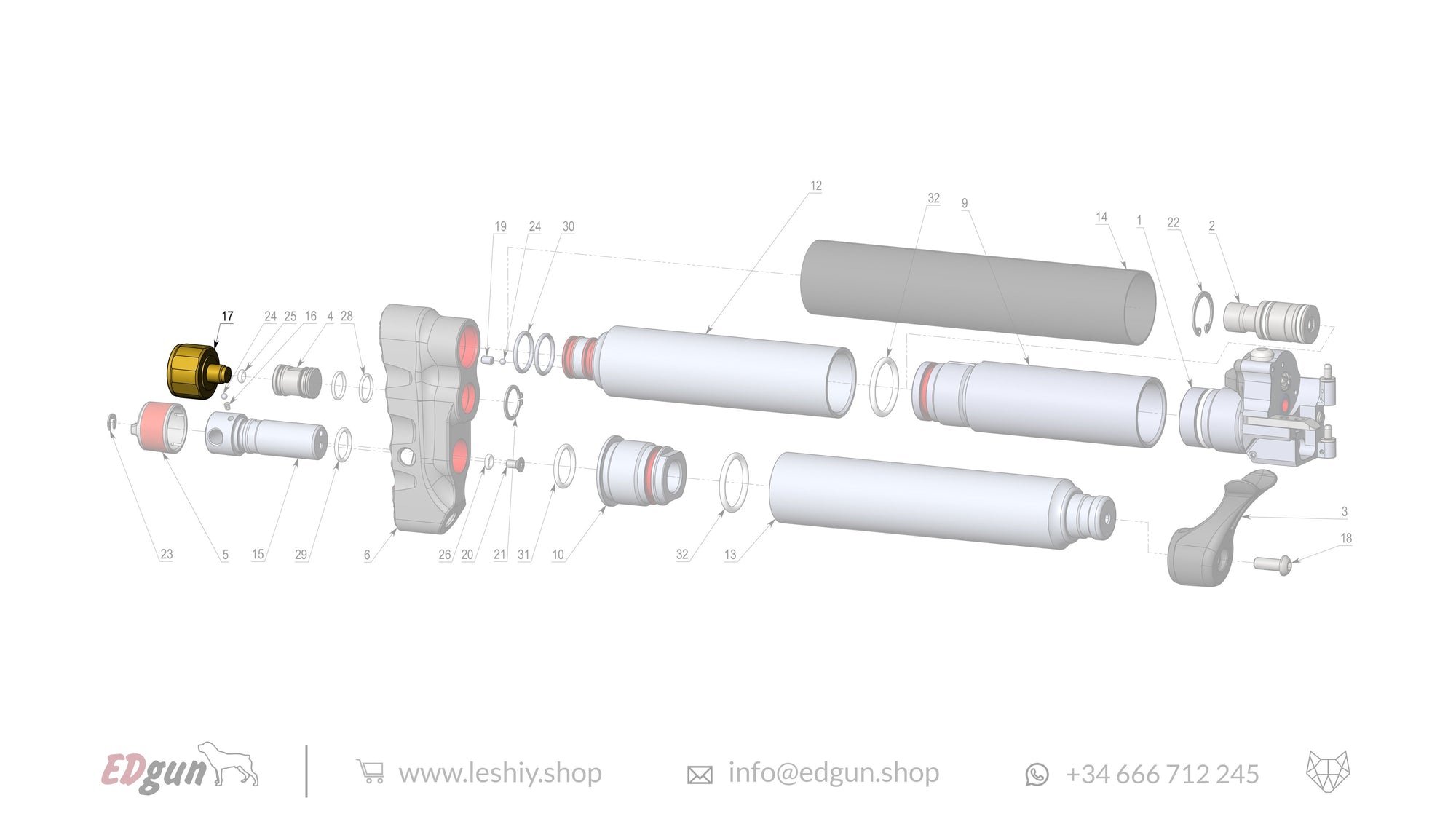

17- EDgun Air Gauge | 32- O-ring 70NBR 25х3 (x2) |
