Leshiy 2 · Spare Parts: Reservoir/Butt
Leshiy 2 · Spare Parts: Reservoir/Butt
€19,00
Descripción
| References | |

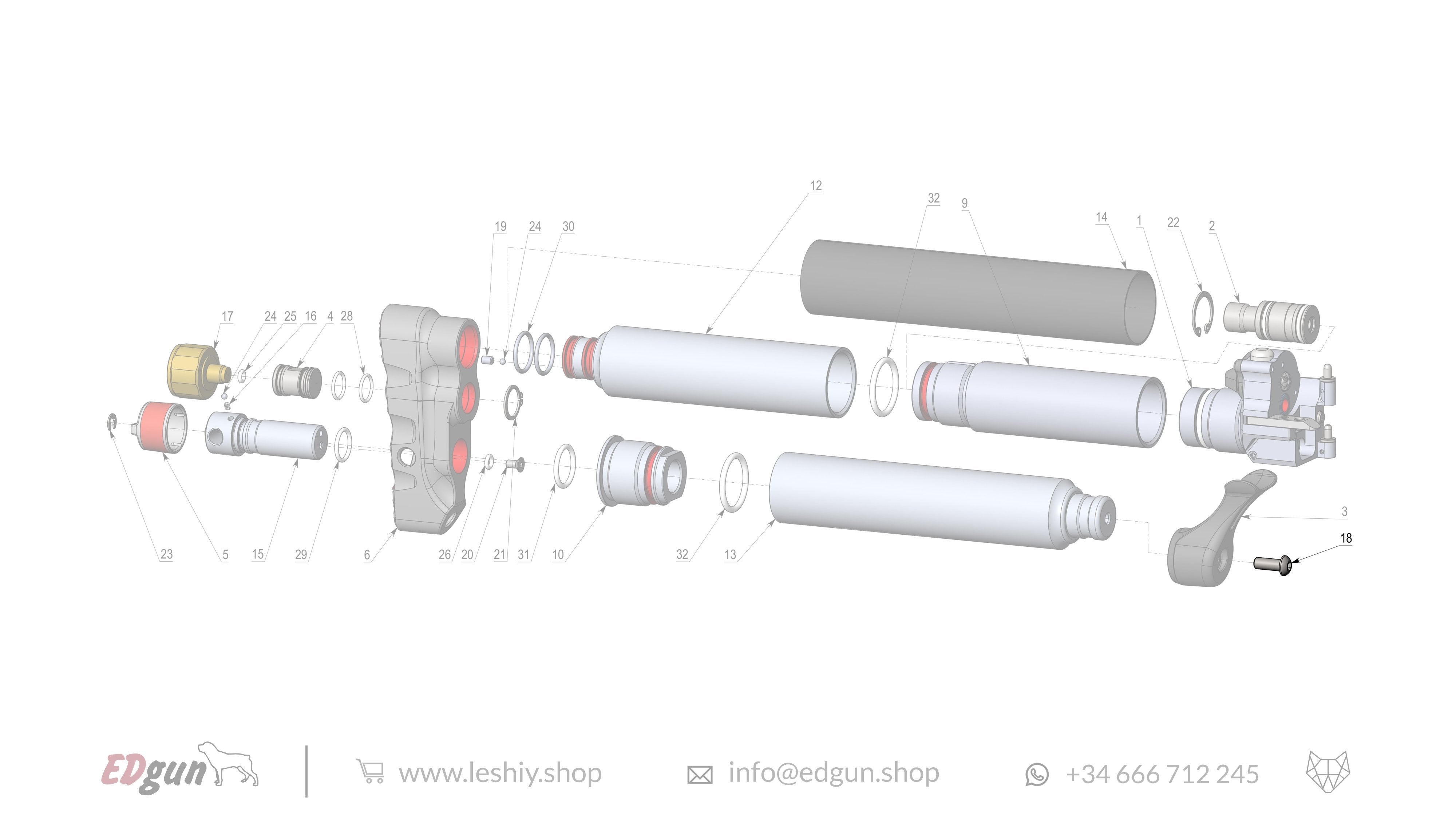

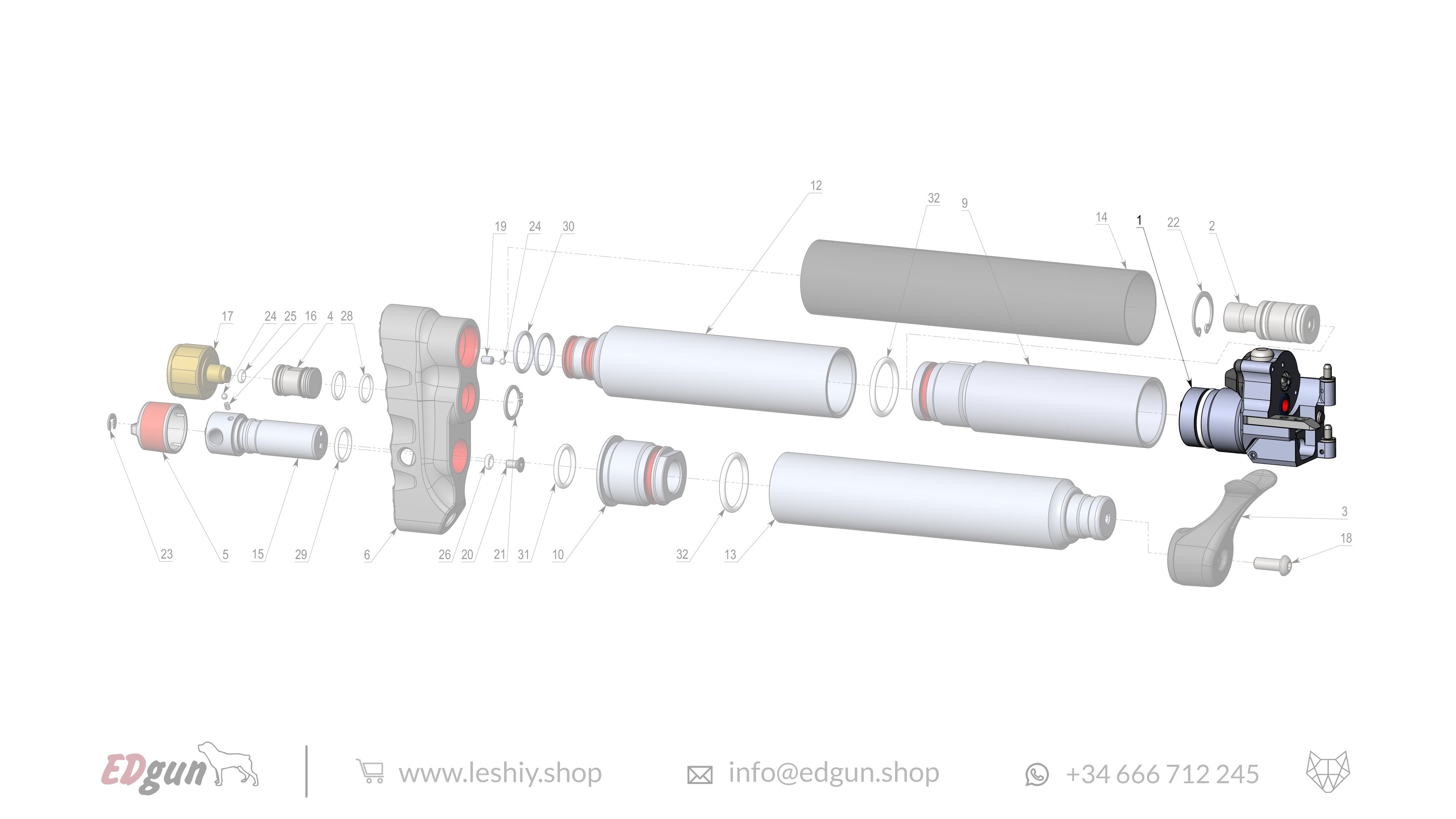

| 1- Forward Plug - LSA222200 (x1) | 18- Screw М6х16 10.9 ISO7380-1 (x1) |

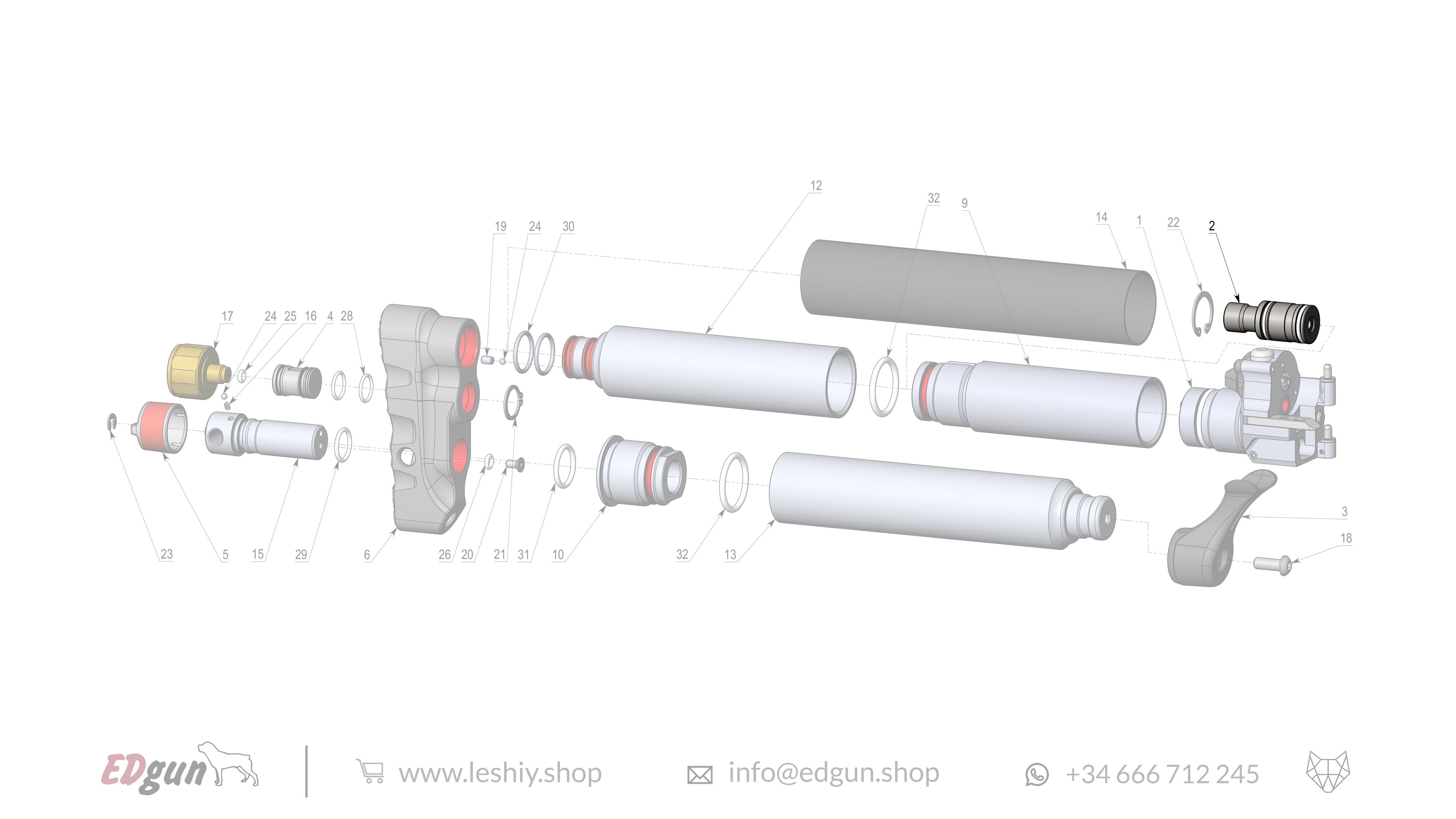

| 2- Air regulator - LSA222500 | 19- Screw М4х6 10.9 DIN913 (x1) |

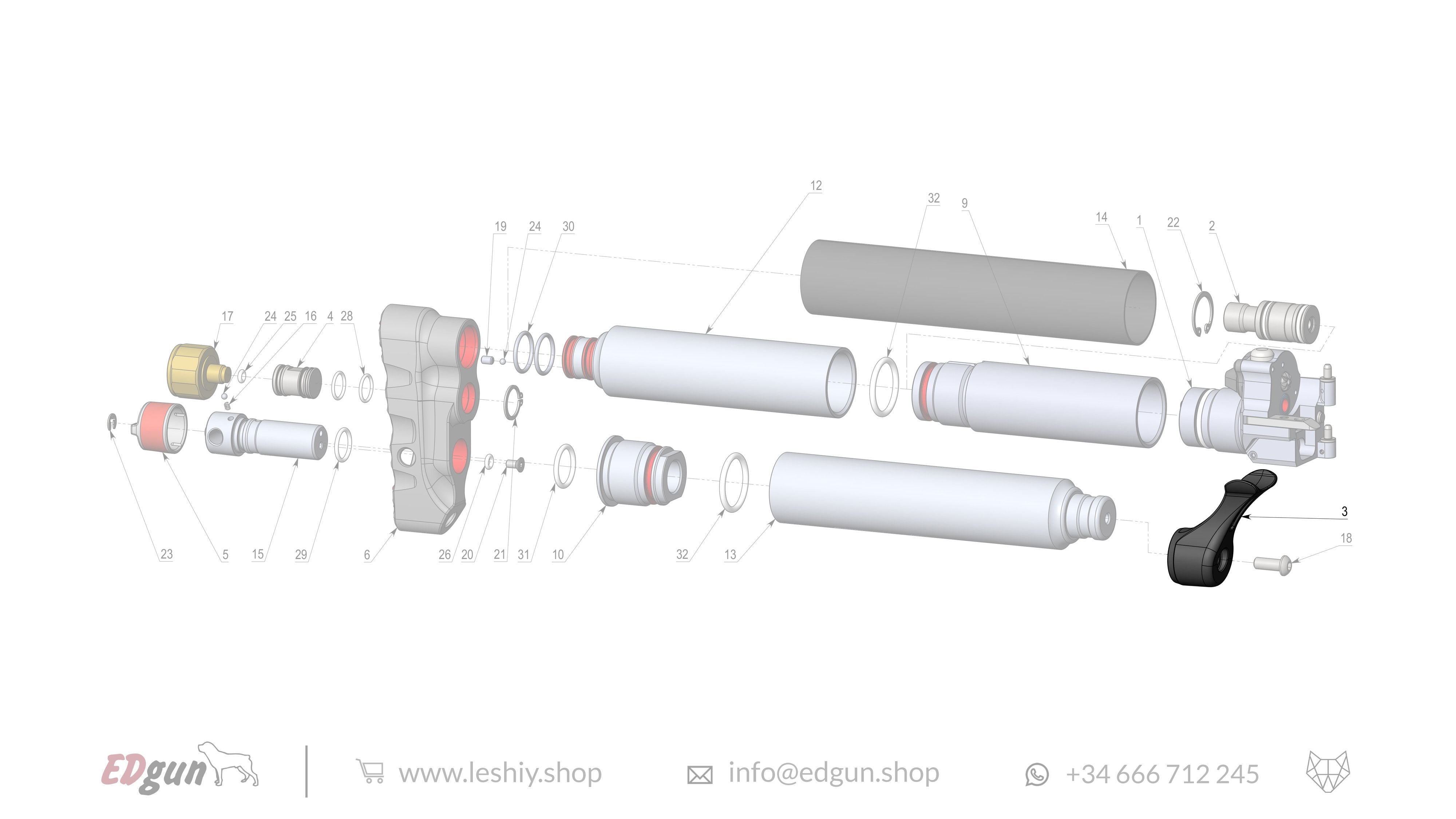

| 3- Bracket - LSA202014 (x1) | 20- Screw М4х8 А4 DIN7991 (x1) |

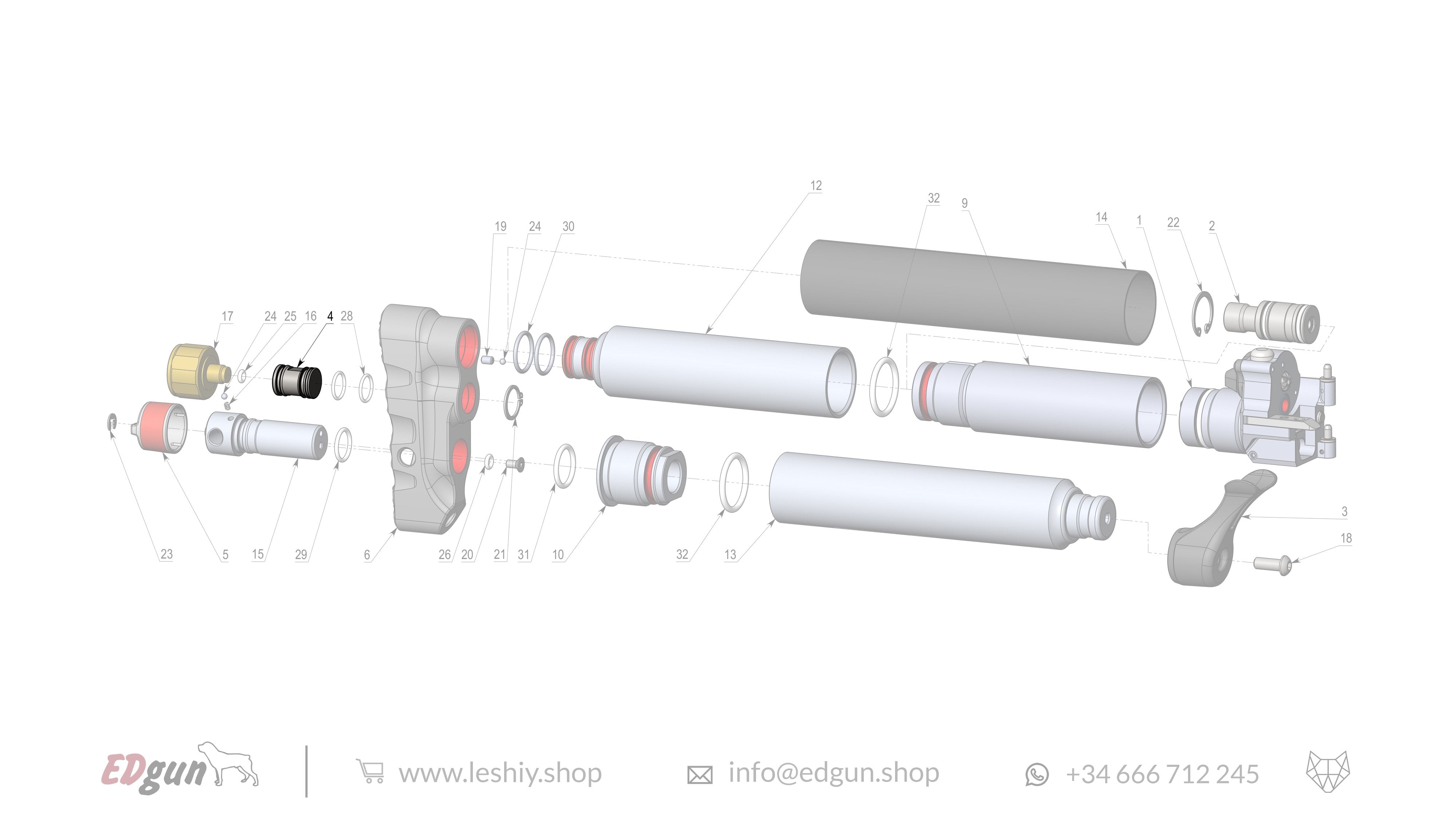

| 4- Plug - LSA212007 (x1) | 21- Ring 16 DIN471 (x1) |
| 5- Cover - LSA212013 | 22- Ring 22 DIN472 (x1) |

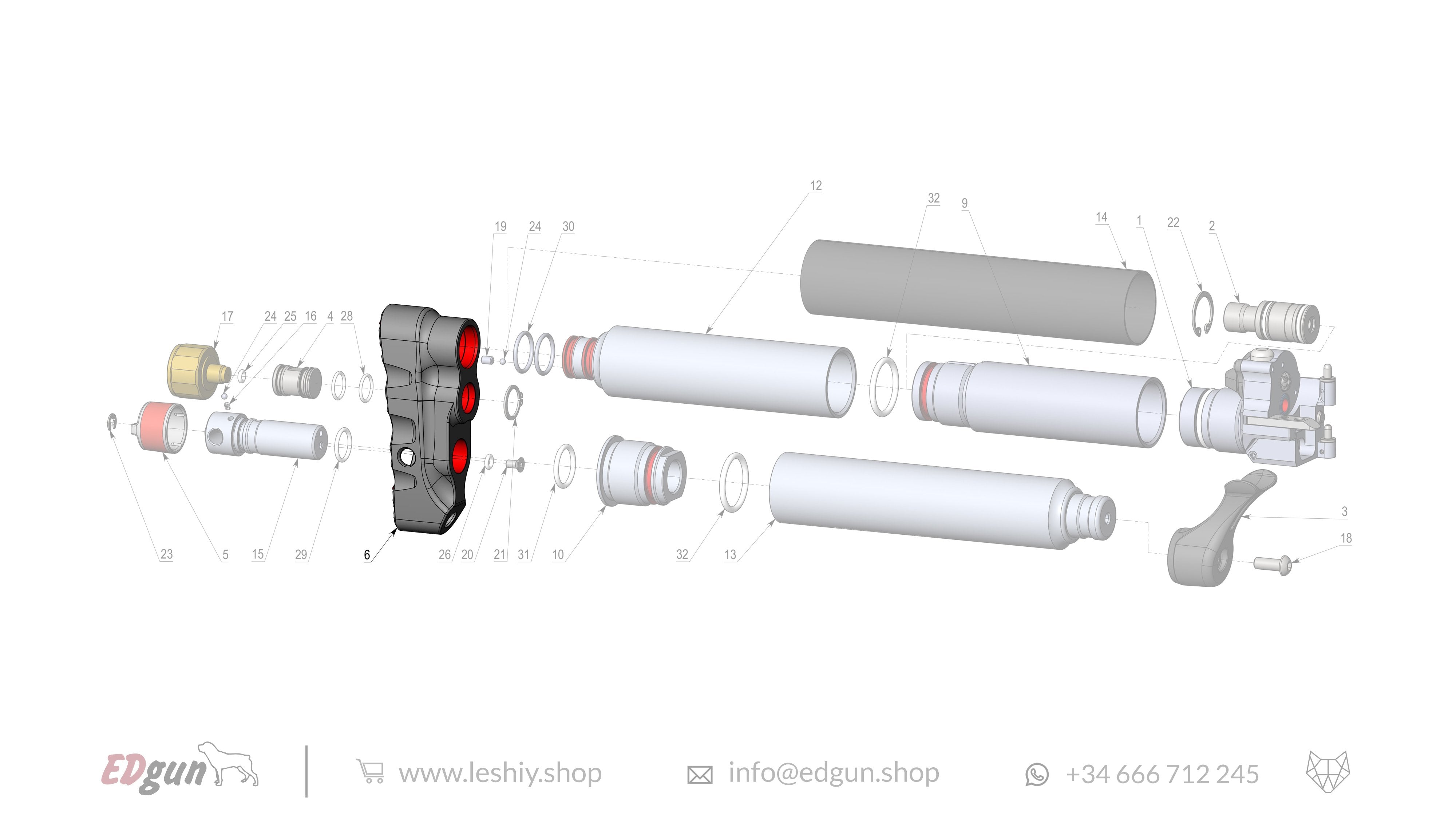

| 6- Buttpad - LSA216006 (x1) | 23- Washer 4 DIN6799 (x1) |

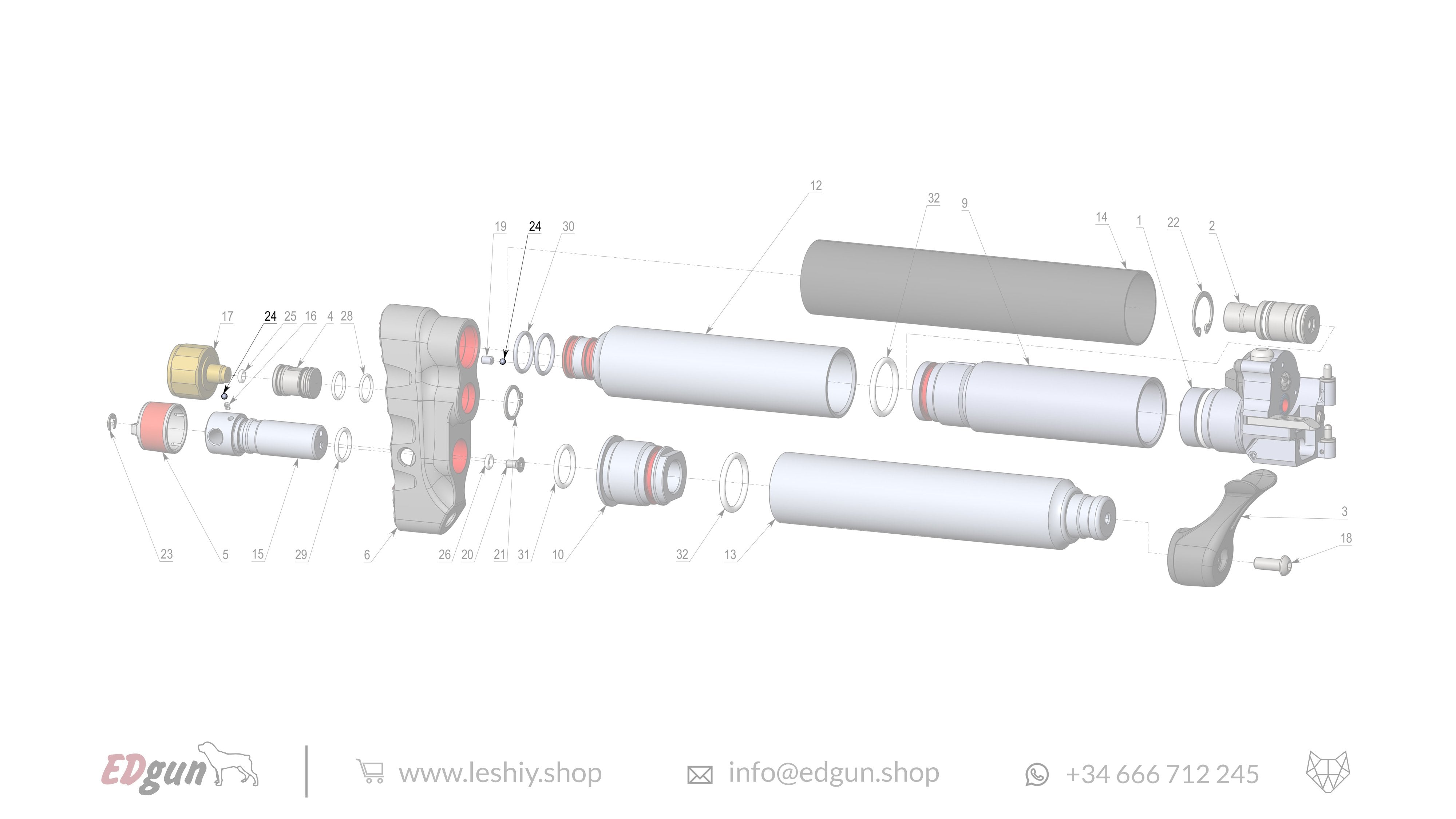

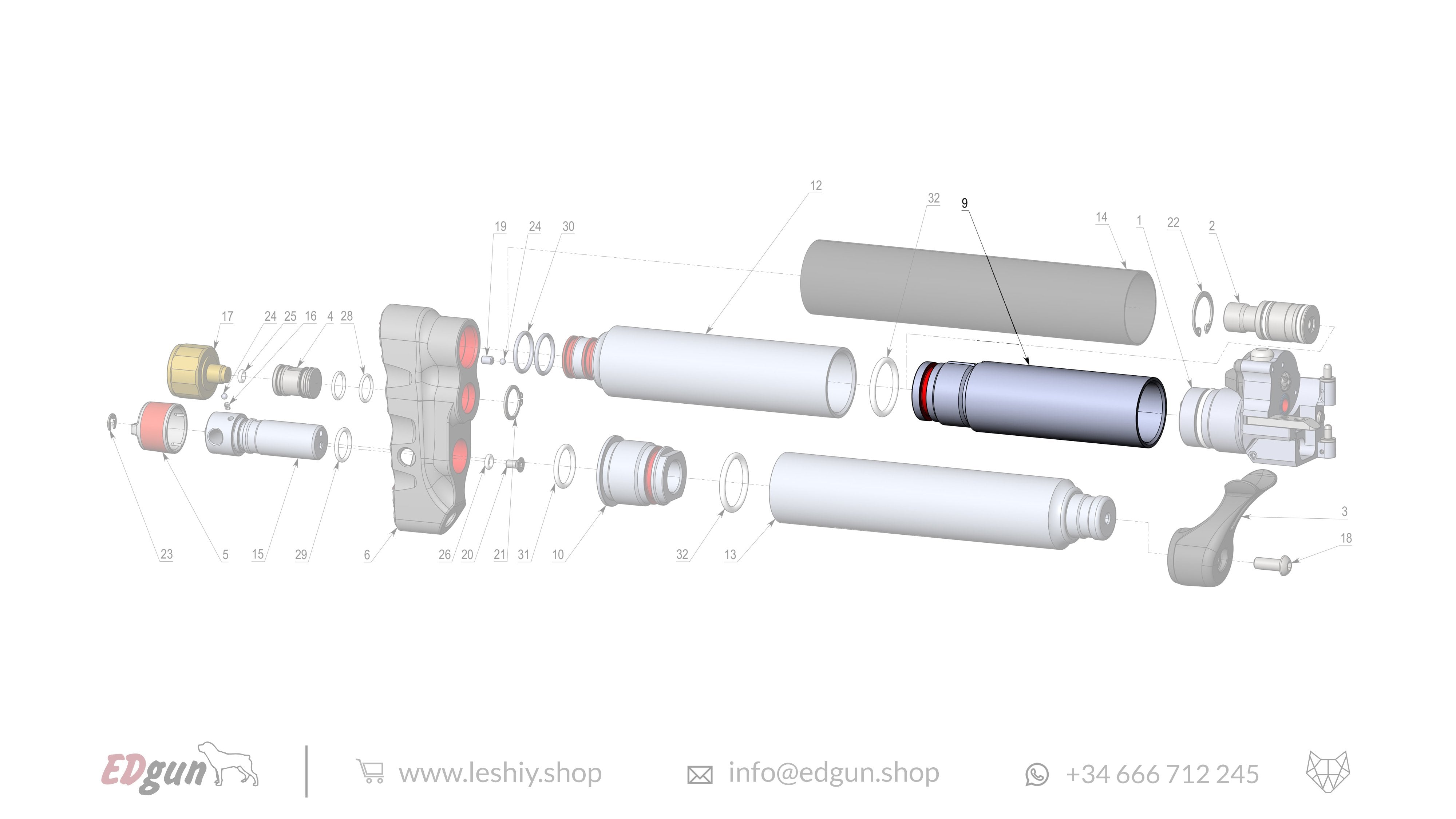

| 9- Plenum | 24- d3 Bola (x2) |

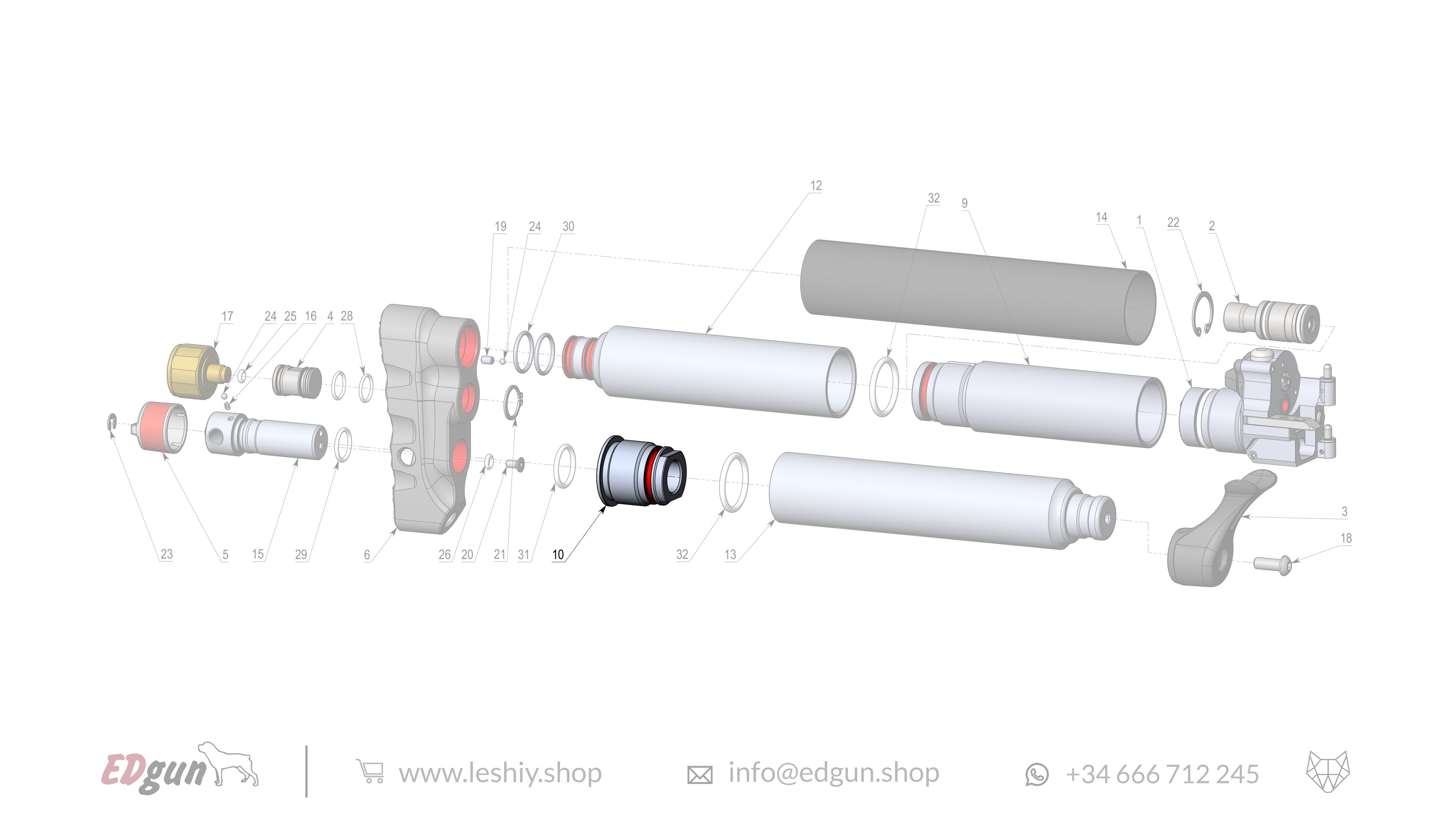

| 10- Plug - LSA222007 (x1) | 25- O-ring 70NBR 3х2 (x1) |

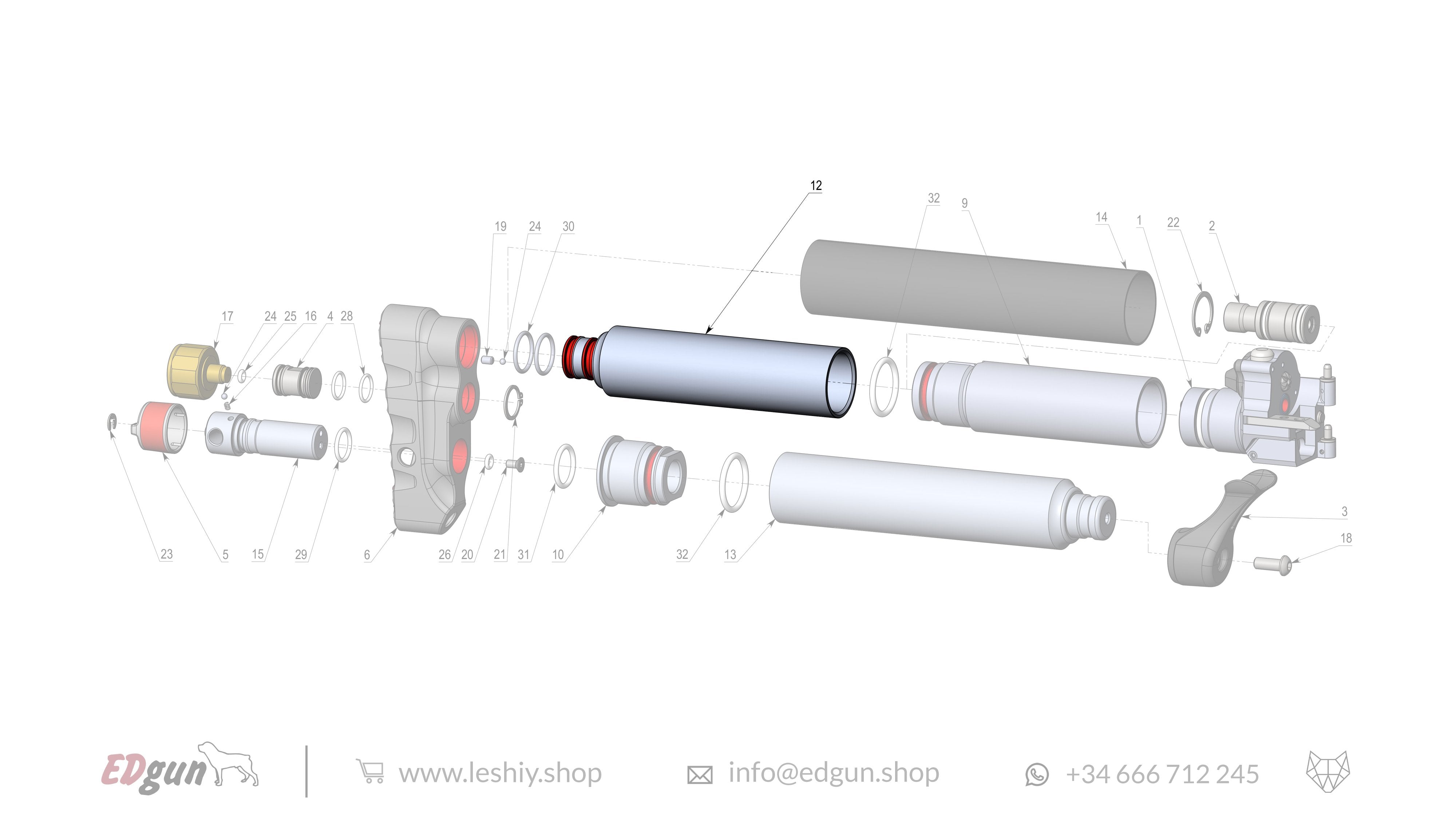

| 12- Butt / reservoir - LSA222011-01 | 26- O-ring 70NBR 4х2 (x1) |

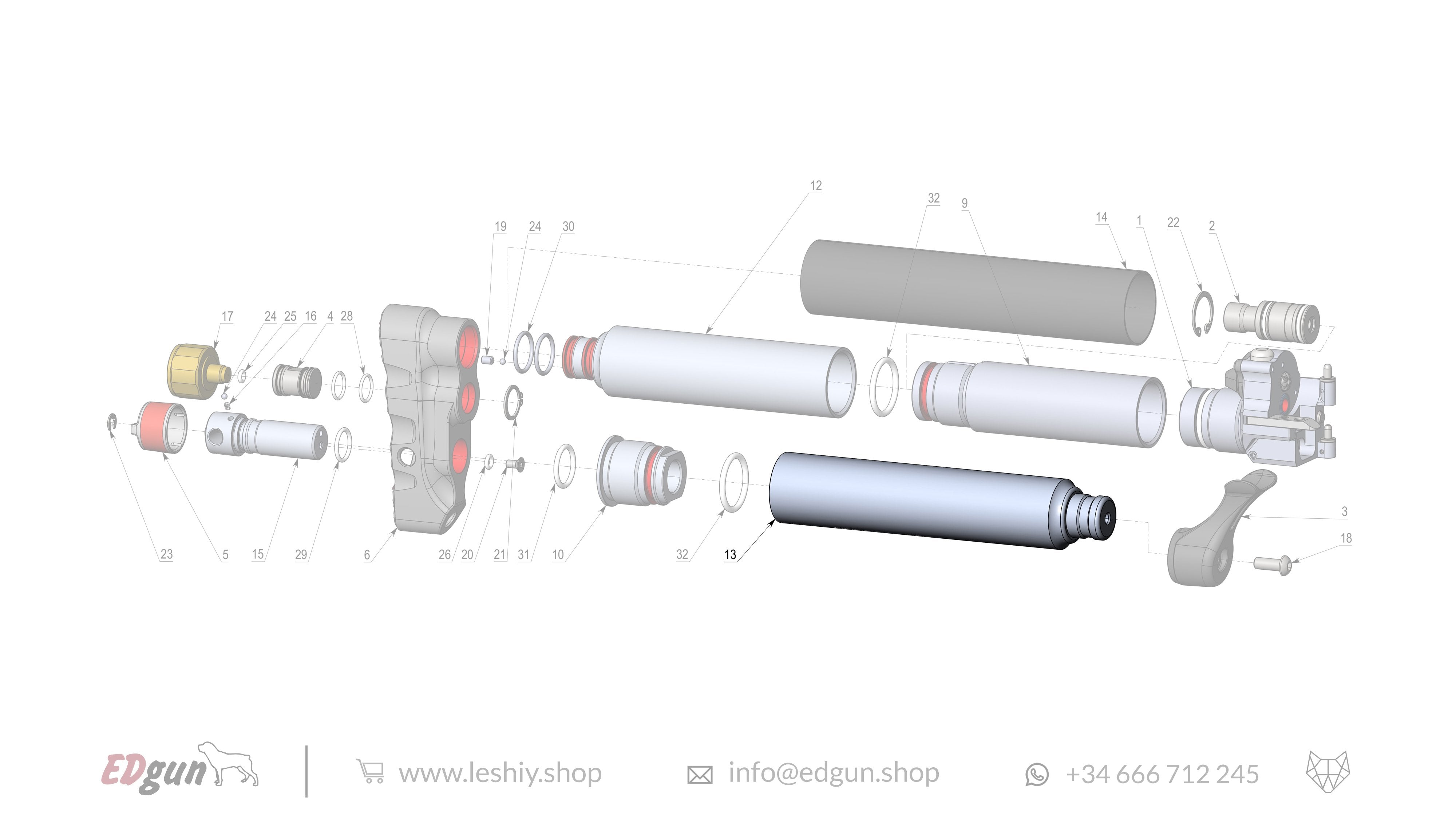

| 13- Reservori - LSA222011-00 (x1) | 28- O-ring 70NBR 12х1,5 (x2) |

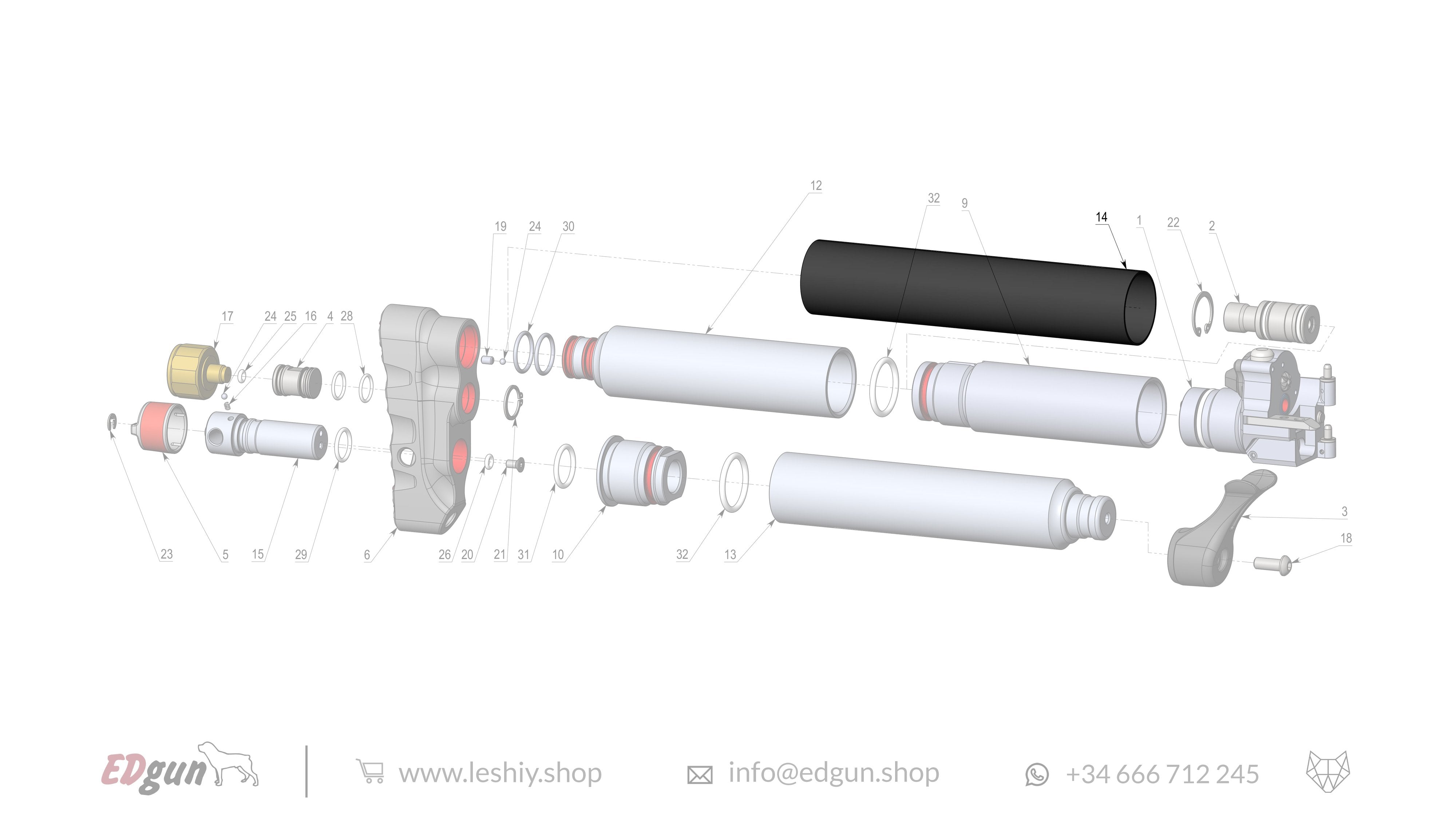

| 14- Neoprene Cover - LSA222016 (x1) | 29- O-ring 70NBR 14х2 (x1) |

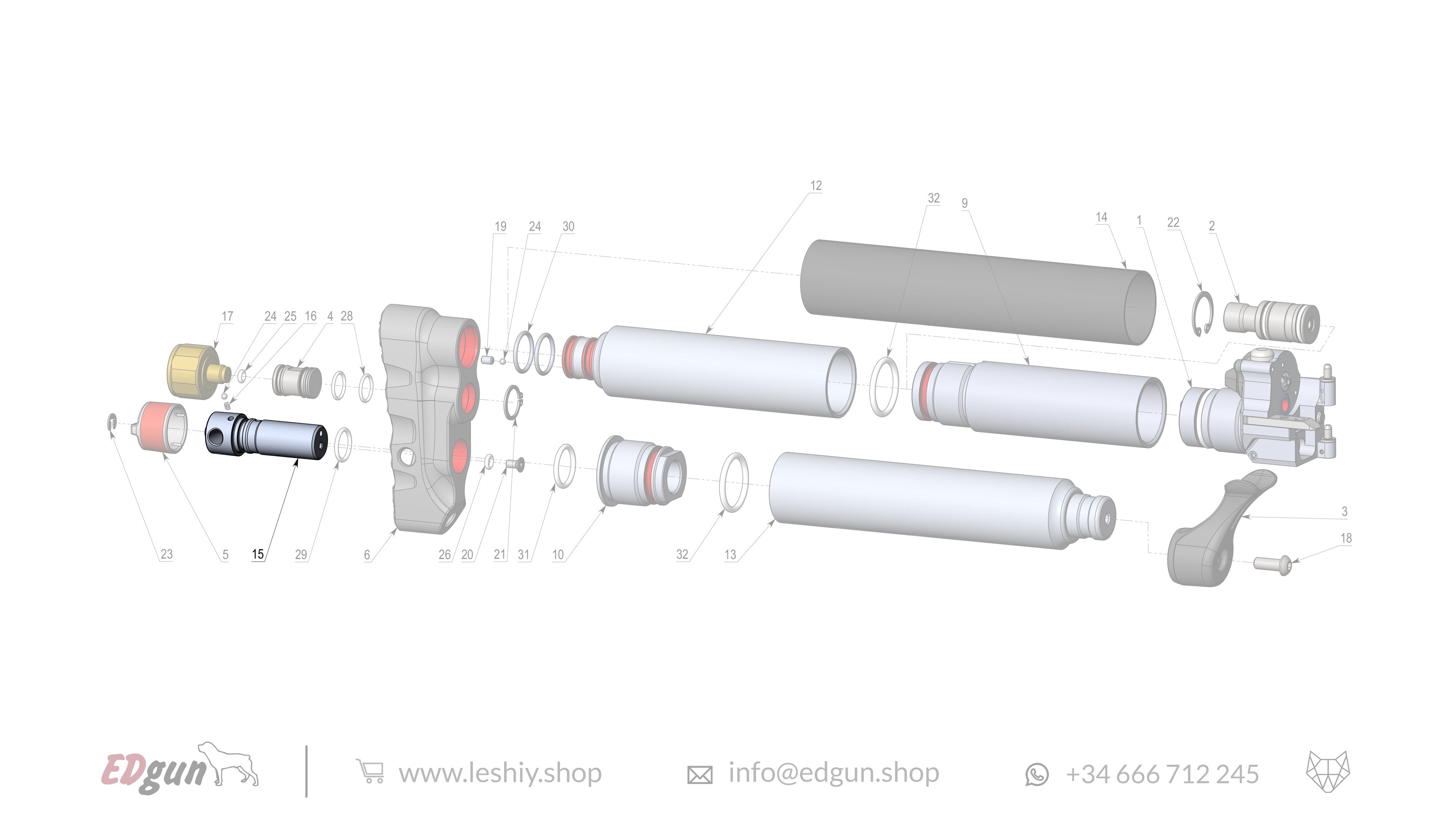

| 15- Fitting - LSA228004 (x1) | 30- O-ring 70NBR 18х2 (x2) |
| 16- Spring 4,5х1,8х3х0,4 (x1) | 31- O-ring 70NBR 18х2,5 (x1) |

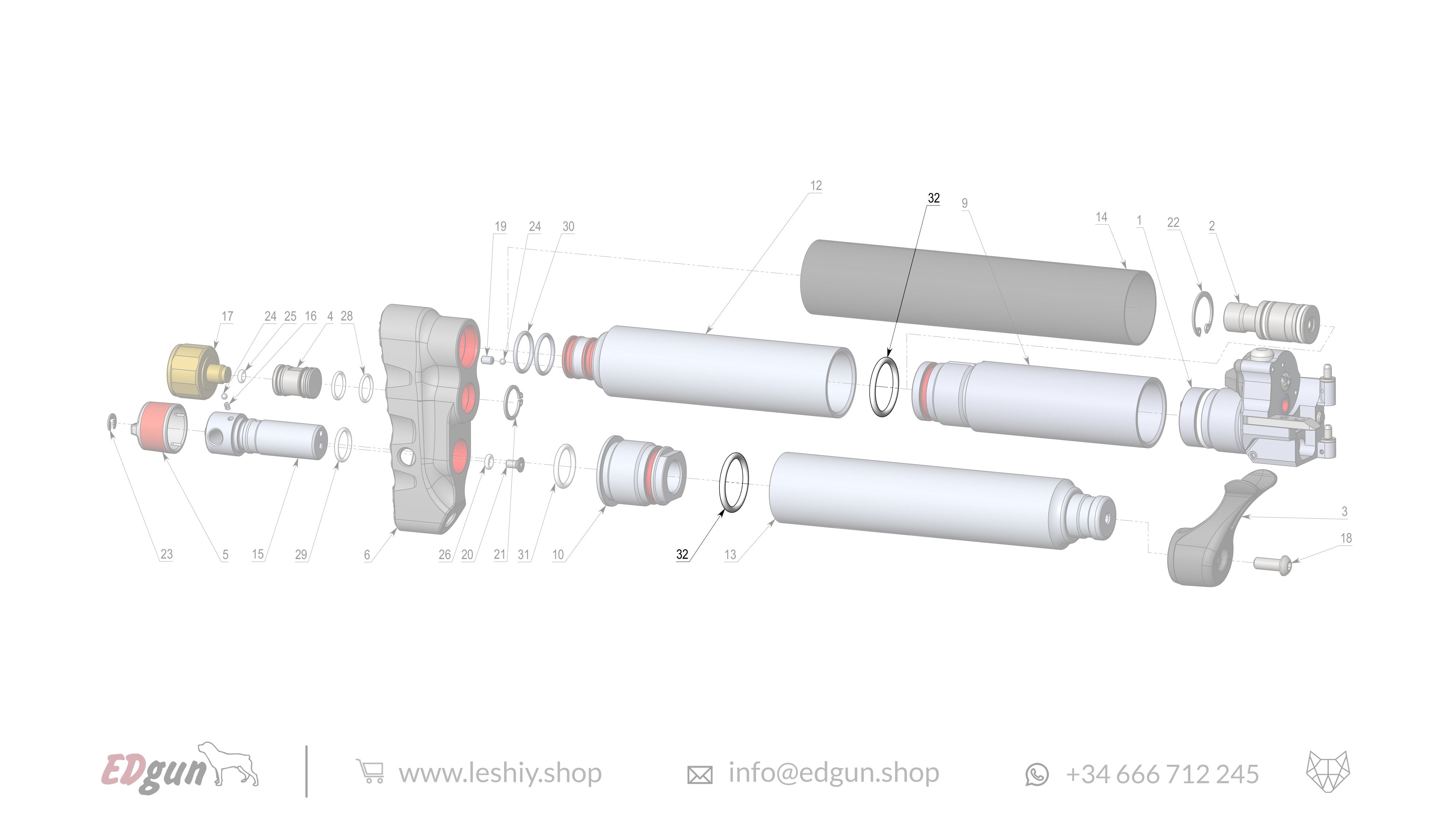

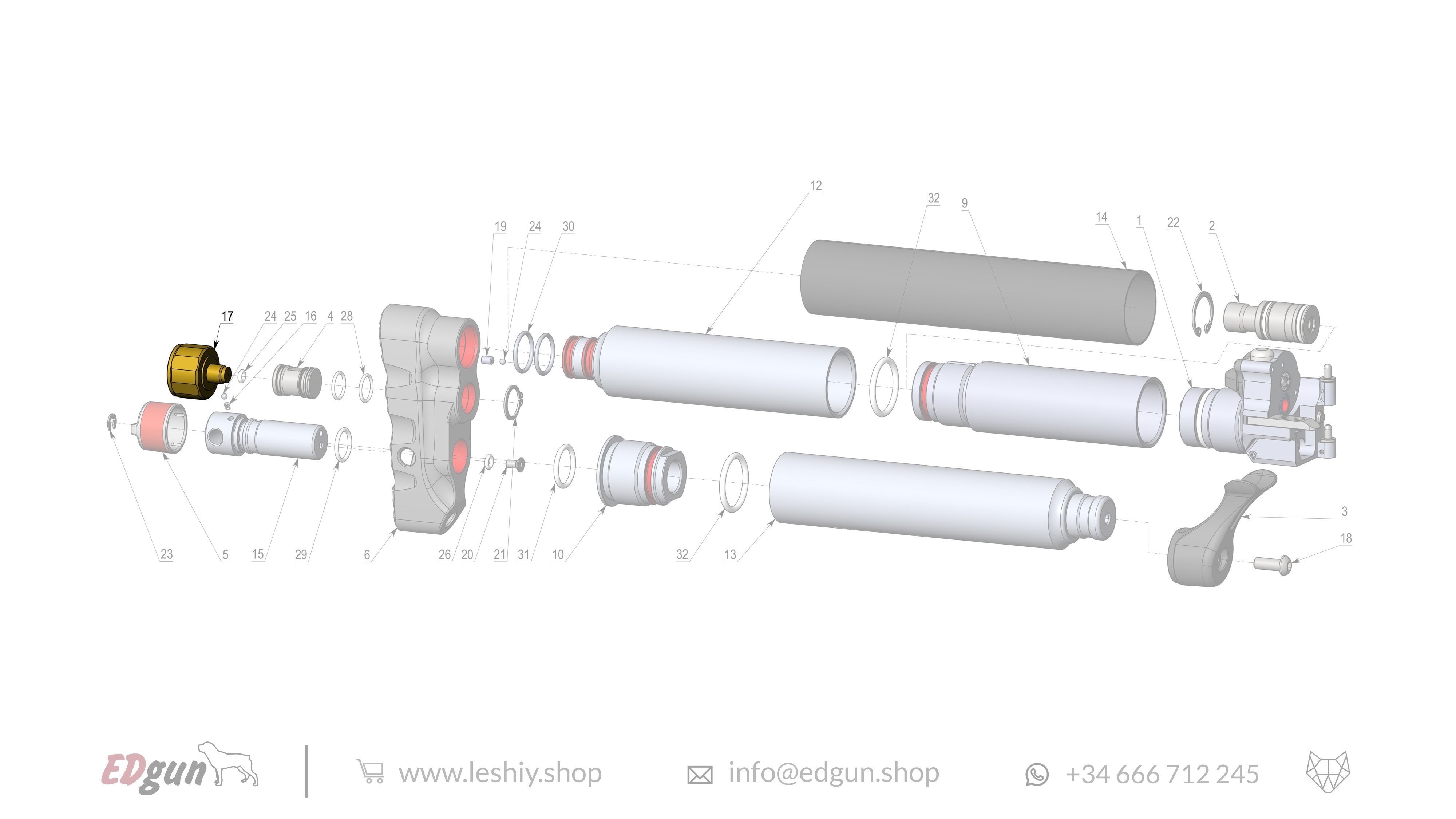

| 17- EDgun Air Gauge | 32- O-ring 70NBR 25х3 (x2) |
